Toyota Prius V

2012-03 → 2021-08 · chassis ZVW40 · catalogue 225310 · General

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

14 part groups · 3 illustrations

Illustrations

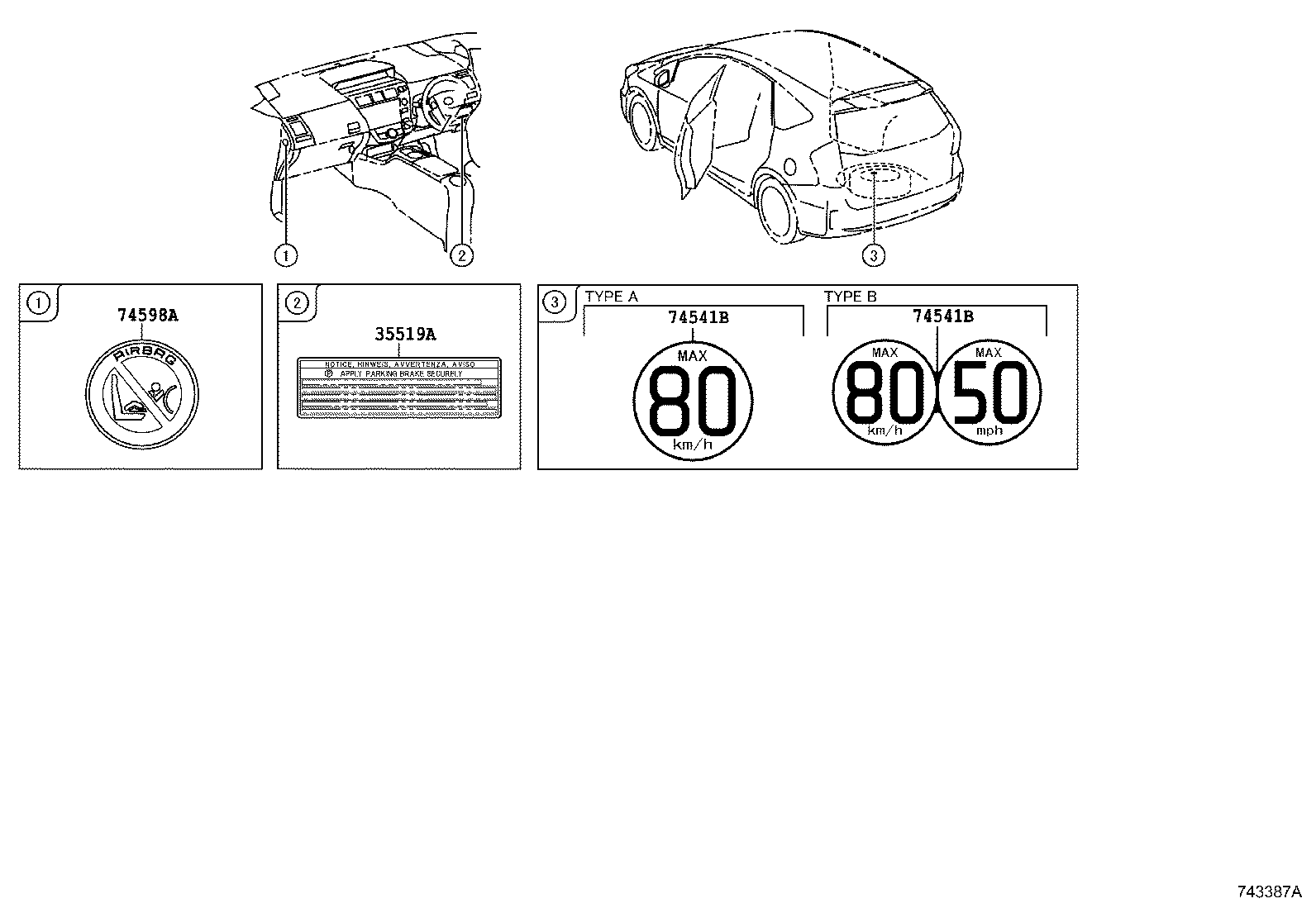

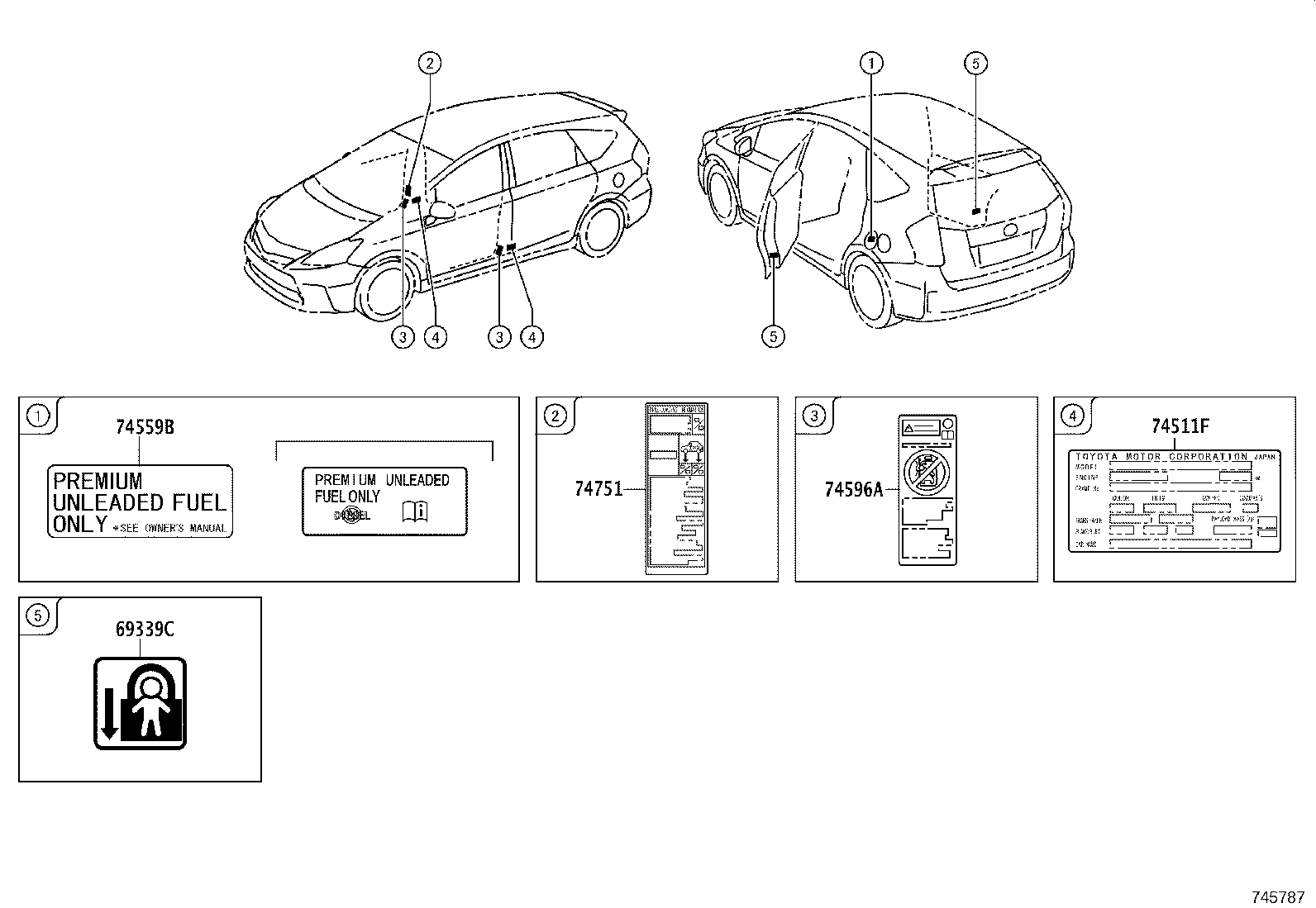

Figure 743386C 743386C 2012-03 → — Figure 745787 745787 2012-03 → — Figure 743387A 743387A 2012-03 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
16793B Label, Cooling Fan Information
35519A Label, Automatic Transfer Infomation
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74541B Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
