Toyota Prius V

2012-03 → 2021-08 · chassis ZVW40 · catalogue 225310 · General

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

11 part groups · 2 illustrations

Illustrations

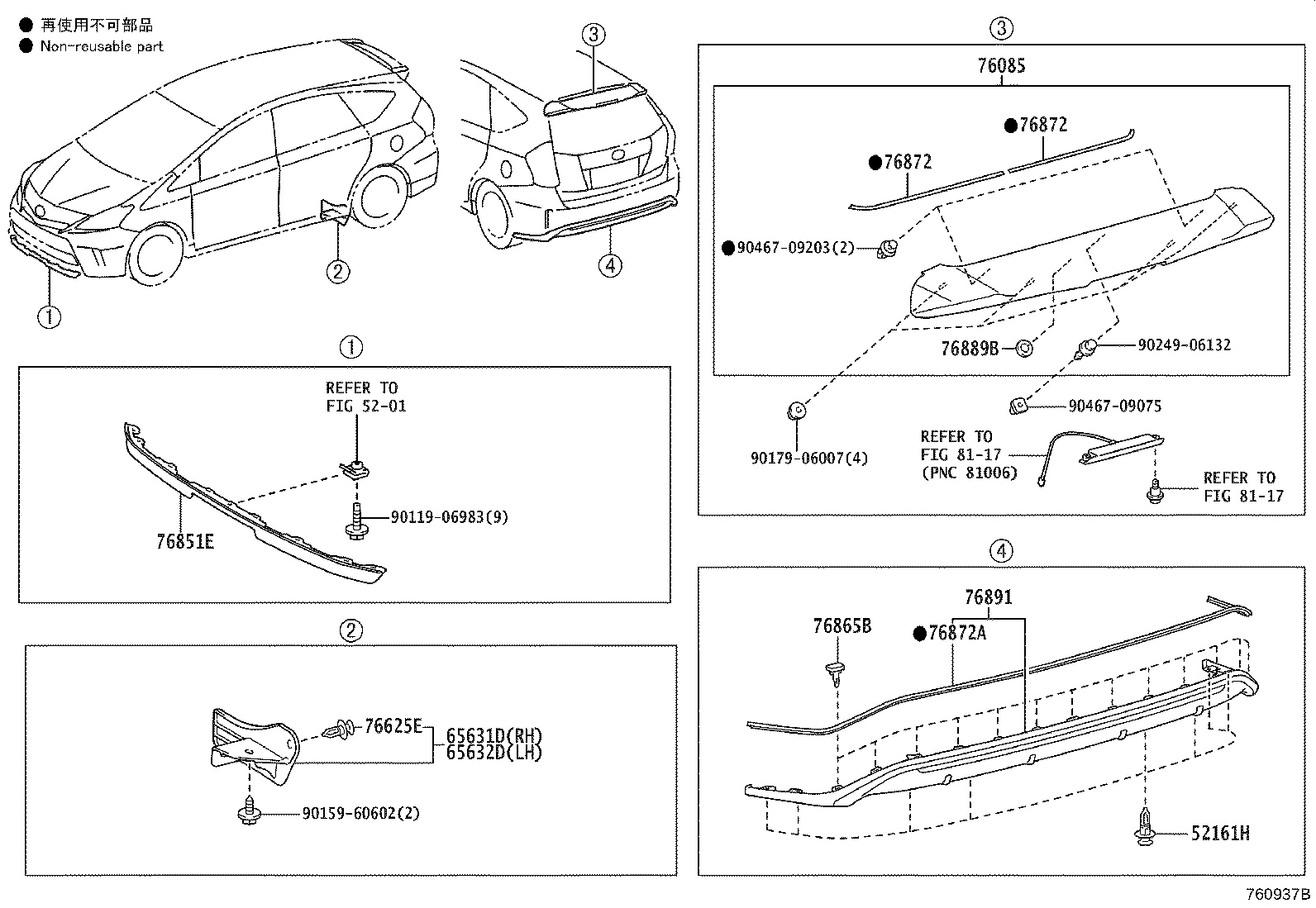

Figure 760840E 760840E 2012-03 → 2015-04 Figure 760937B 760937B 2015-04 → —

Part groups

PNCDescription
52161H Piece, Rear Bumper
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
76085 Spoiler Sub-assy, Rear
76625E Clip
76851E Spoiler, Front
76865B Retainer, Rear Spoiler
76872 Protector, Rear Spoiler, NO.1
76872A Protector, Rear Spoiler, NO.1
76889B Seal, Rear Spoiler, NO.1
76891 Spoiler, Rear NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
