Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · General

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

8 part groups · 3 illustrations

Illustrations

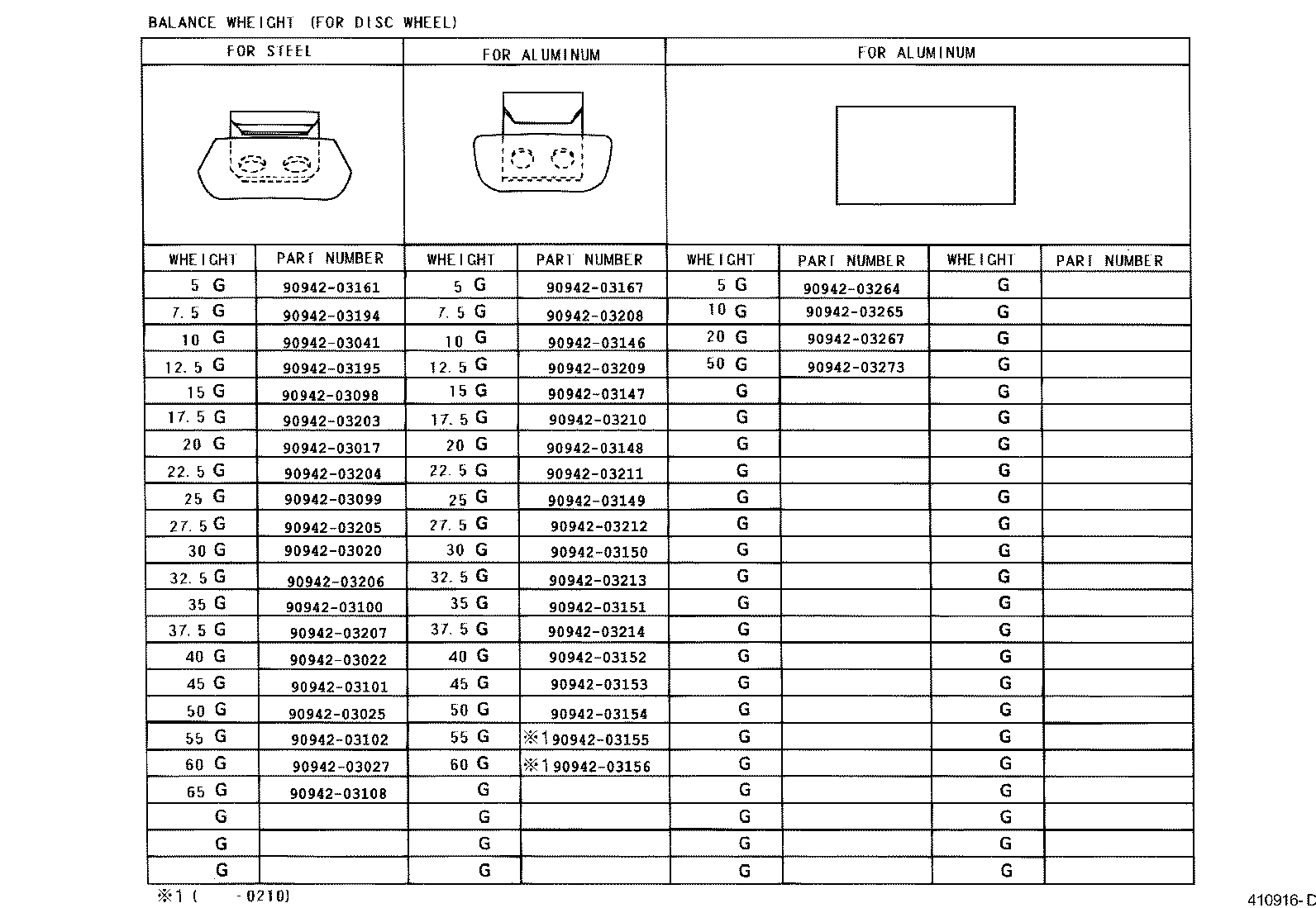

Figure 410892D 410892D 1999-01 → — Figure 410893A 410893A 1999-01 → — Figure 410916D 410916D 1999-01 → —

Part groups

PNCDescription
42601 Wheel, Disc
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)
42603 Ornament Sub-assy, Wheel Hub
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
42652 Tire
42652A Tire (FOR SPARE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
