Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · General

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 3 illustrations

Illustrations

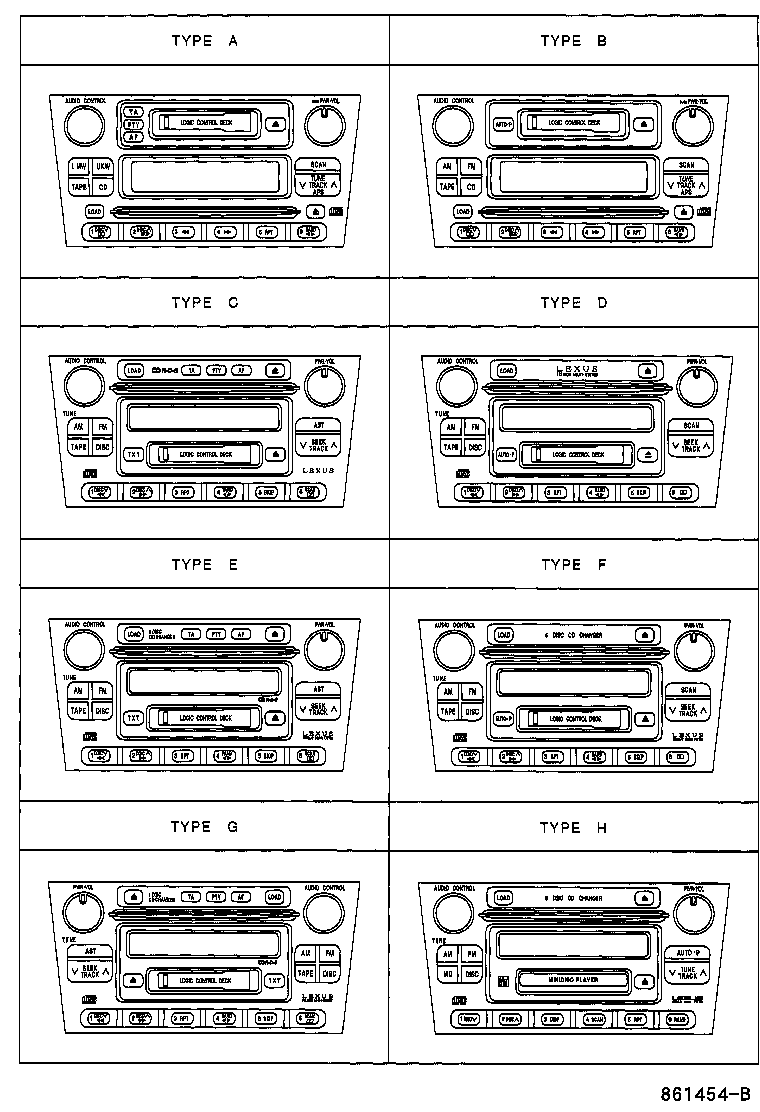

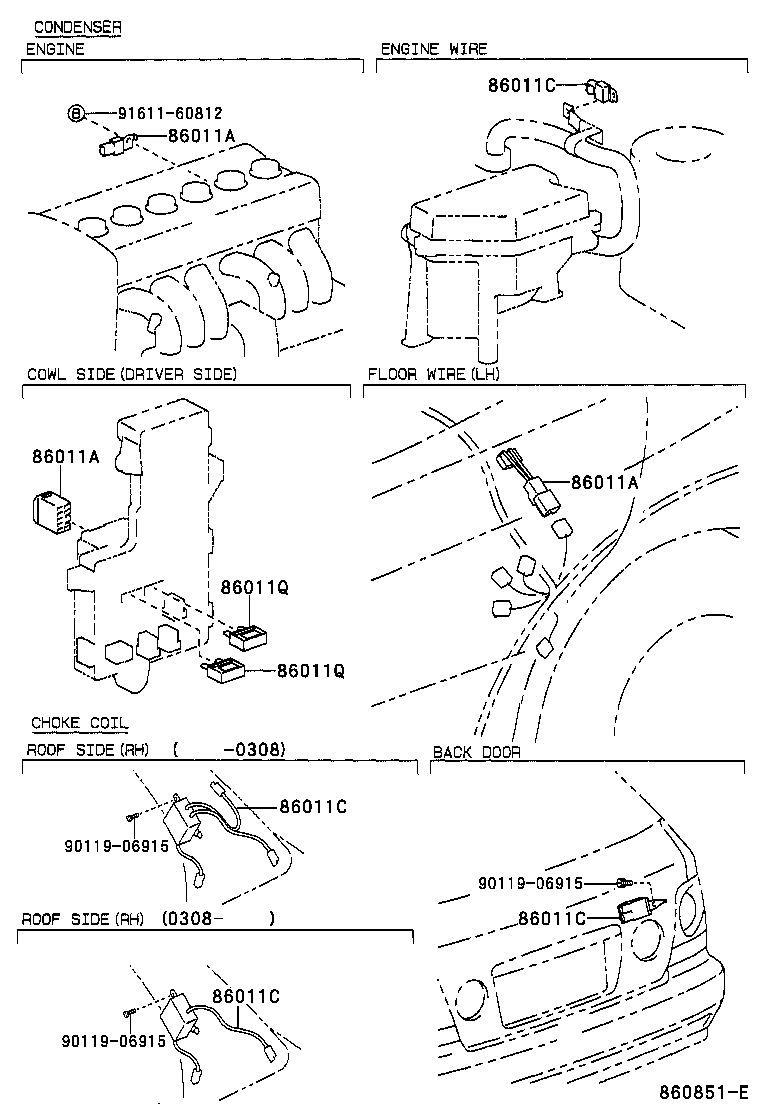

Figure 860850F 860850F 1999-01 → — Figure 861454B 861454B 1999-01 → — Figure 860851E 860851E 1999-01 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
