Toyota Lexus IS250/300

2006-04 → 2013-04 · chassis GSE2# · catalogue 242320 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 10 illustrations

Illustrations

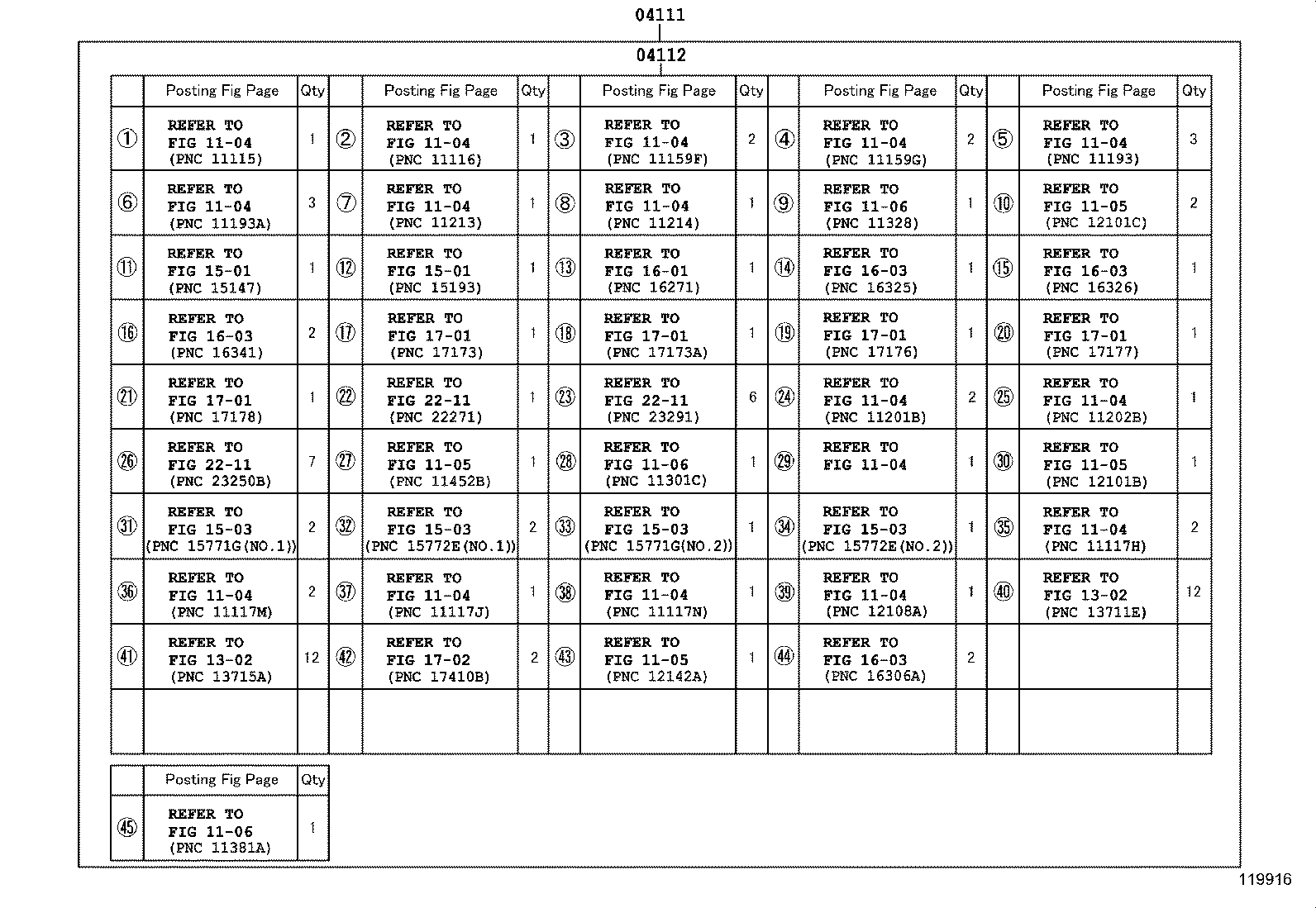

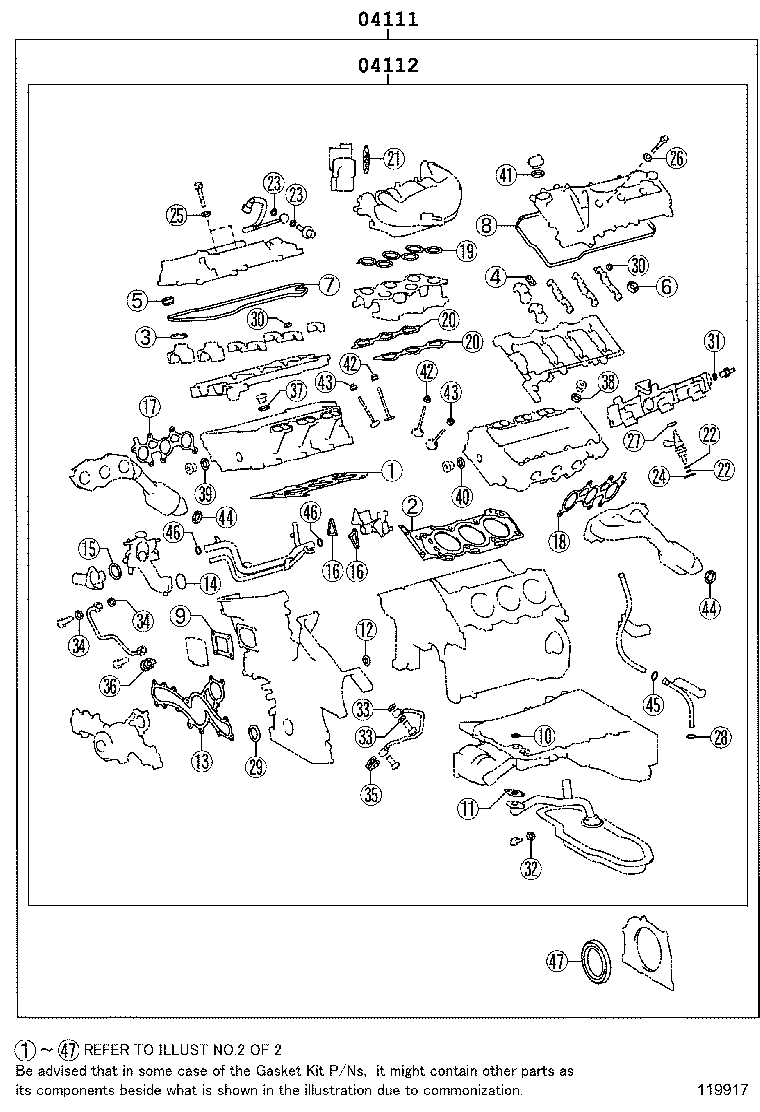

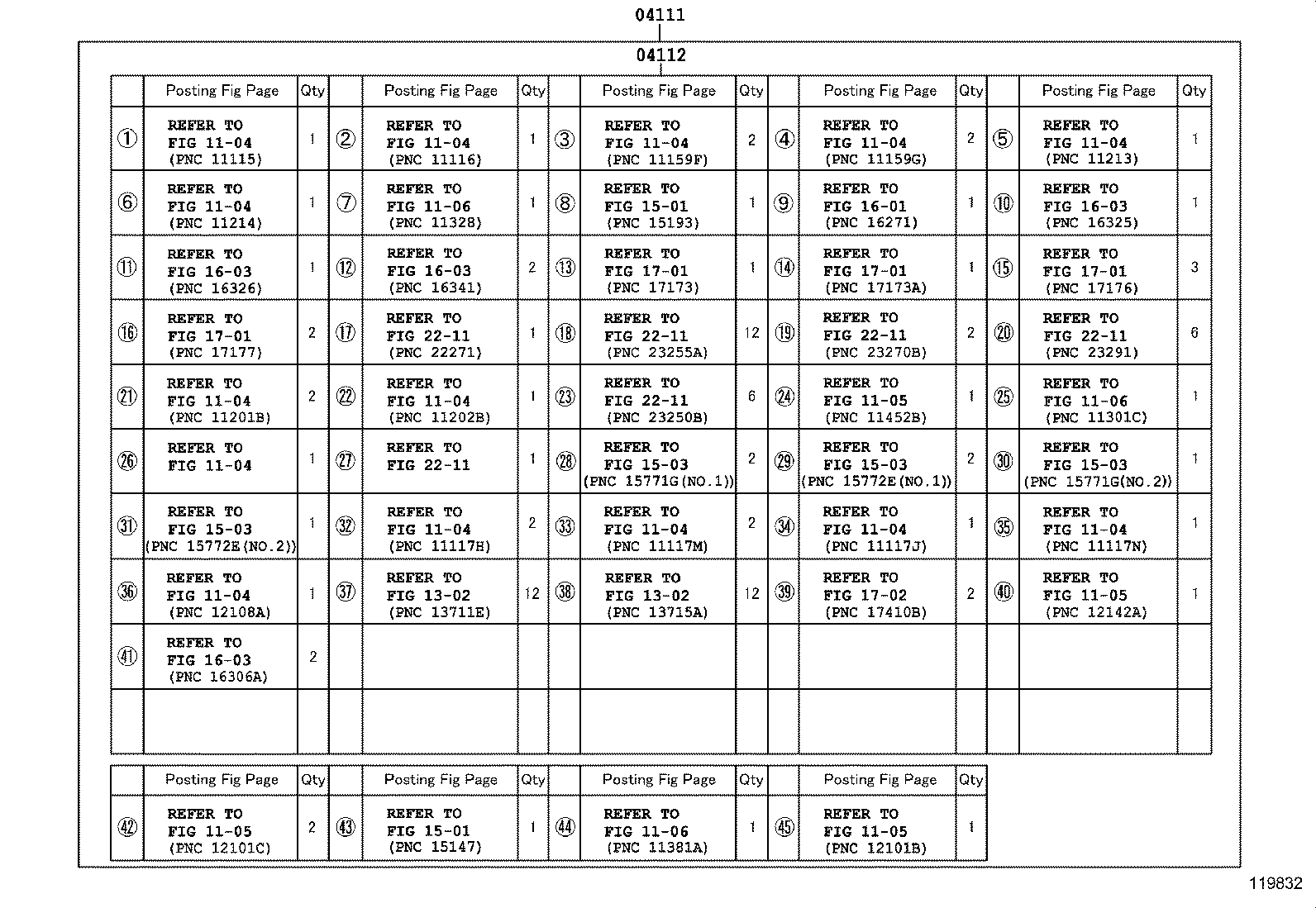

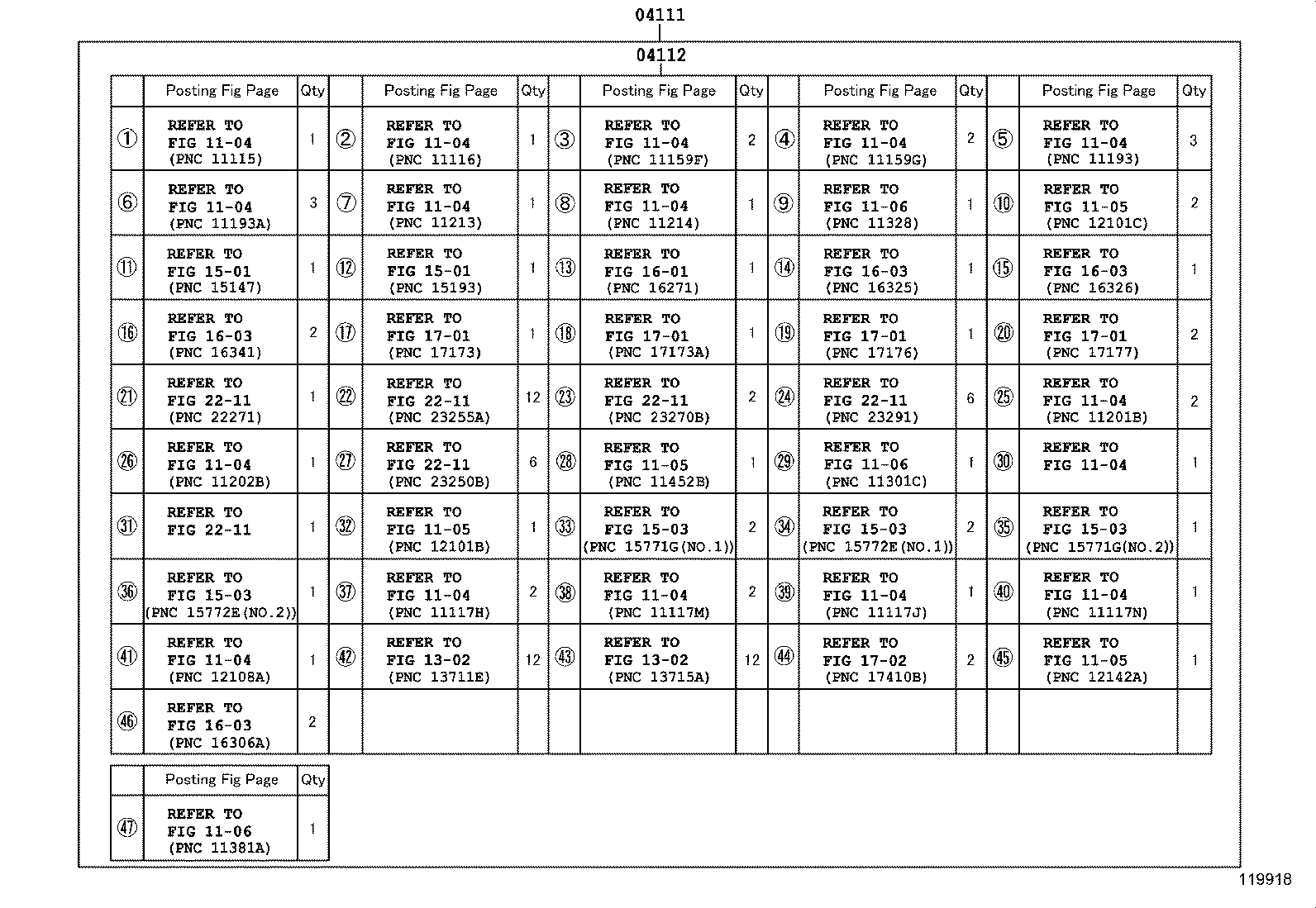

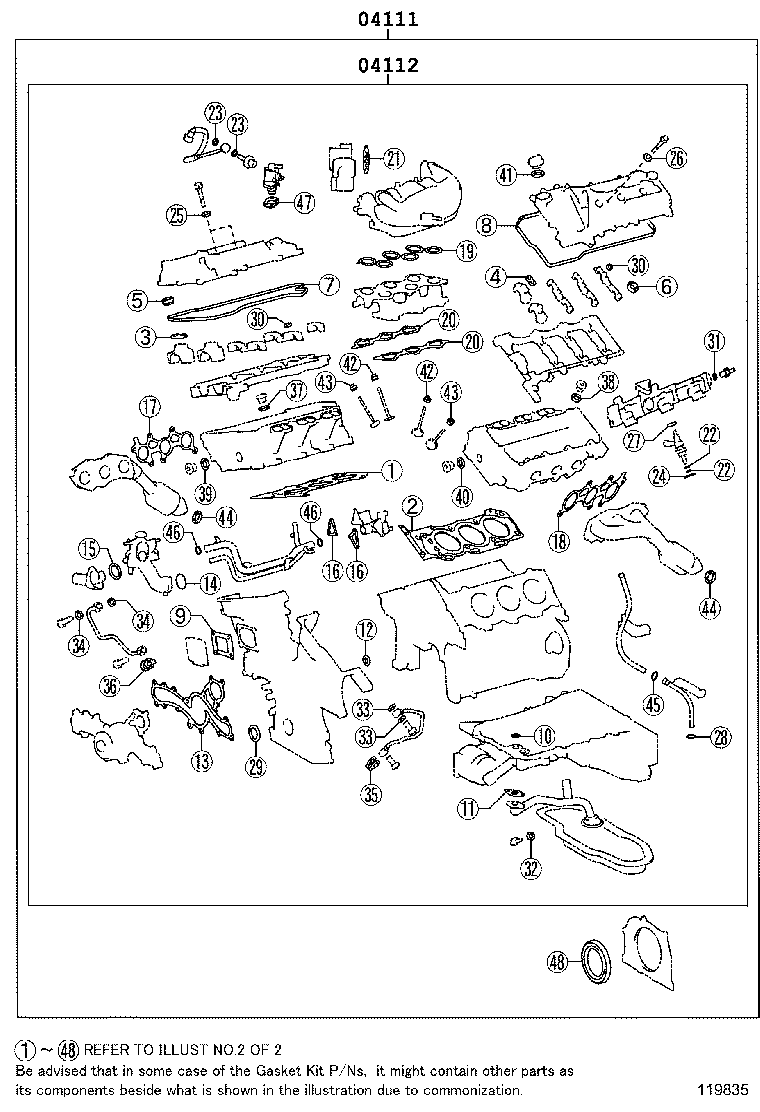

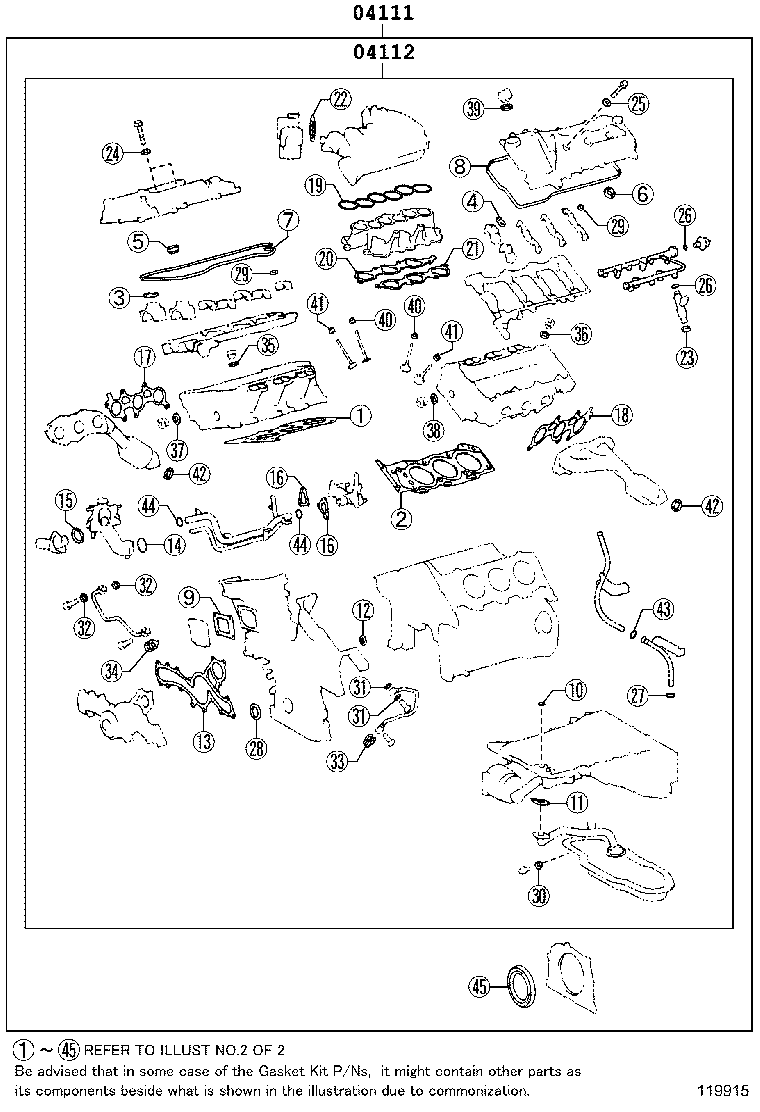

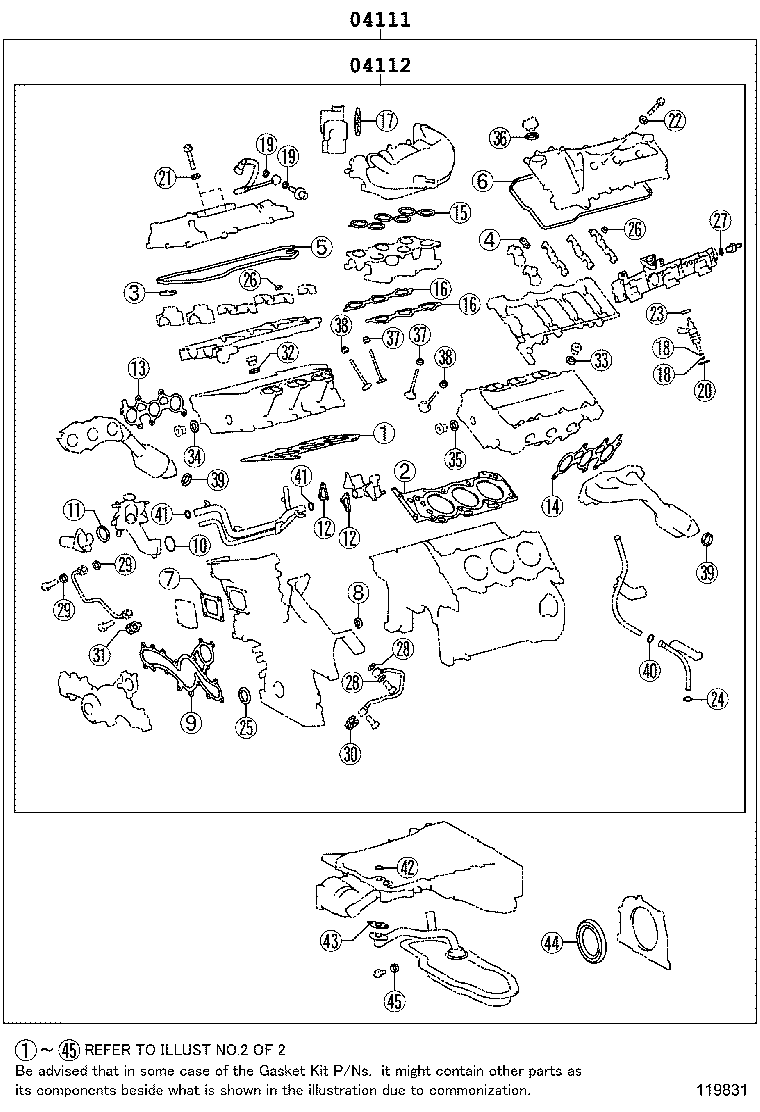

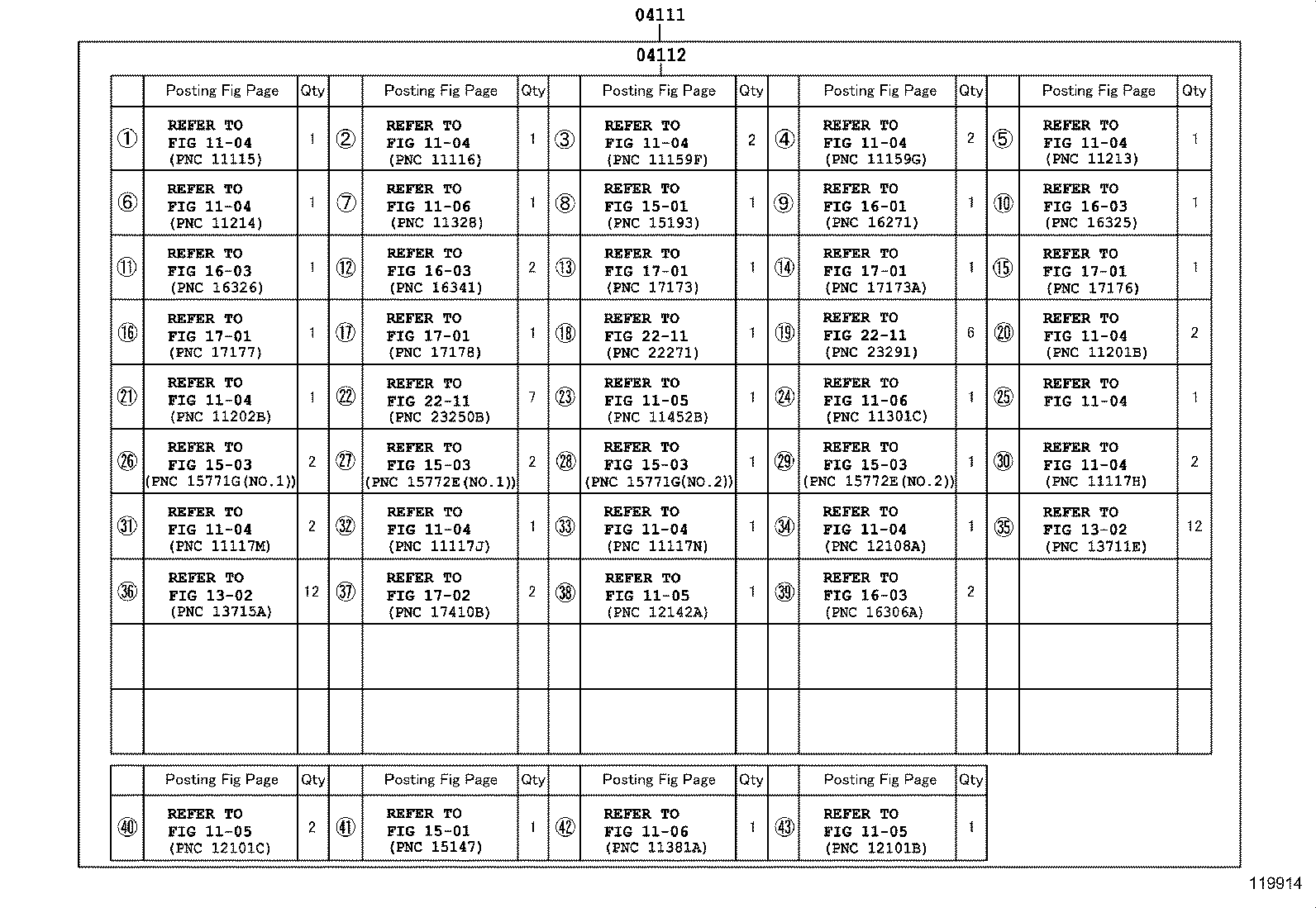

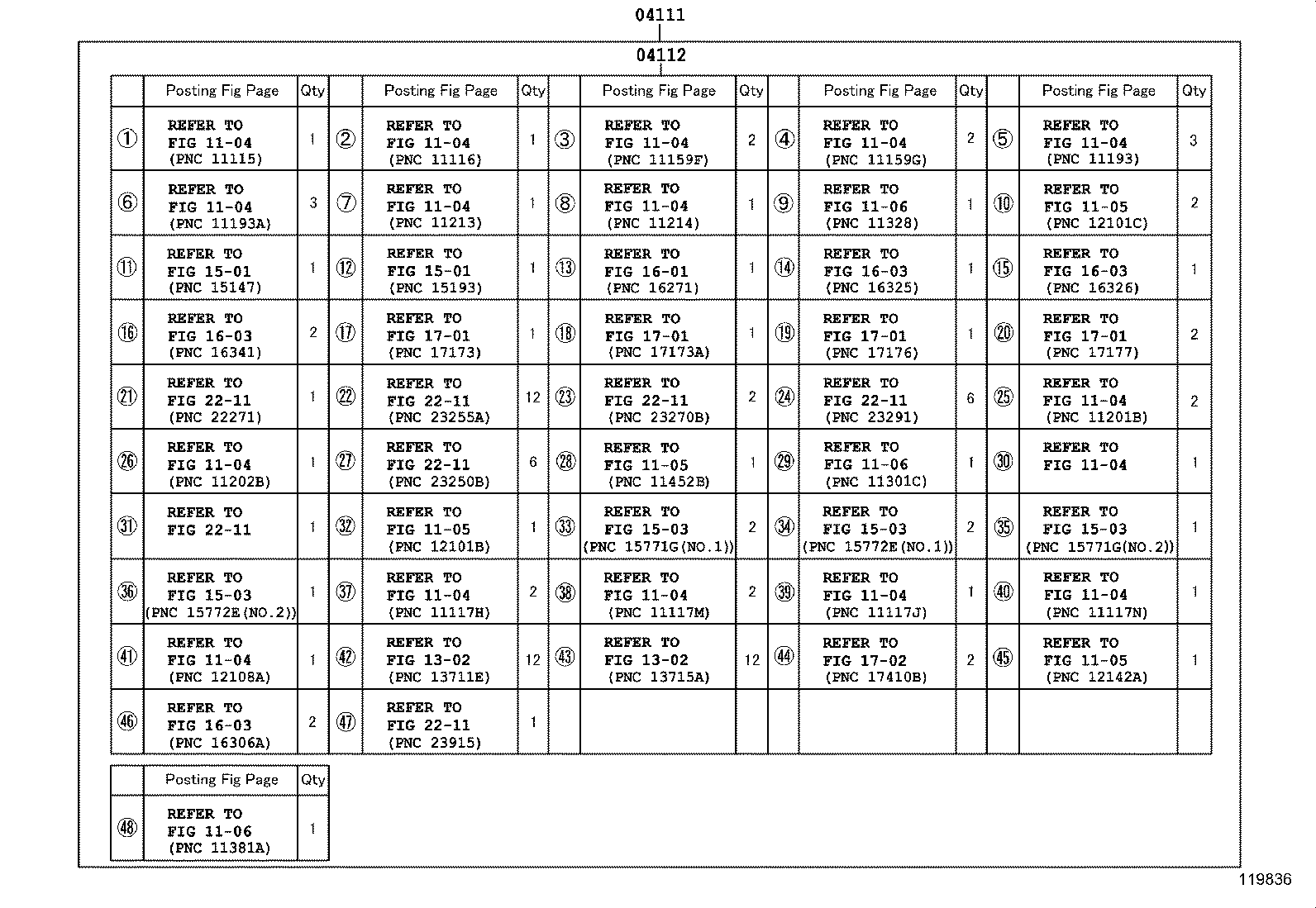

Figure 119913 119913 2006-04 → 2011-08 Figure 119914 119914 2006-04 → 2011-08 Figure 119915 119915 2011-08 → — Figure 119916 119916 2011-08 → — Figure 119831 119831 2010-08 → 2011-08 Figure 119832 119832 2010-08 → 2011-08 Figure 119917 119917 2011-08 → 2011-11 Figure 119918 119918 2011-08 → 2011-11 Figure 119835 119835 2011-10 → — Figure 119836 119836 2011-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
