Toyota Lexus IS250/300

2006-04 → 2013-04 · chassis GSE2# · catalogue 242320 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

21 part groups · 3 illustrations

Illustrations

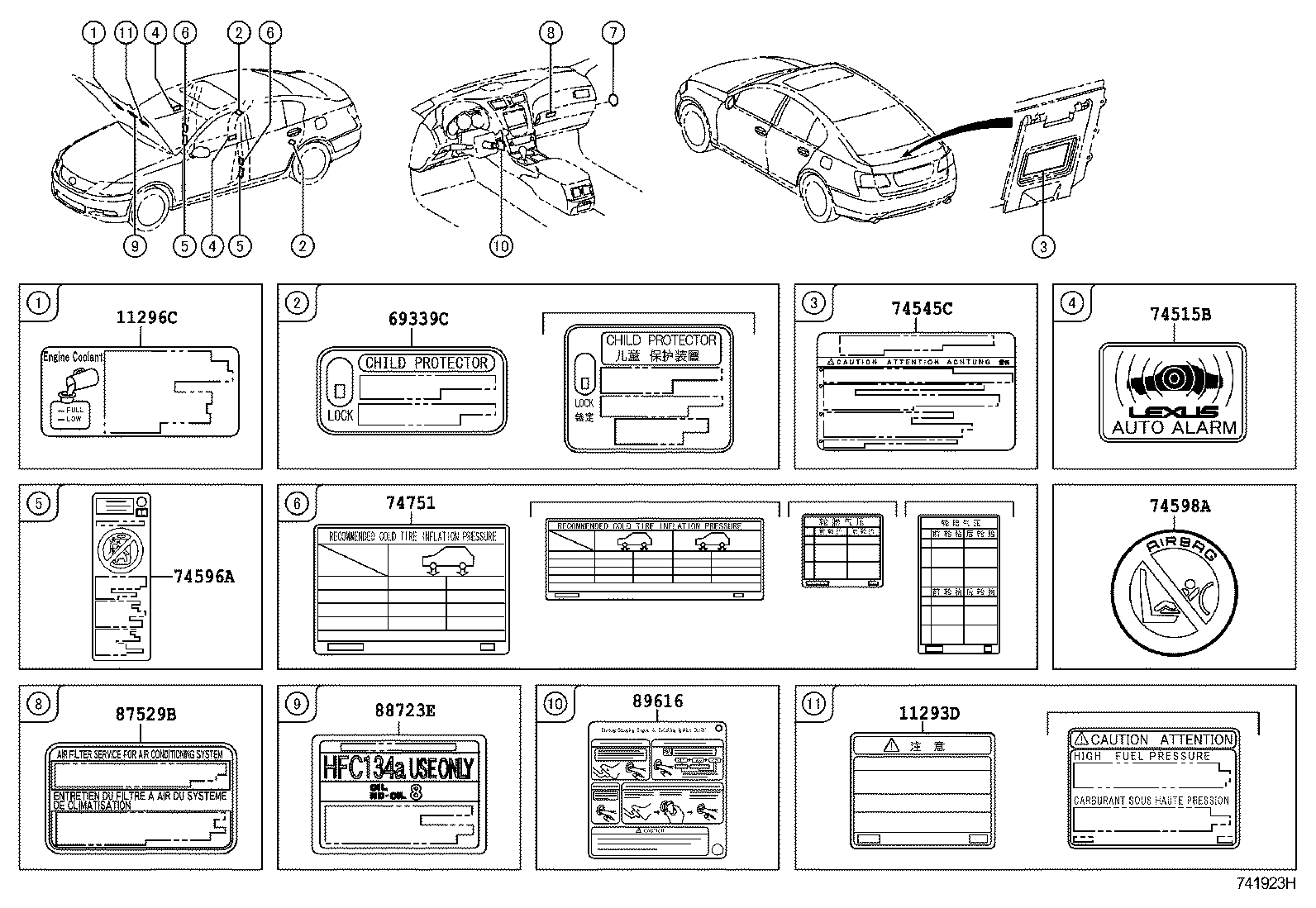

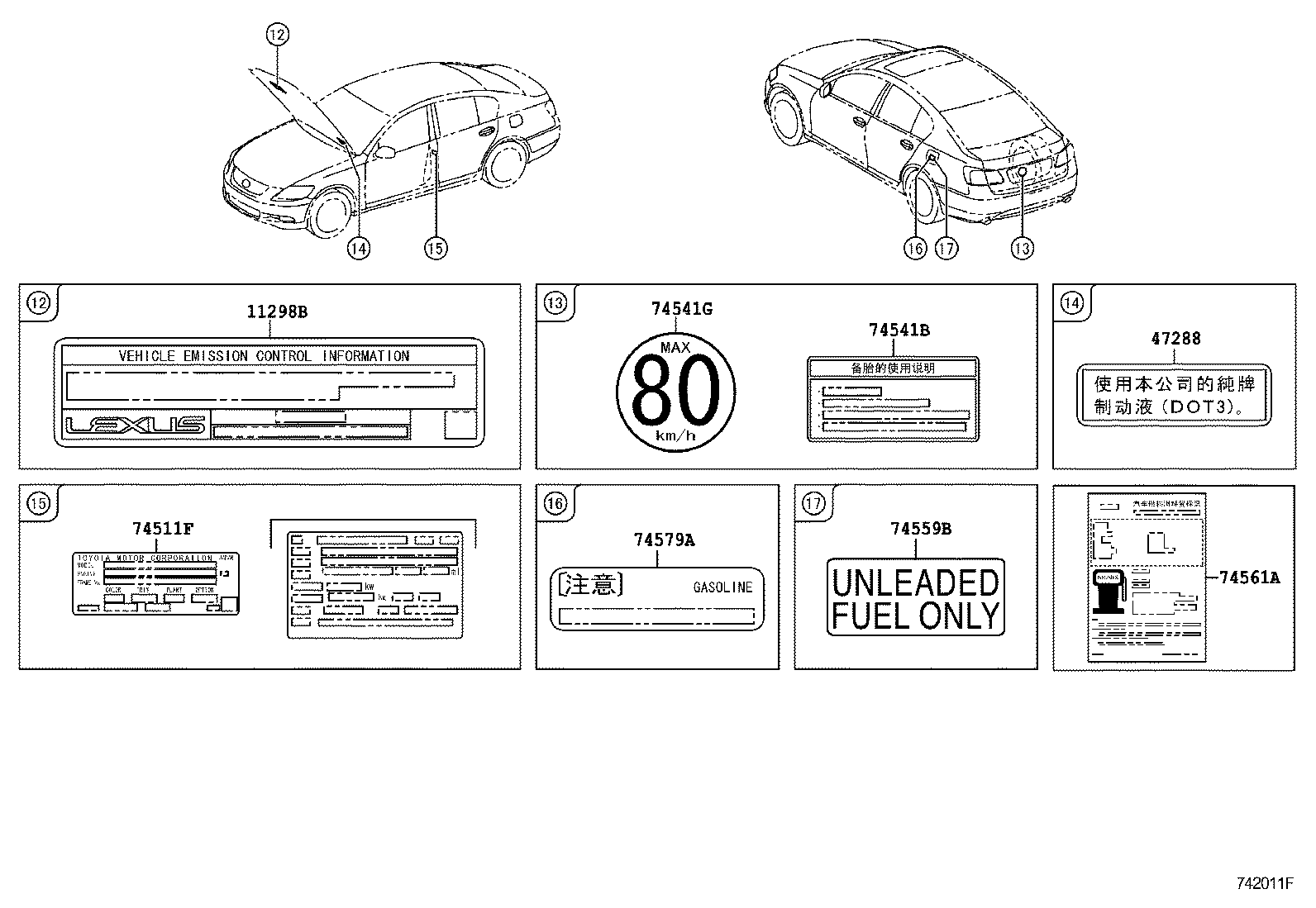

Figure 745972 745972 2006-04 → — Figure 741923H 741923H 2006-04 → — Figure 742011F 742011F 2006-04 → —

Part groups

PNCDescription
11291B Plate, Engine Name
11293D Label, Engine Caution
11296C Label, Engine Service Information
11298B Label, Emission Control Information
16793E Label, Cooling Fan Caution
47288 Label, Brake Fluid Notice
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515B Plate, Theft Warning
74541B Plate, Compact Spare Tire Caution
74541G Plate, Safety Caution
74545C Label, Luggage Door
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74579A Label, Unleaded Fuel Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
