Toyota Lexus IS250/300
2006-04 → 2013-04 · chassis GSE2# · catalogue 242320 · General
Supported model
Data version 2014-01

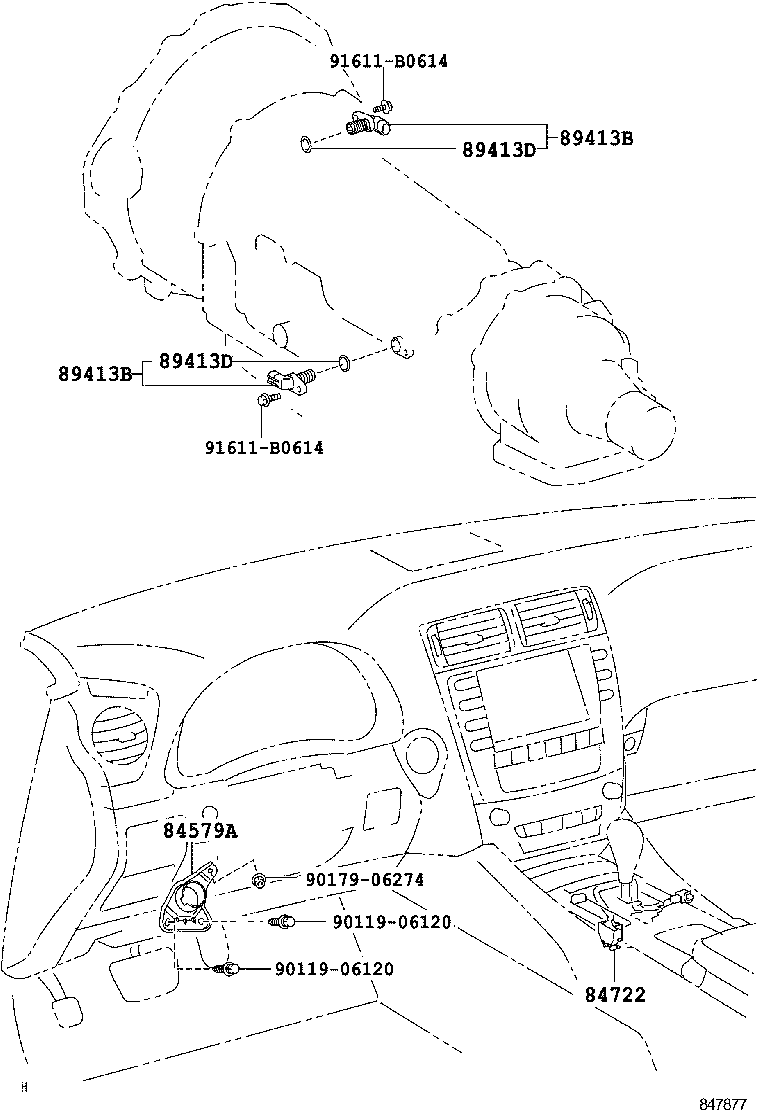

Overdrive & Electronic Controlled Transmission
5 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 84570B | Switch Assy, Kick Down |
| 84579A | Bracket, Kick Down Switch |
| 84722 | Switch, Transmission Control |
| 89413B | Sensor, Transmission Revolution |
| 89413D | Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
