Toyota Lexus IS250/300

2006-04 → 2013-04 · chassis GSE2# · catalogue 242320 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

12 part groups · 4 illustrations

Illustrations

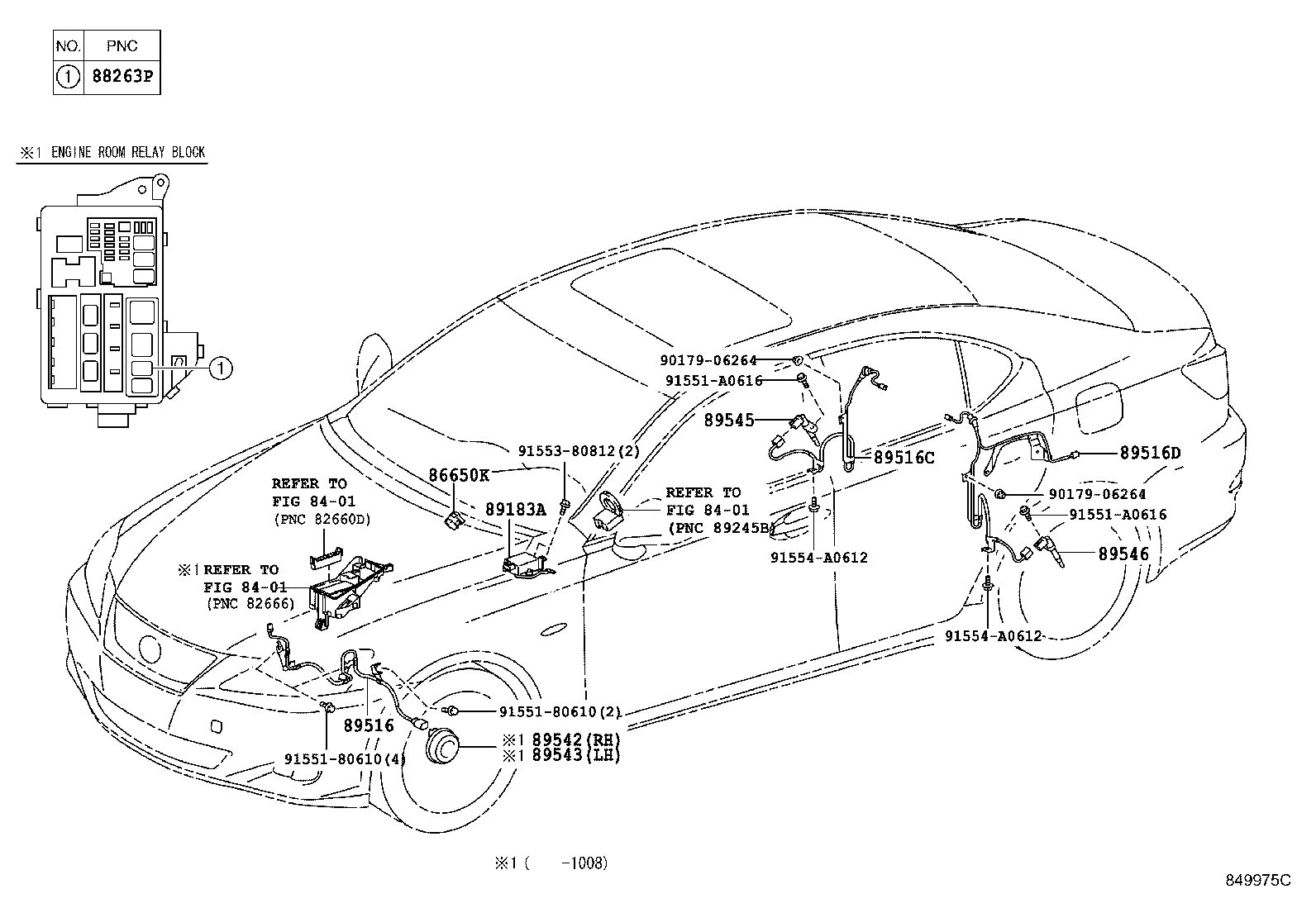

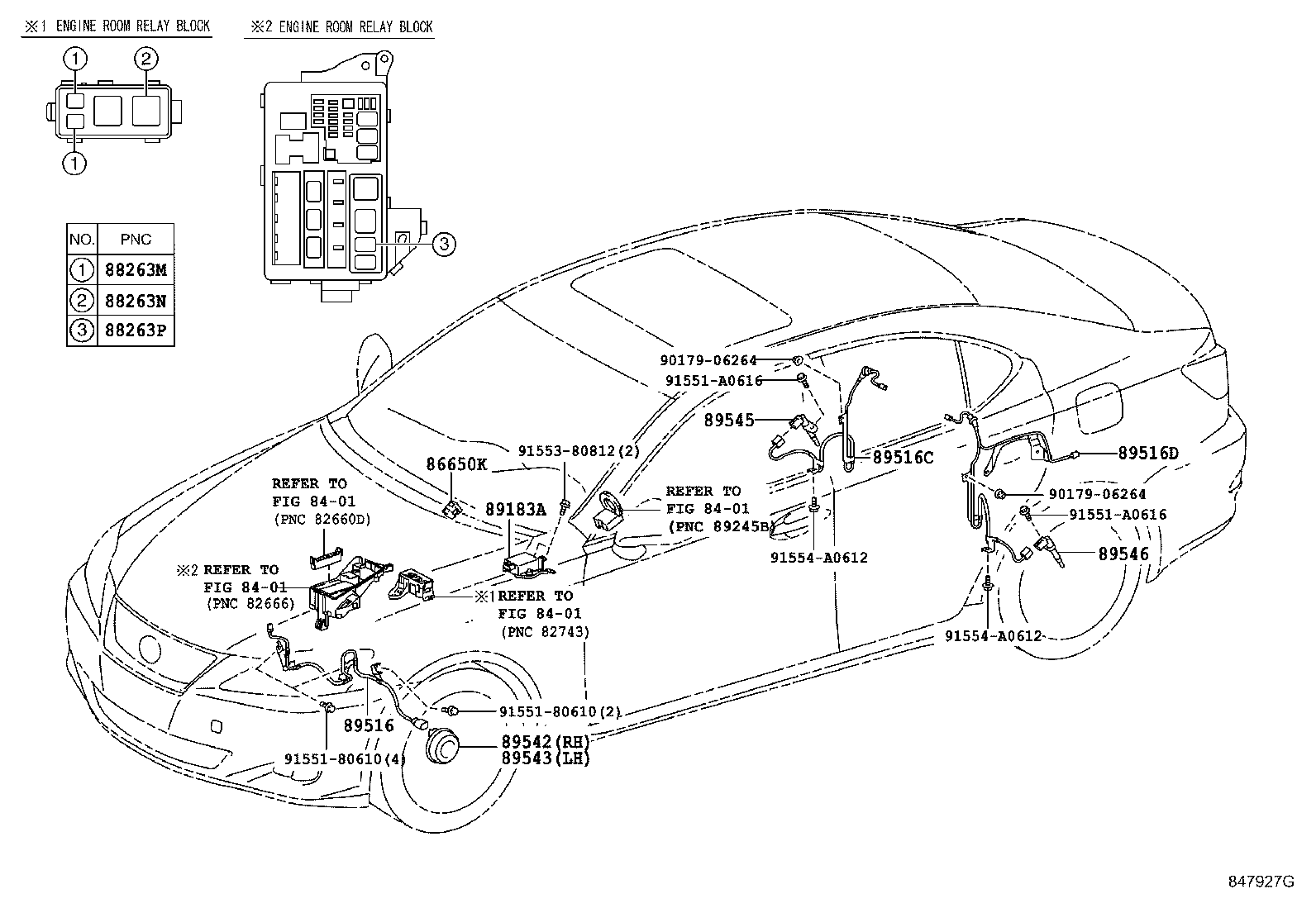

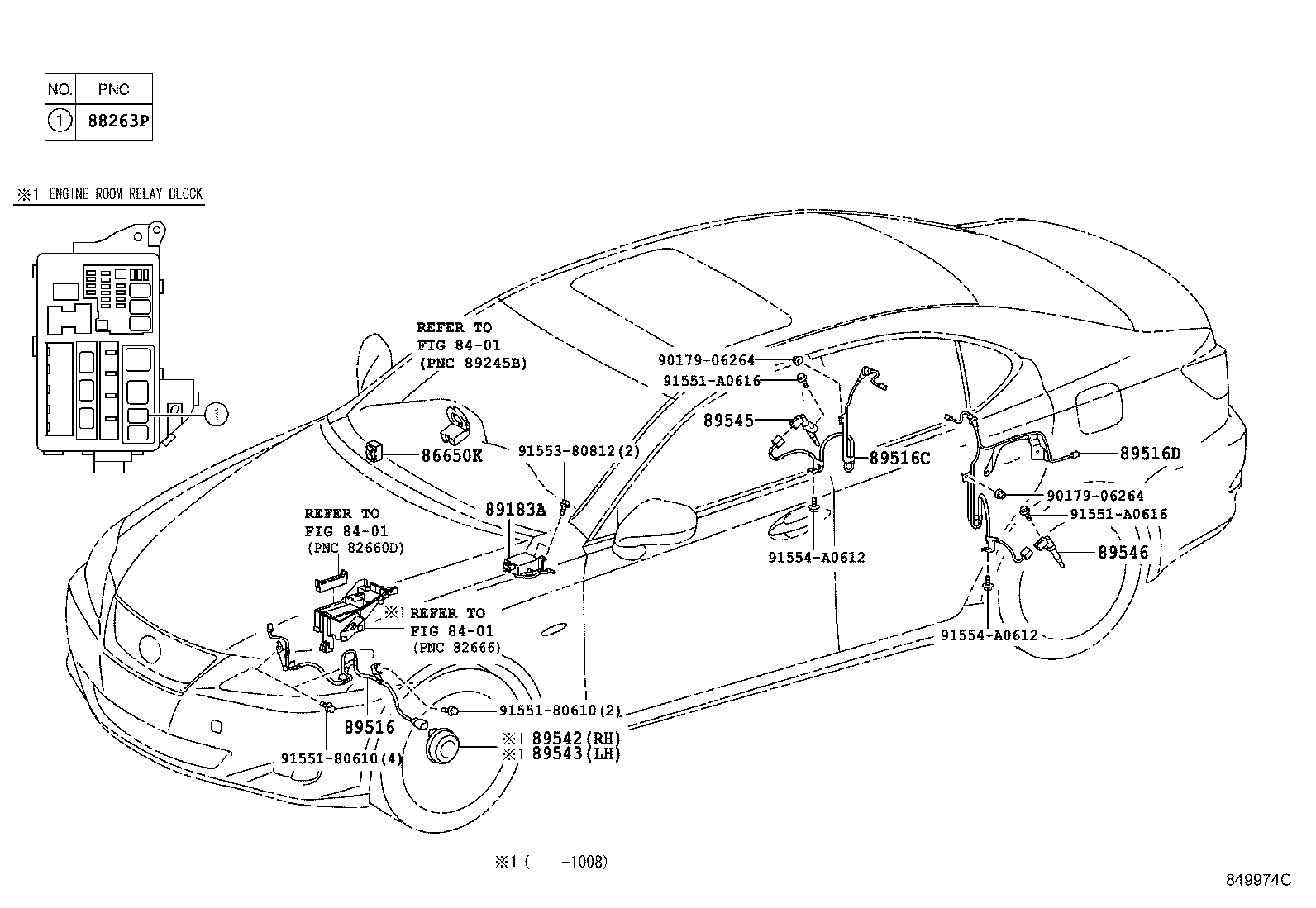

Figure 848120E 848120E 2006-04 → 2008-08 Figure 847927G 847927G 2006-06 → 2008-08 Figure 849974C 849974C 2008-08 → — Figure 849975C 849975C 2008-08 → —

Part groups

PNCDescription
86650K Buzzer Assy, Skid Control
88263M Relay, Abs Solenoid
88263N Relay, Abs Motor
88263P Relay, Stop Lamp Control
89183A Sensor, Yawrate
89516 Wire, Skid Control Sensor
89516C Wire, Skid Control Sensor, RH
89516D Wire, Skid Control Sensor, LH
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
