Toyota Lexus IS250/300
2006-04 → 2013-04 · chassis GSE2# · catalogue 242320 · General
Supported model
Data version 2014-01

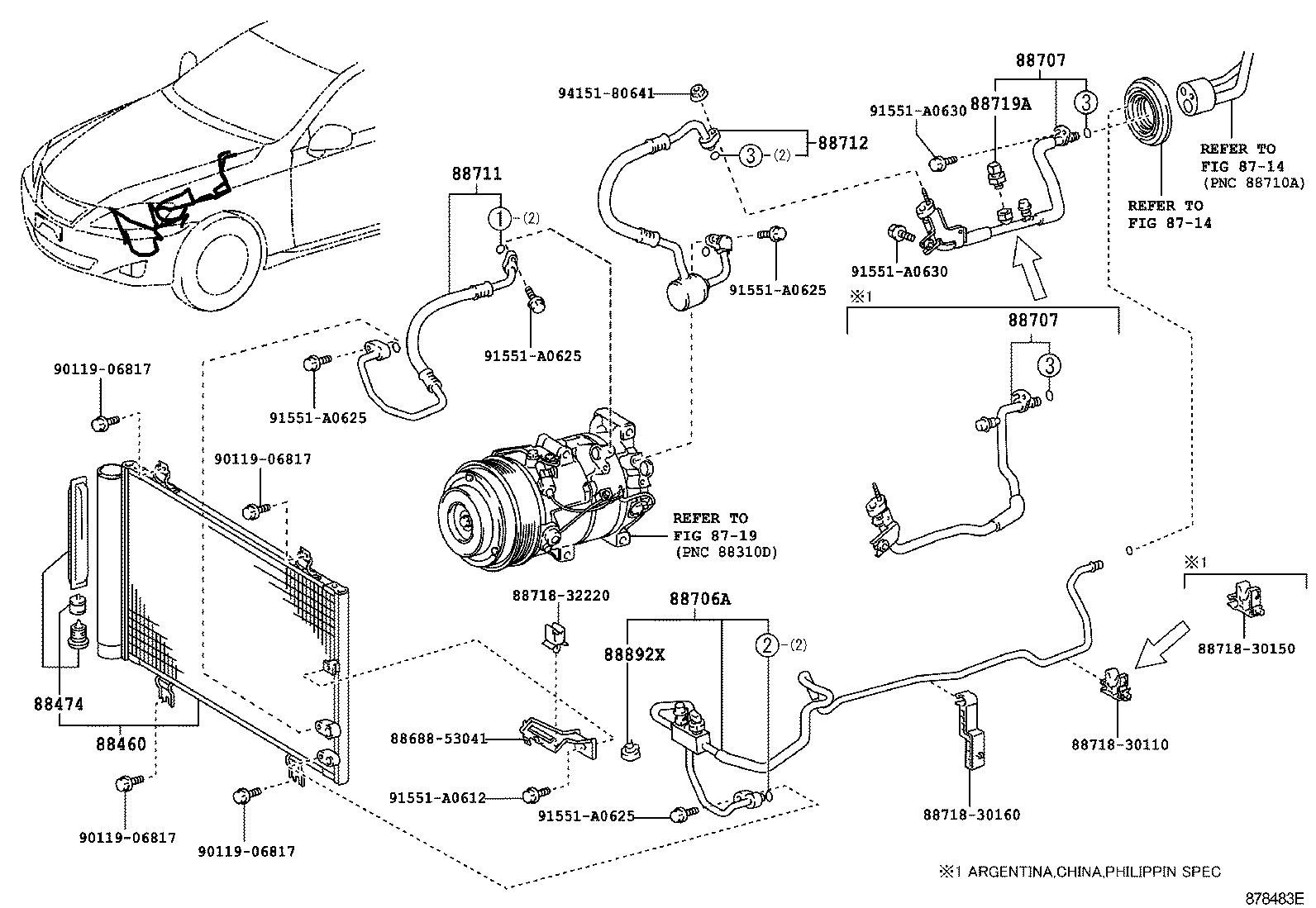

Heating & Air Conditioning - Cooler Piping
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88706A | Tube Sub-assy, Liquid, A |
| 88707 | Pipe Sub-assy, Suction |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88719A | Sensor, Air Conditioner Pressure |
| 88892X | Cover, Cooler, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
