Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE3# · catalogue 242330 · General

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

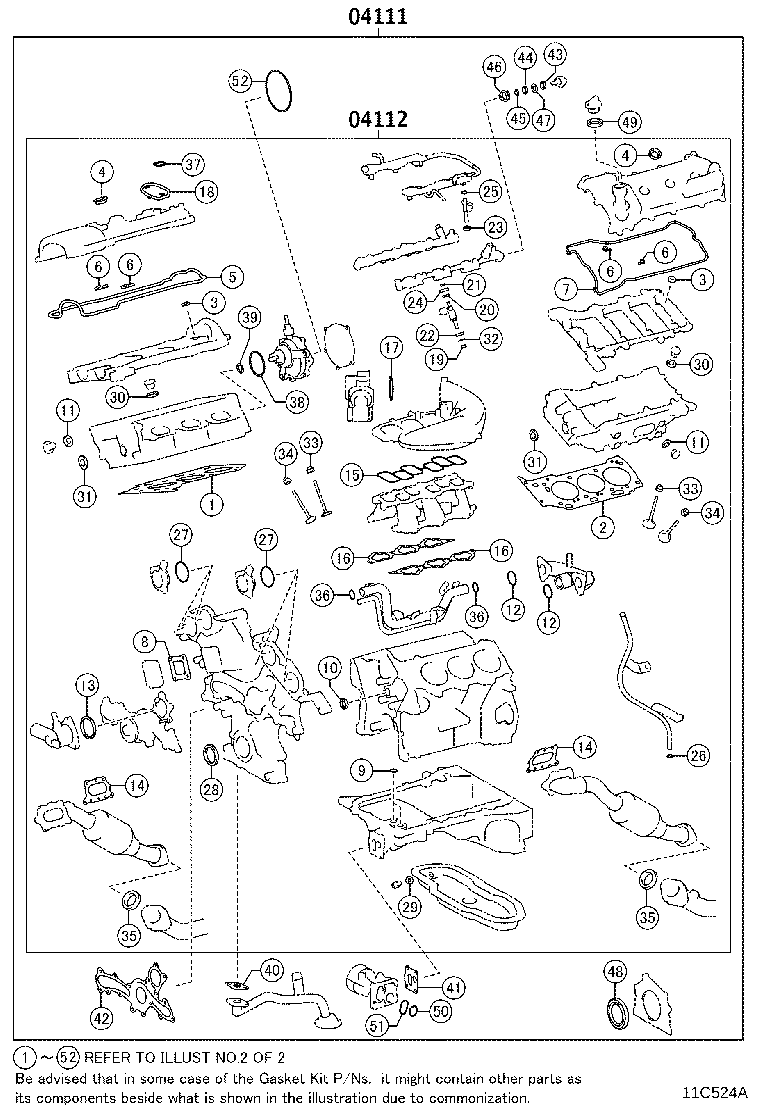

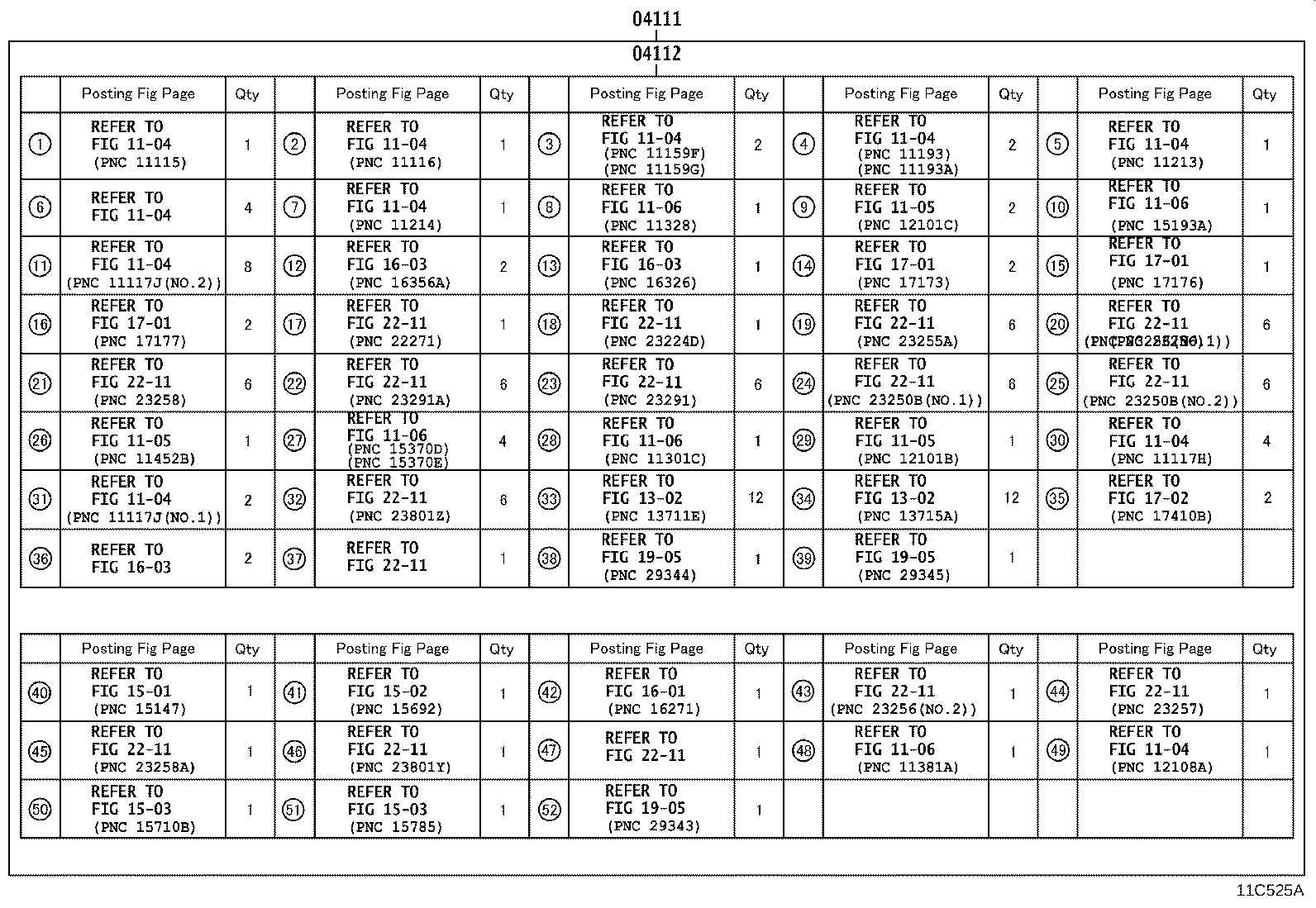

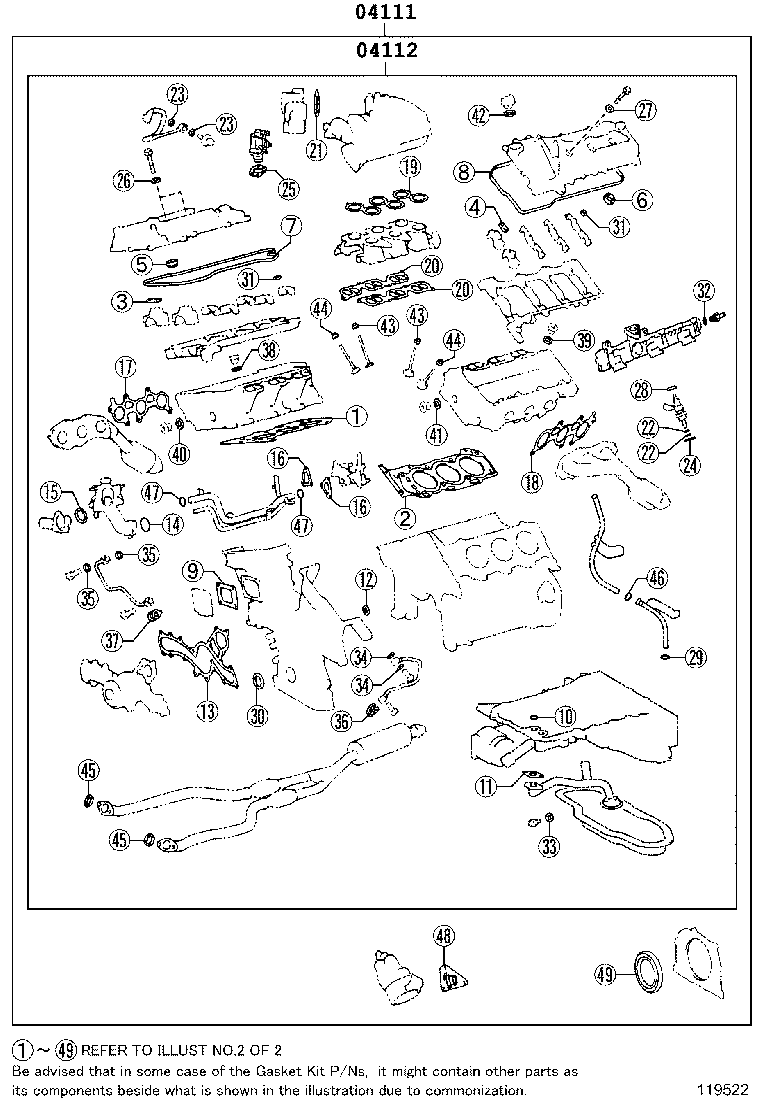

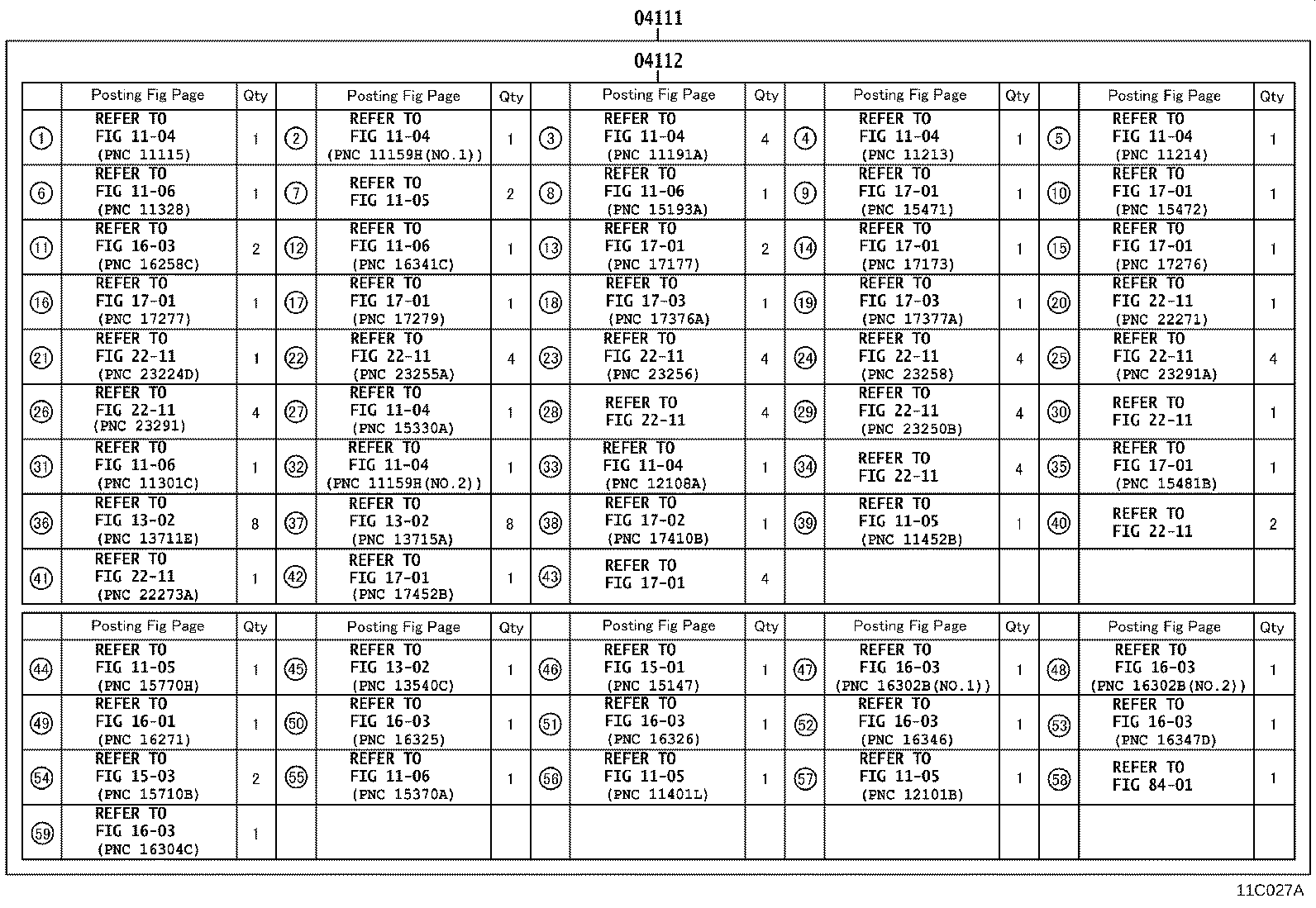

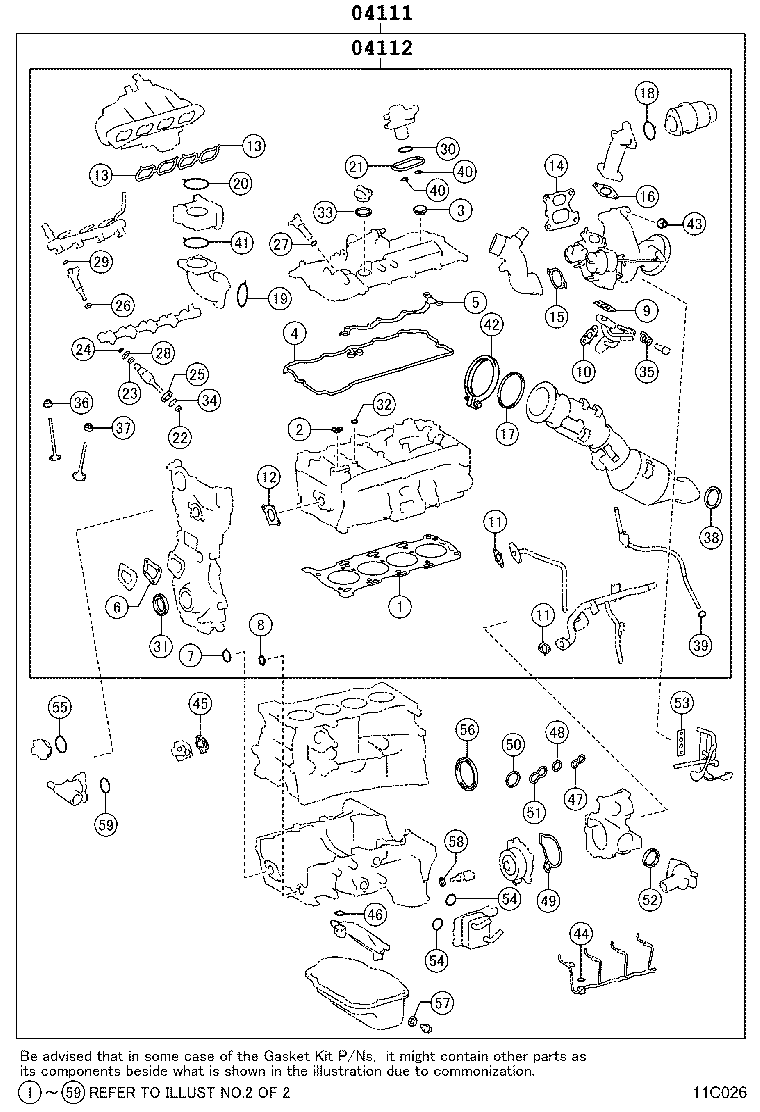

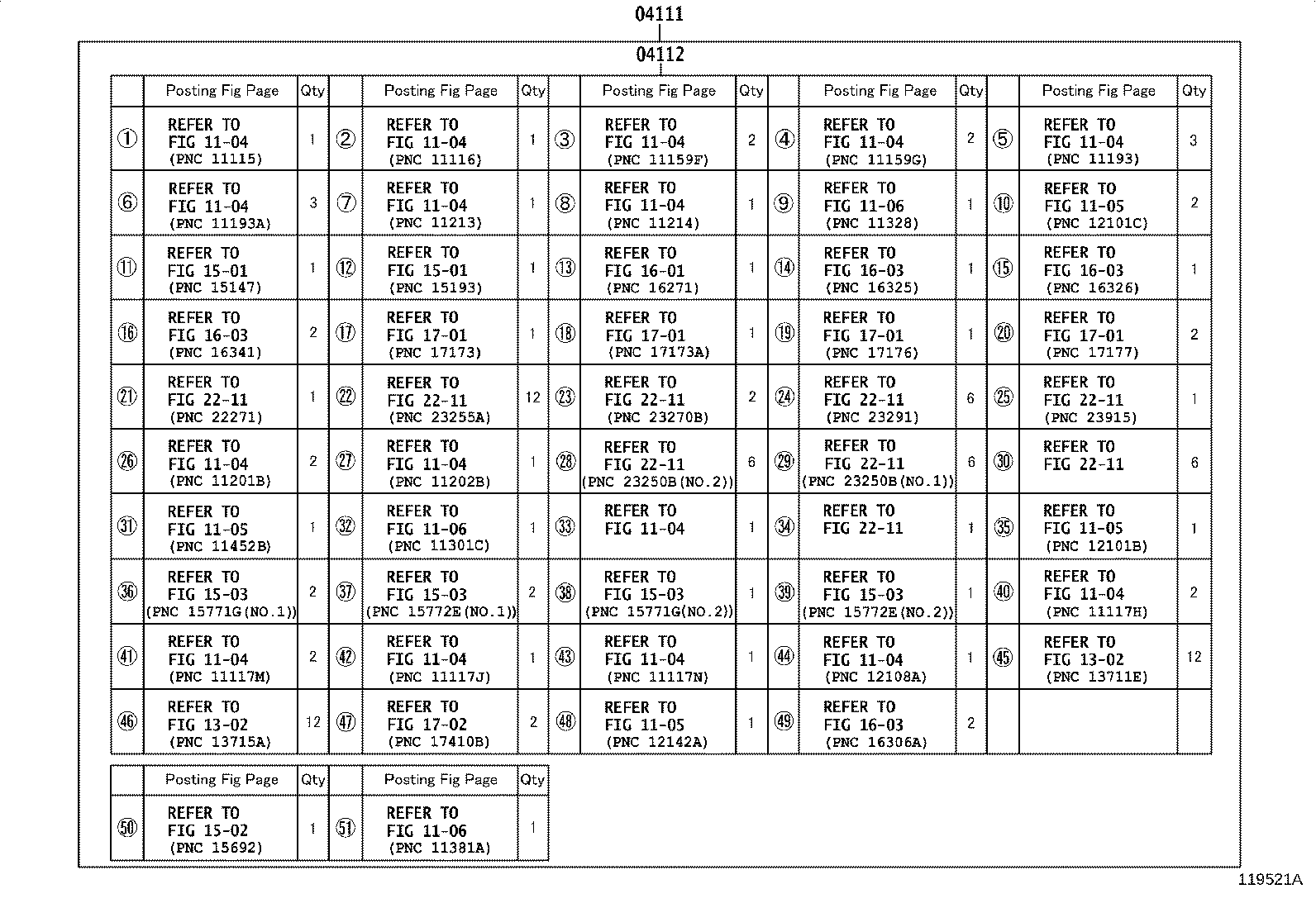

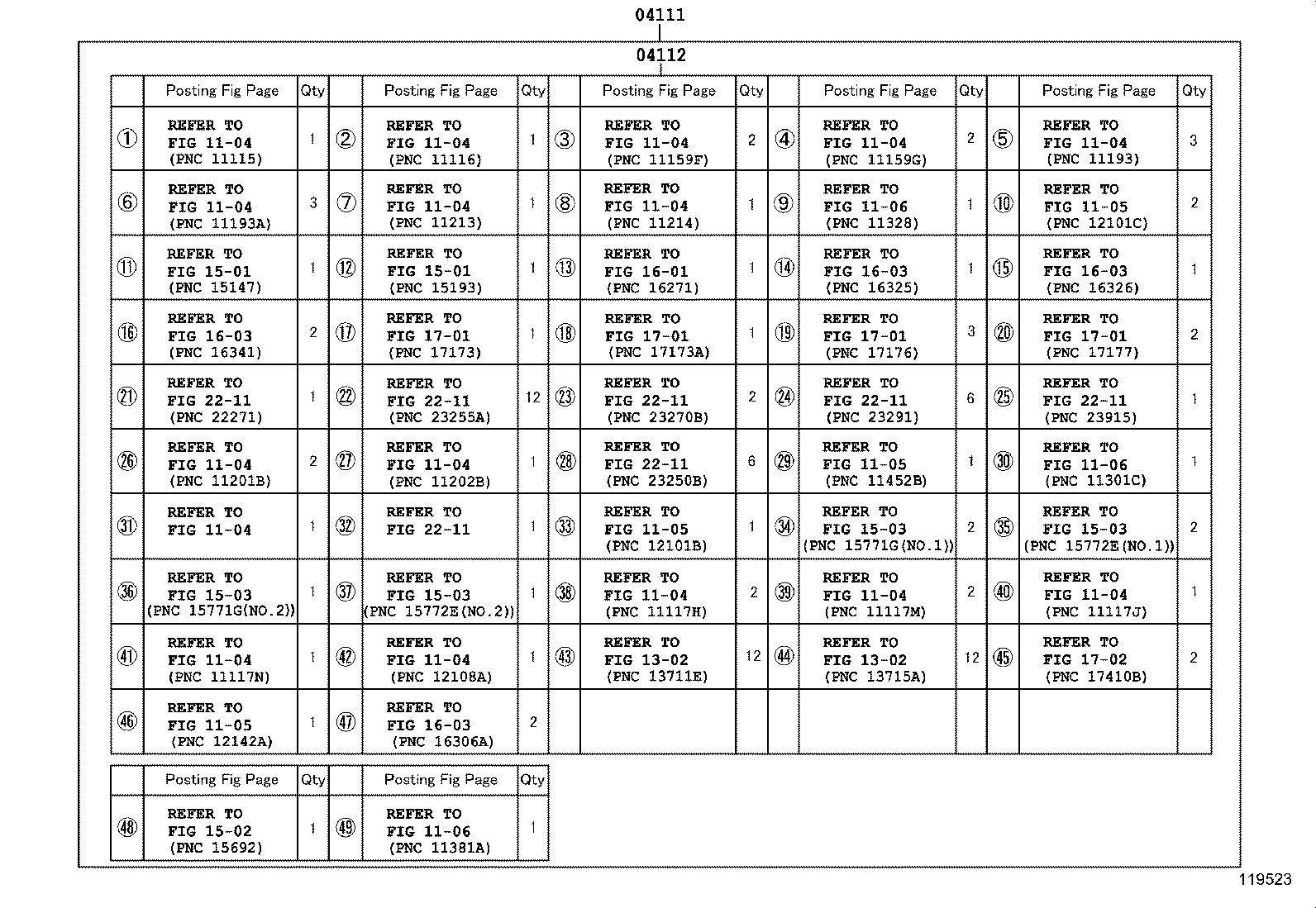

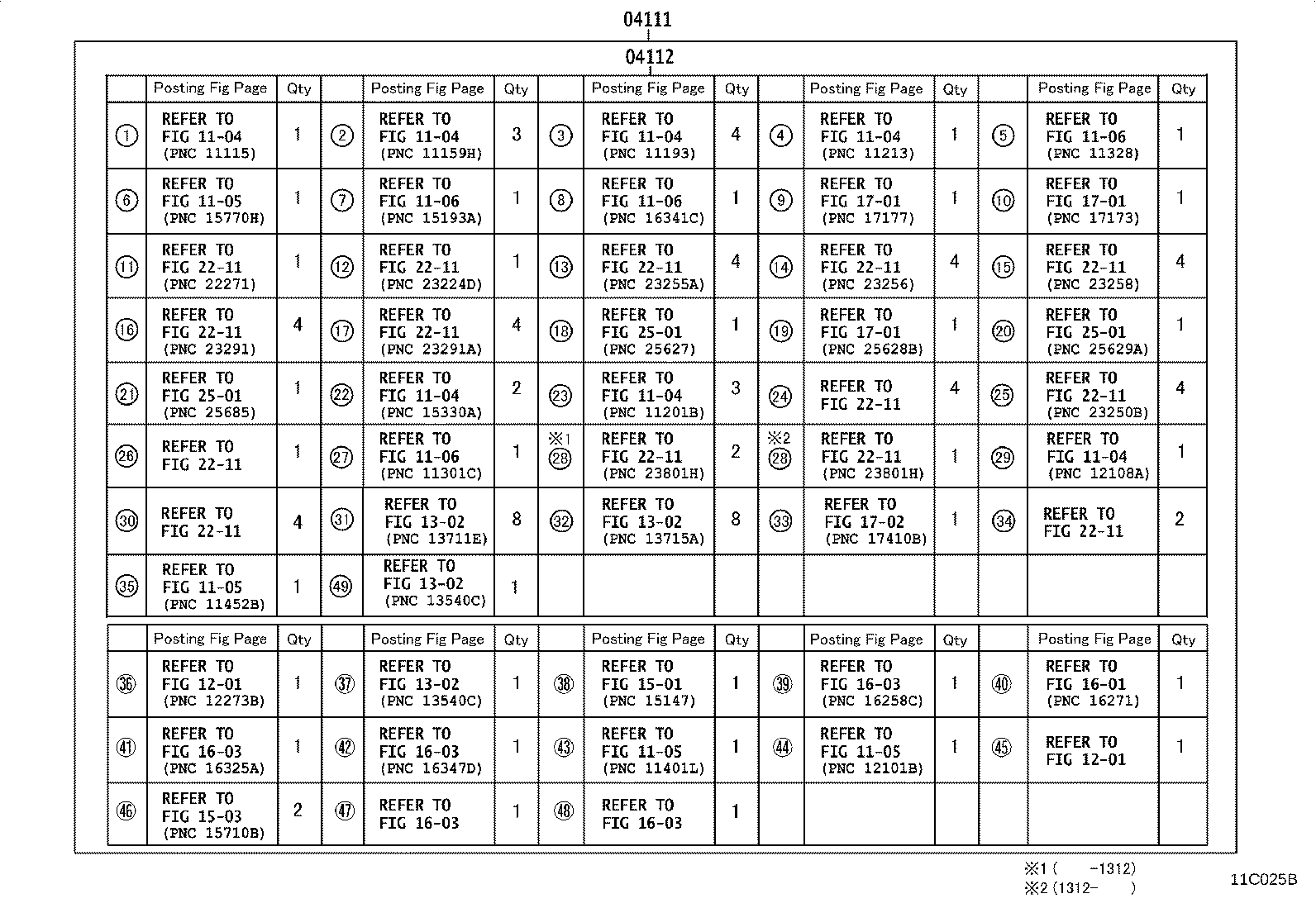

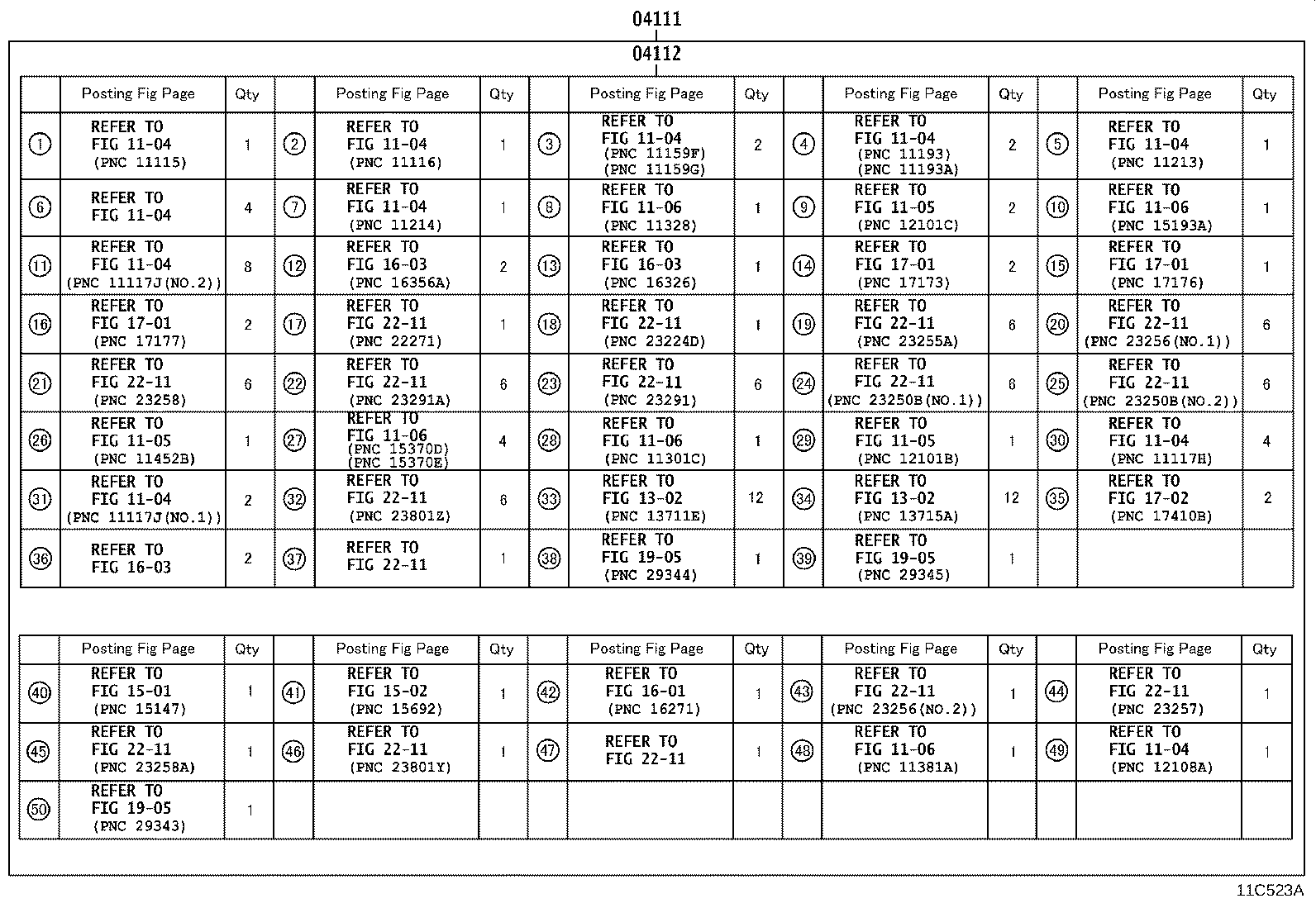

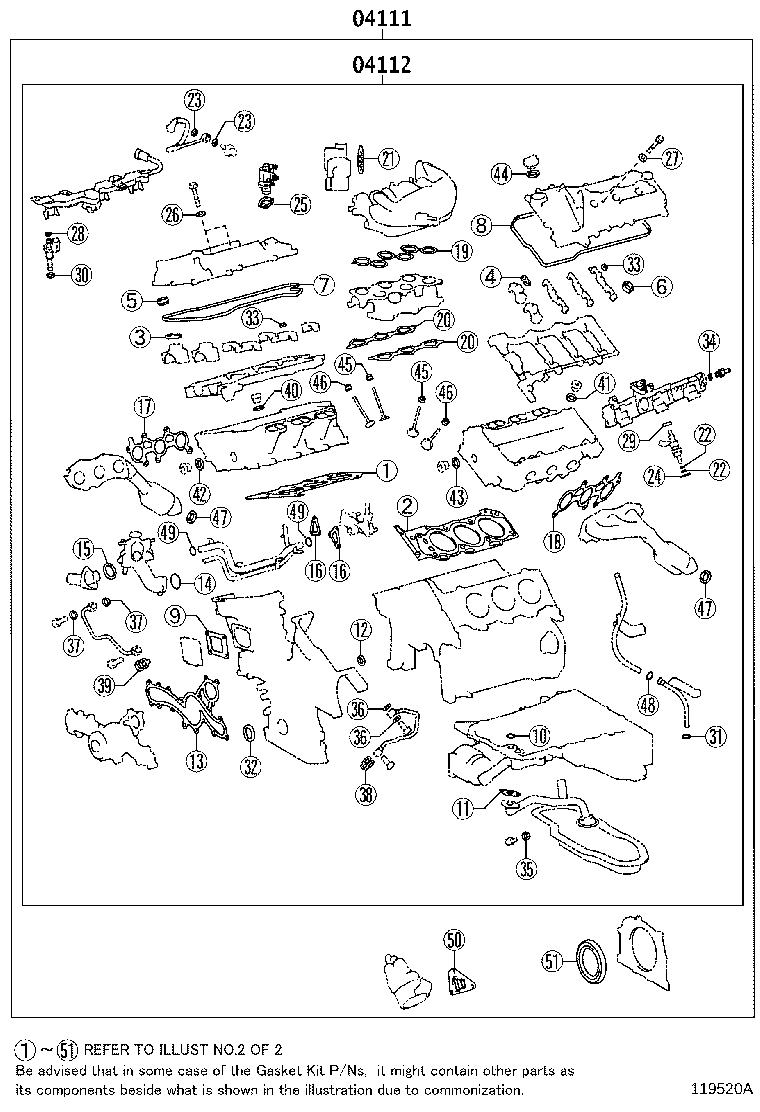

Figure 11C028B 11C028B 2013-04 → — Figure 11C025B 11C025B 2013-04 → — Figure 11C026 11C026 2015-08 → — Figure 11C027A 11C027A 2015-08 → — Figure 119520A 119520A 2013-04 → 2017-10 Figure 119521A 119521A 2013-04 → 2017-10 Figure 119522 119522 2013-04 → 2017-10 Figure 119523 119523 2013-04 → 2017-10 Figure 11C522A 11C522A 2017-10 → — Figure 11C523A 11C523A 2017-10 → — Figure 11C524A 11C524A 2017-10 → — Figure 11C525A 11C525A 2017-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
