Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE3# · catalogue 242330 · General

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

2 part groups · 3 illustrations

Illustrations

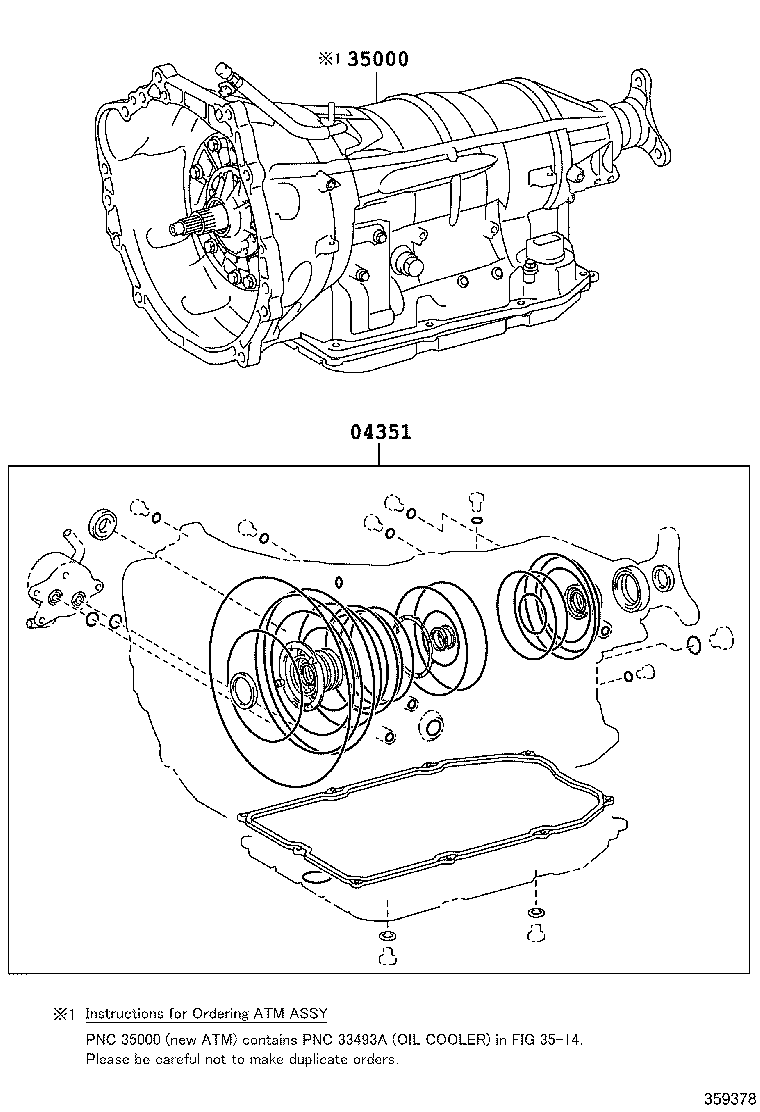

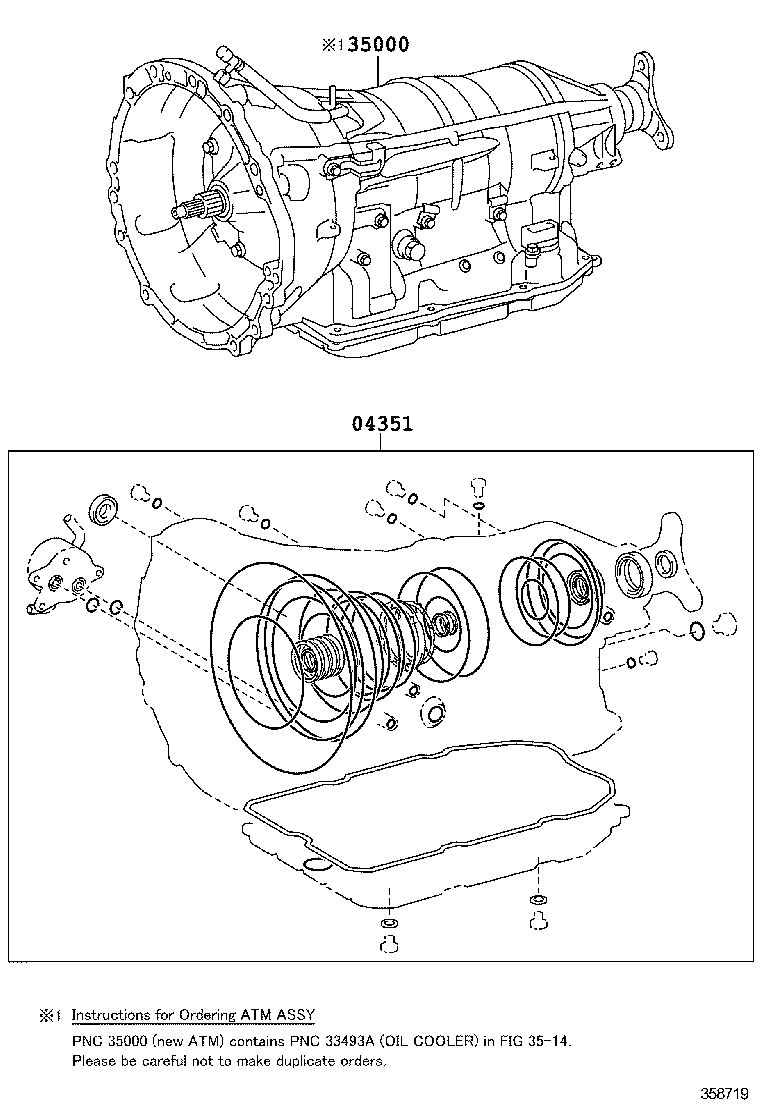

Figure 358669 358669 2013-04 → — Figure 358719 358719 2013-04 → — Figure 359378 359378 2015-08 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
35000 Transmission Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
