Front Axle Hub

5 part groups · 2 illustrations

Illustrations

Figure 434563A

434563A 2013-04 → 2020-09

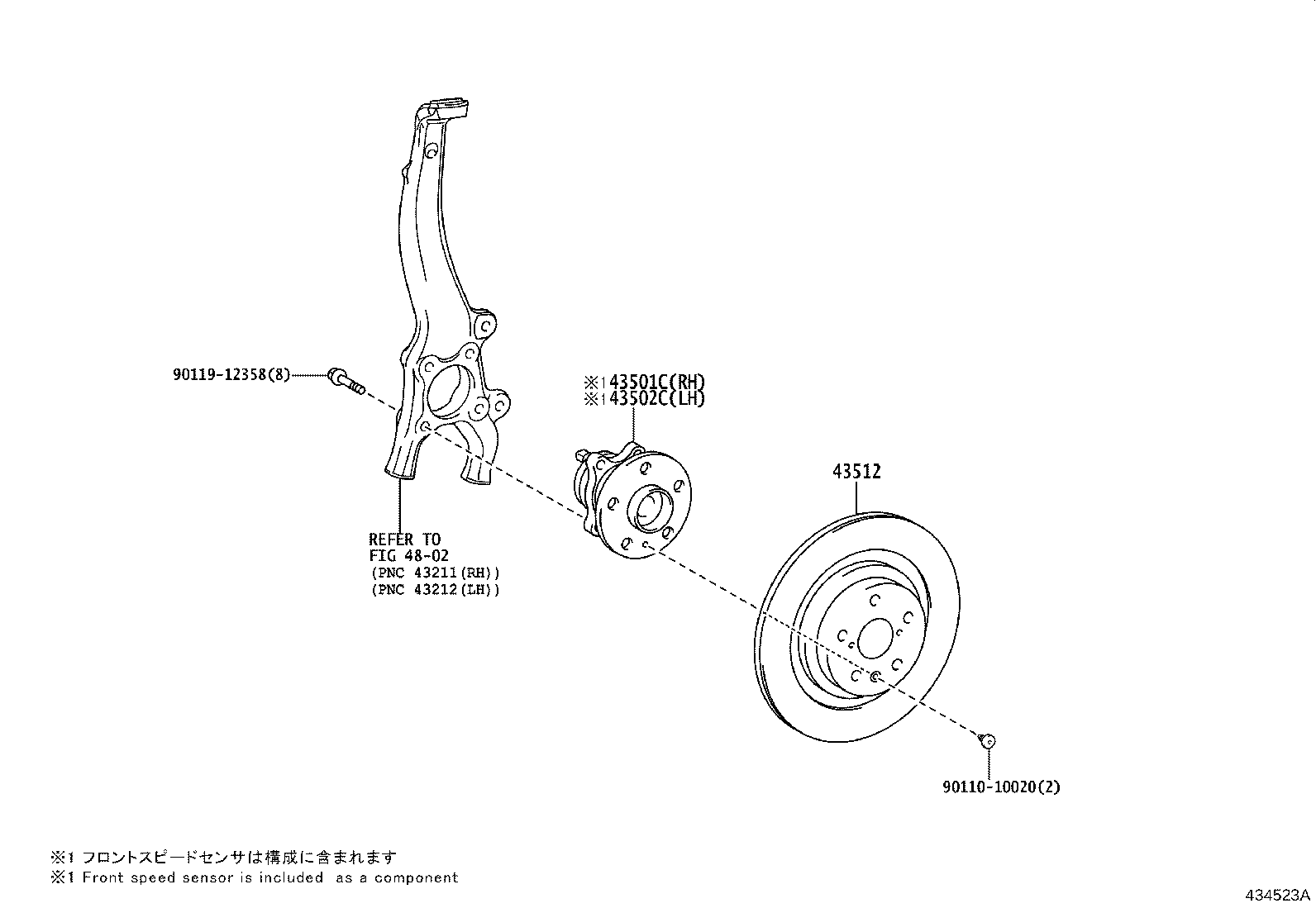

Figure 434523A

434523A 2020-09 → —

Part groups

PNC	Description
43501C	Hub Sub-assy, Front Axle, RH
43501D	Bolt, Hub (FOR FRONT AXLE RH)
43502C	Hub Sub-assy, Front Axle, LH
43502D	Bolt, Hub (FOR FRONT AXLE LH)
43512	Disc, Front

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
