Brake Pedal & Bracket

4 part groups · 4 illustrations

Illustrations

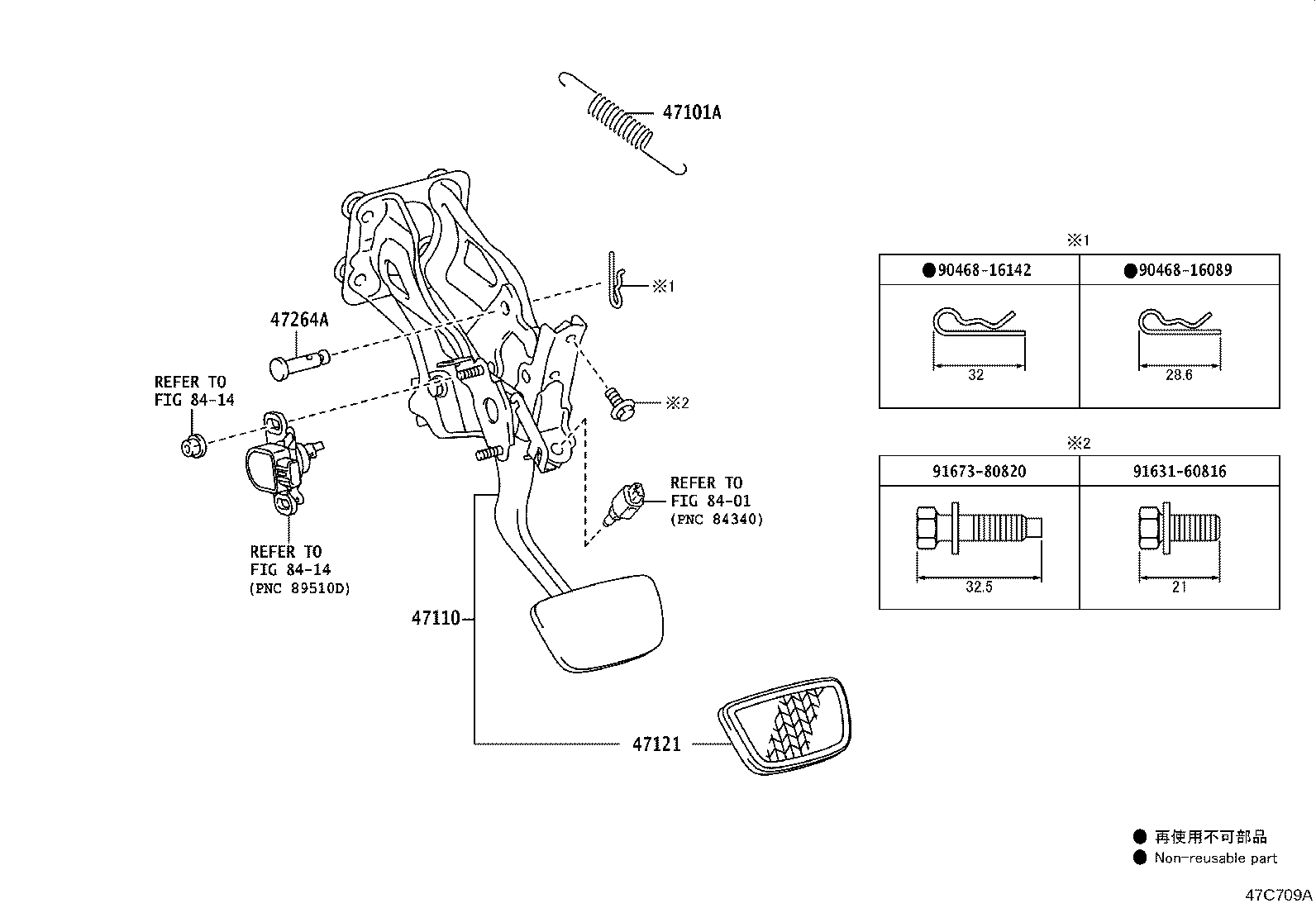

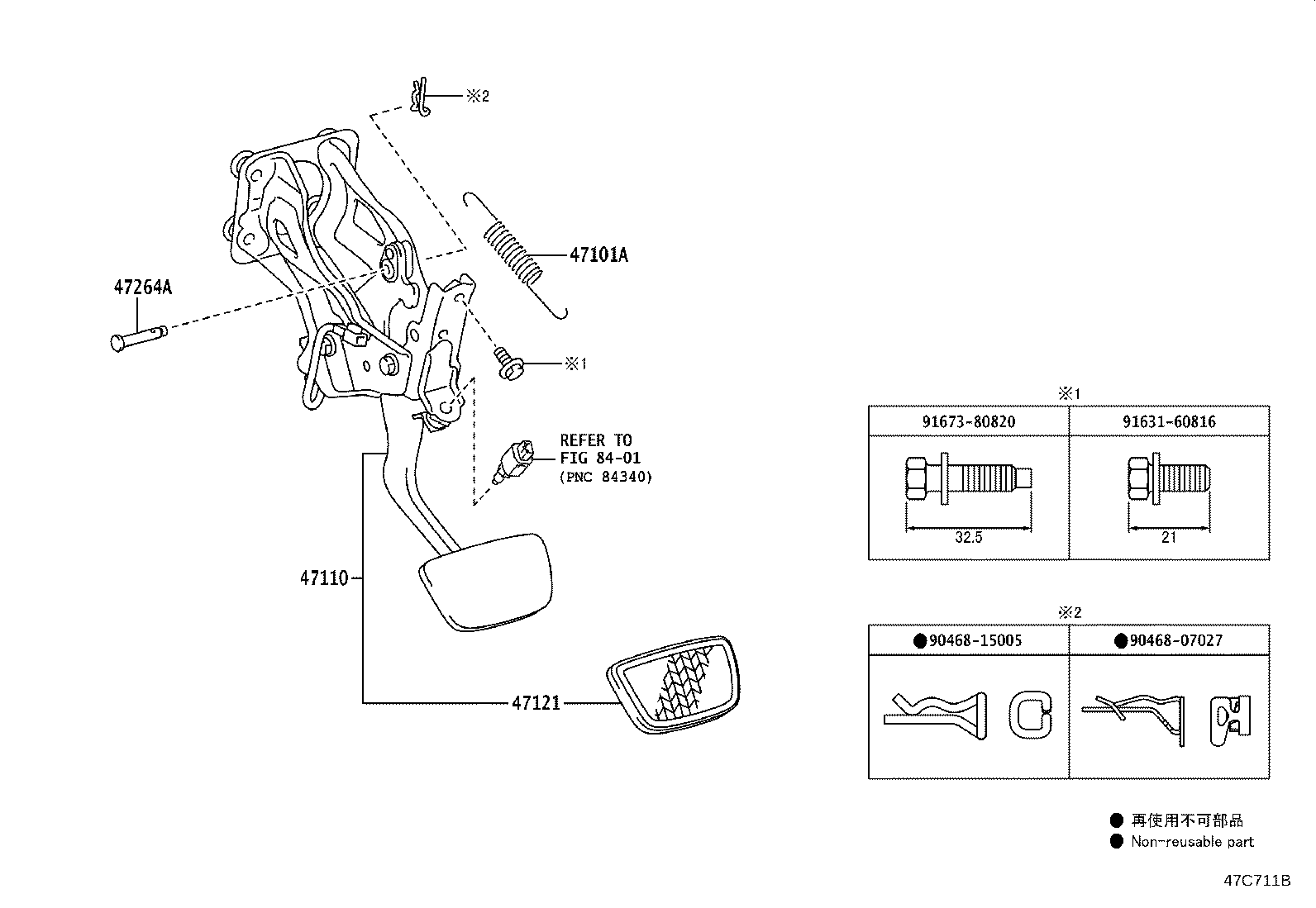

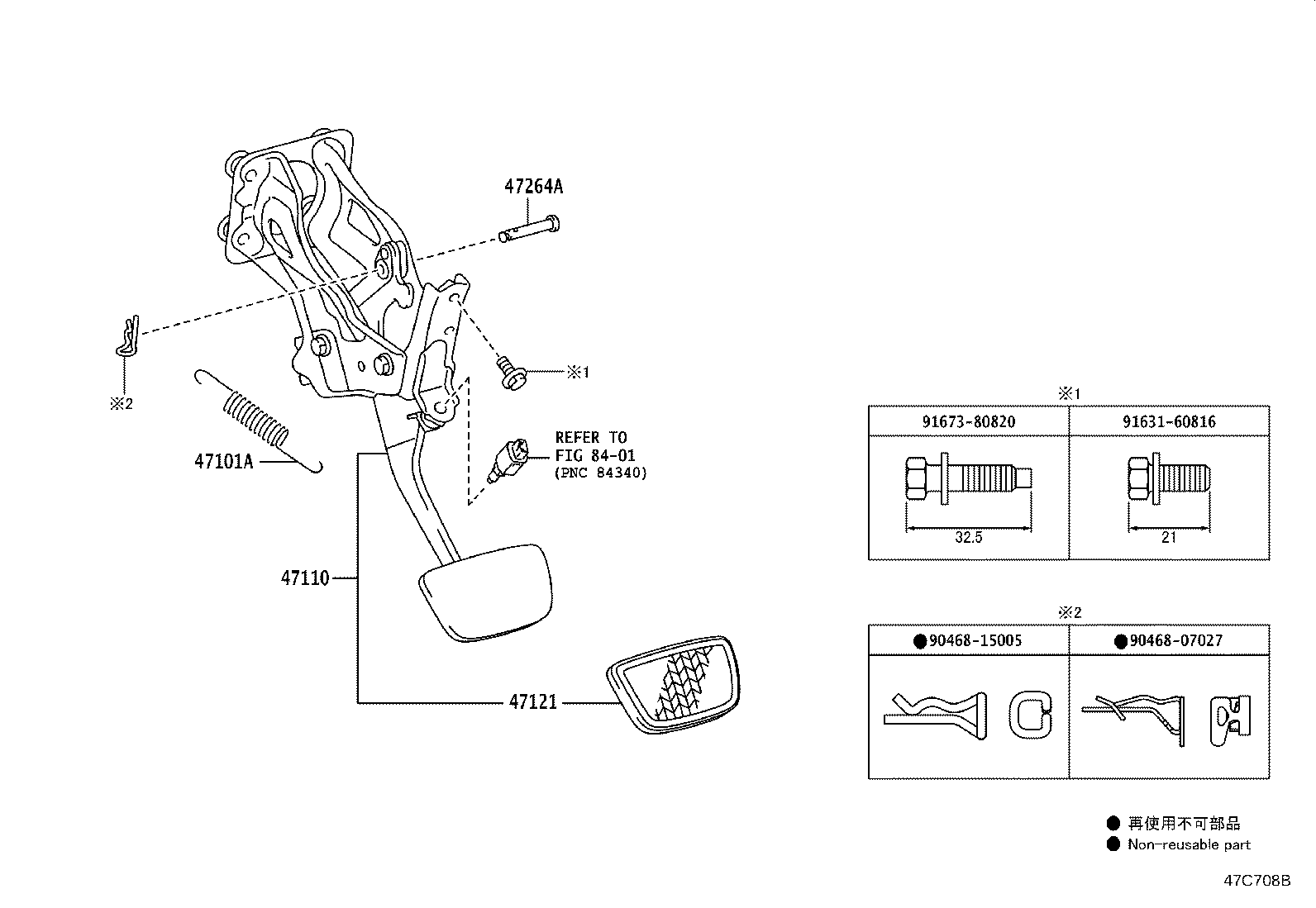

Figure 47C707A 47C707A 2013-04 → — Figure 47C709A 47C709A 2013-04 → — Figure 47C708B 47C708B 2013-04 → — Figure 47C711B 47C711B 2013-04 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
