Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE3# · catalogue 242330 · General

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

9 part groups · 3 illustrations

Illustrations

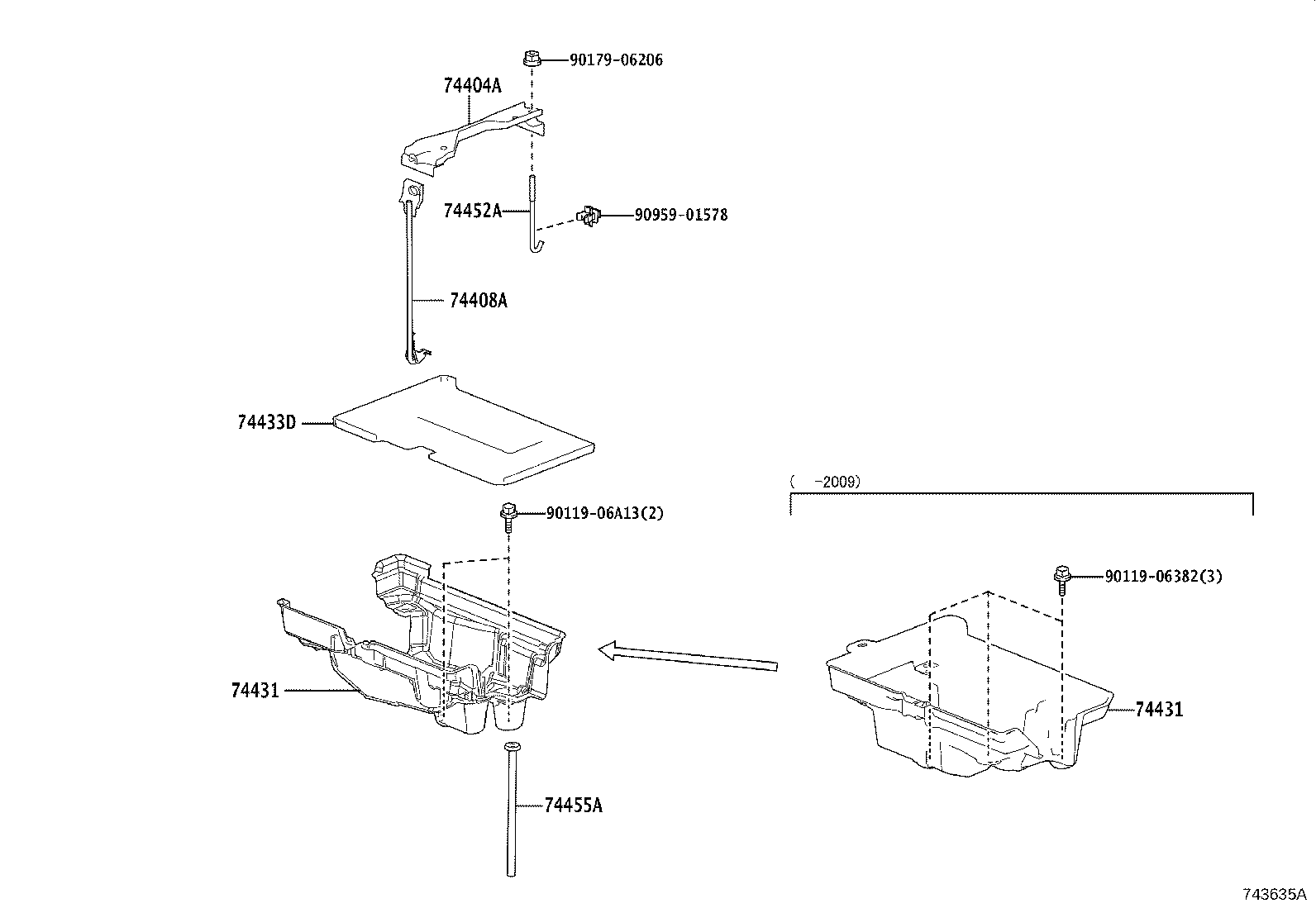

Figure 743634A 743634A 2013-04 → — Figure 743635A 743635A 2013-04 → — Figure 743636A 743636A 2013-04 → —

Part groups

PNCDescription
58780F Band Assy, Tool Box
74404A Clamp Sub-assy, Battery
74406B Clamp Sub-assy, Battery Hold Down
74408A Bolt Sub-assy, Battery Clamp, NO.2
74410 Carrier Assy, Battery
74431 Tray, Battery
74433D Support, Battery Tray,NO.1
74452A Bolt, Battery Clamp, NO.2
74455A Hose, Battery Drain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
