Factory parts data · Europe

Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE3# · catalogue 242330 · General

Supported model Data version 2021-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Modulated Suspension

4 part groups · 4 illustrations

Illustrations

Figure 84E312A

84E312A 2013-04 → 2016-10

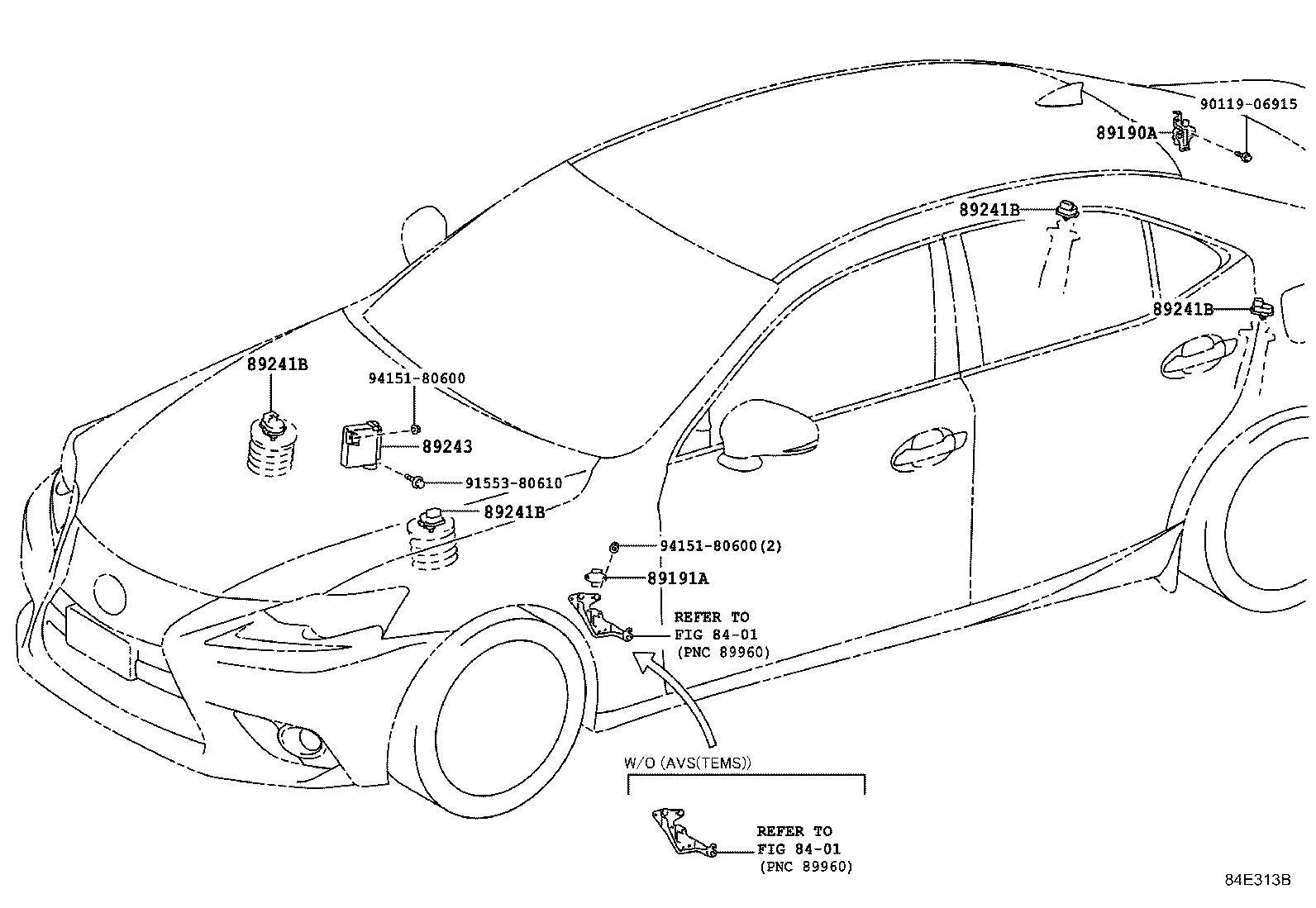

Figure 84E313B

84E313B 2013-04 → 2016-10

Figure 84H669

84H669 2016-10 → —

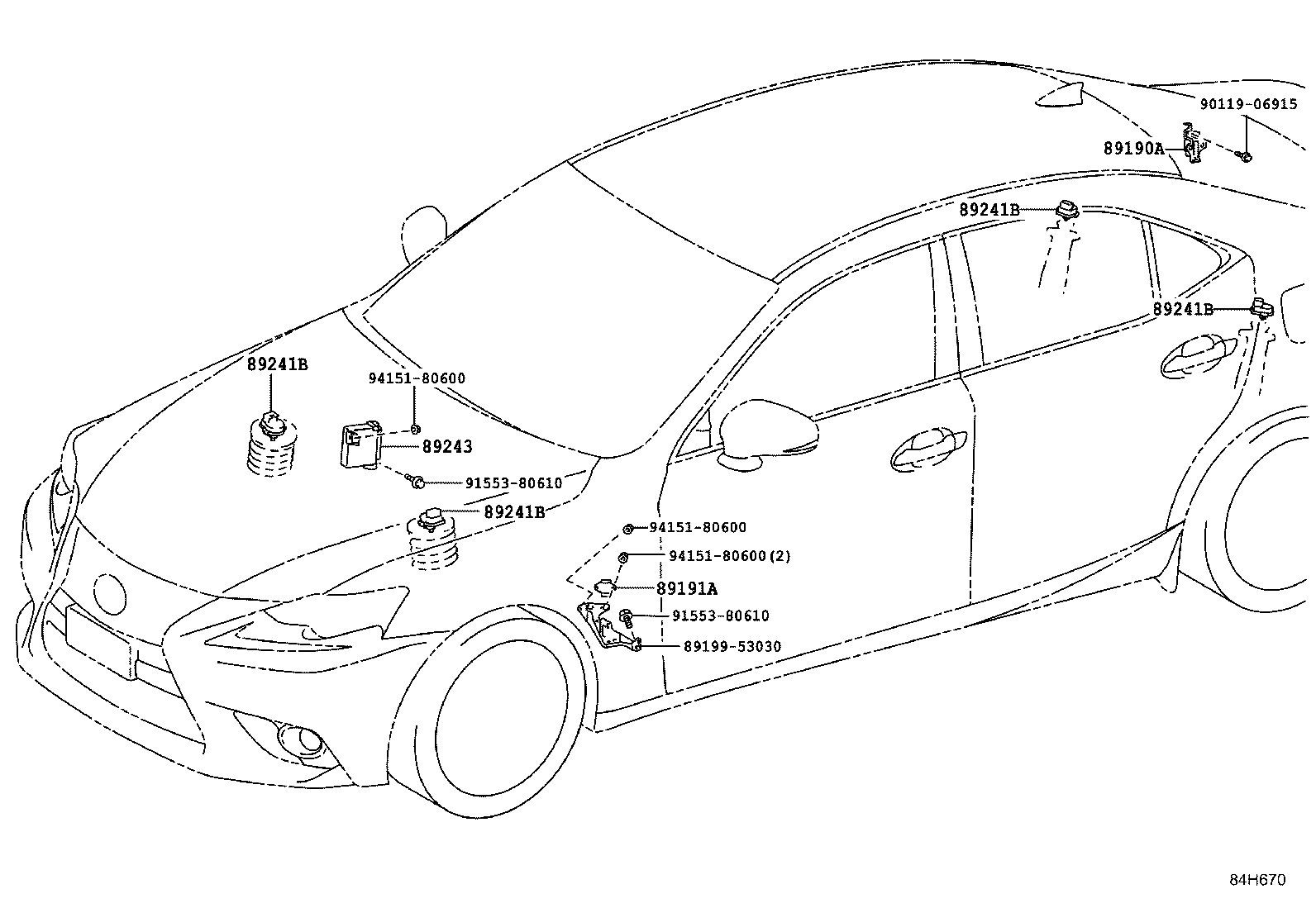

Figure 84H670

84H670 2016-10 → —

Part groups

PNC	Description
89190A	Sensor Assy, Acceleration
89191A	Sensor, Acceleration
89241B	Actuator, Absorber Control
89243	Computer, Absorber Control

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
