Toyota Lexus IS2###/3###
2013-04 → present · chassis ASE30,AVE30,GSE3# · catalogue 242330 · General
Supported model
Data version 2021-09
Horn

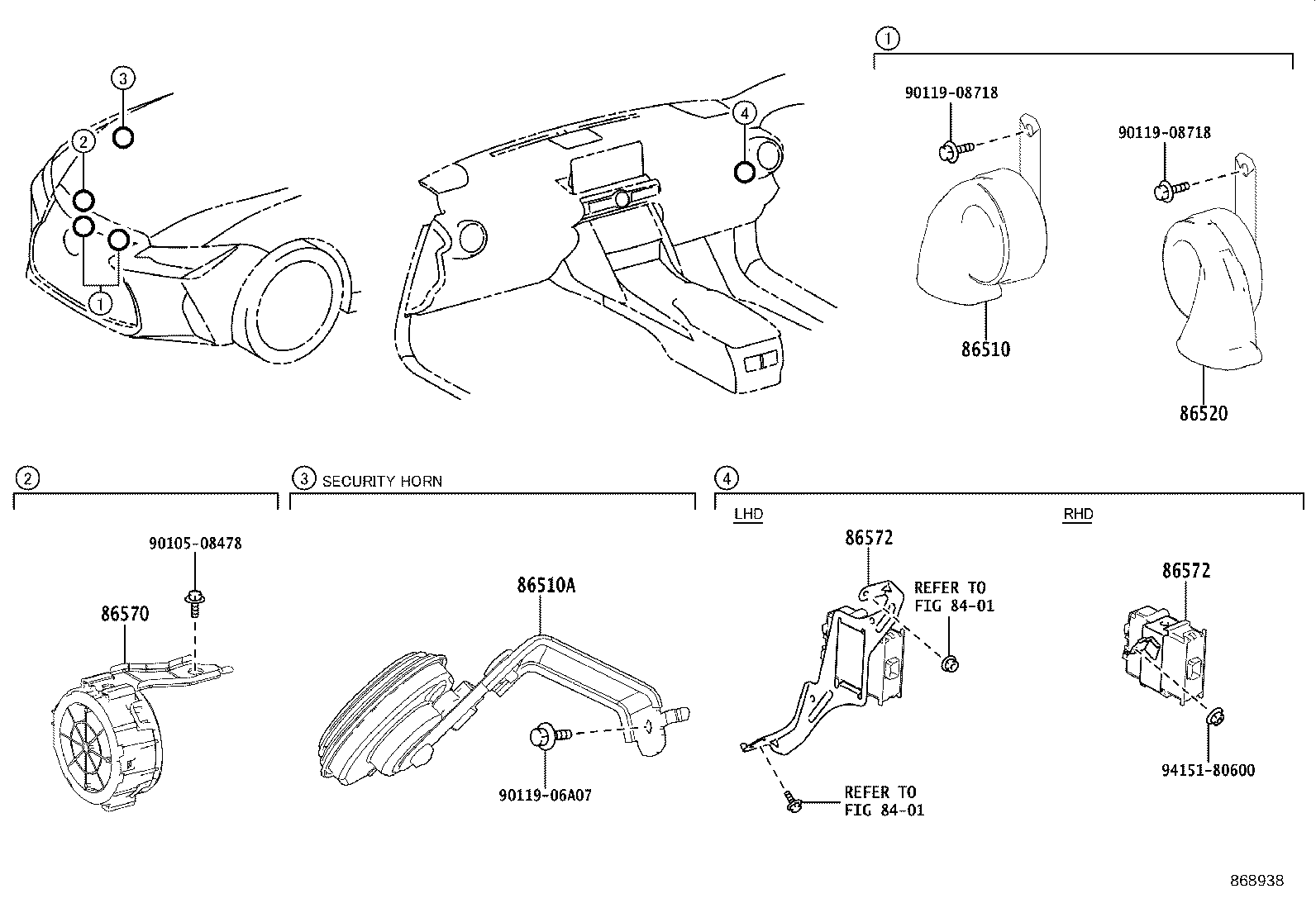

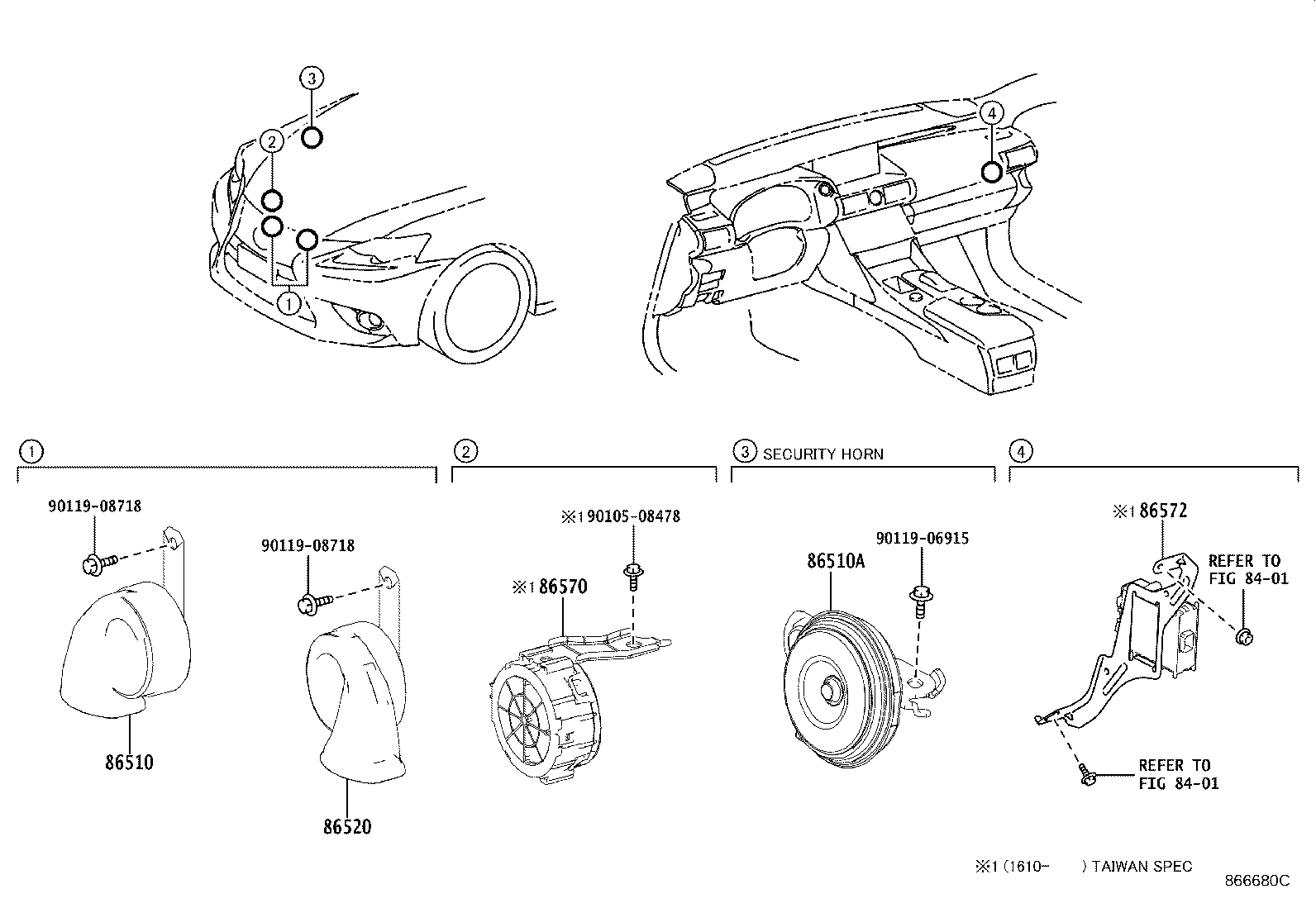

5 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86510 | Horn Assy, High Pitched |
| 86510A | Horn Assy, Security |
| 86520 | Horn Assy, Low Pitched |
| 86570 | Speaker Assy, Vehicle Approaching |
| 86572 | Controller, Vehicle Approaching Speaker |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
