Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE3# · catalogue 242330 · General

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

8 part groups · 2 illustrations

Illustrations

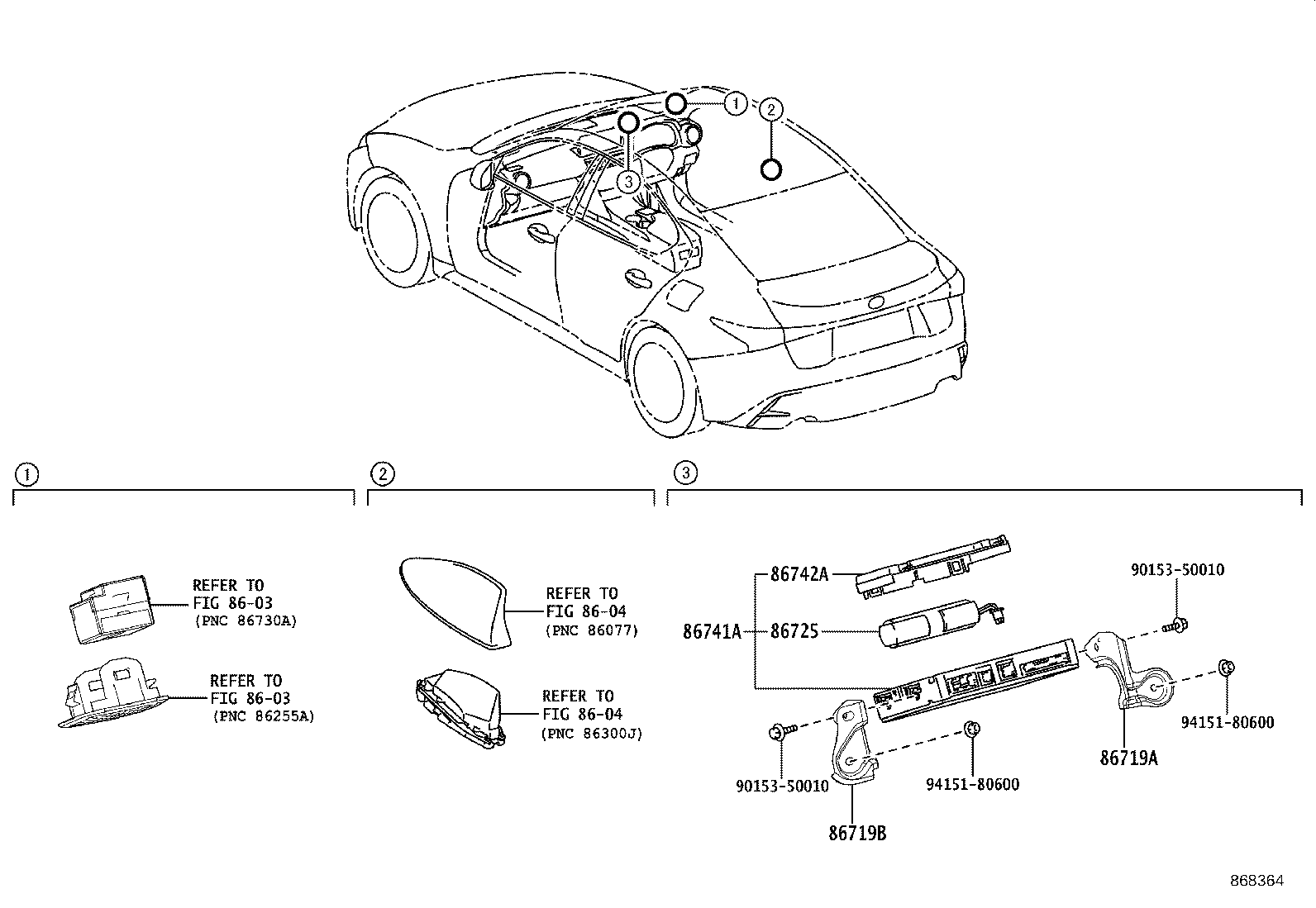

Figure 865407C 865407C 2013-04 → 2020-09 Figure 868364 868364 2020-09 → —

Part groups

PNCDescription
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86719C Bracket, Telephone NO.3
86725 Battery, Mobilephone
86741A Transceiver, Telematics
86742 Cover, Transceiver
86742A Cover, Transceiver
86777 Battery, Mayday
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
