Toyota Lexus IS F
2010-08 → 2014-08 · chassis USE20 · catalogue 245310 · General
Supported model
Data version 2015-01

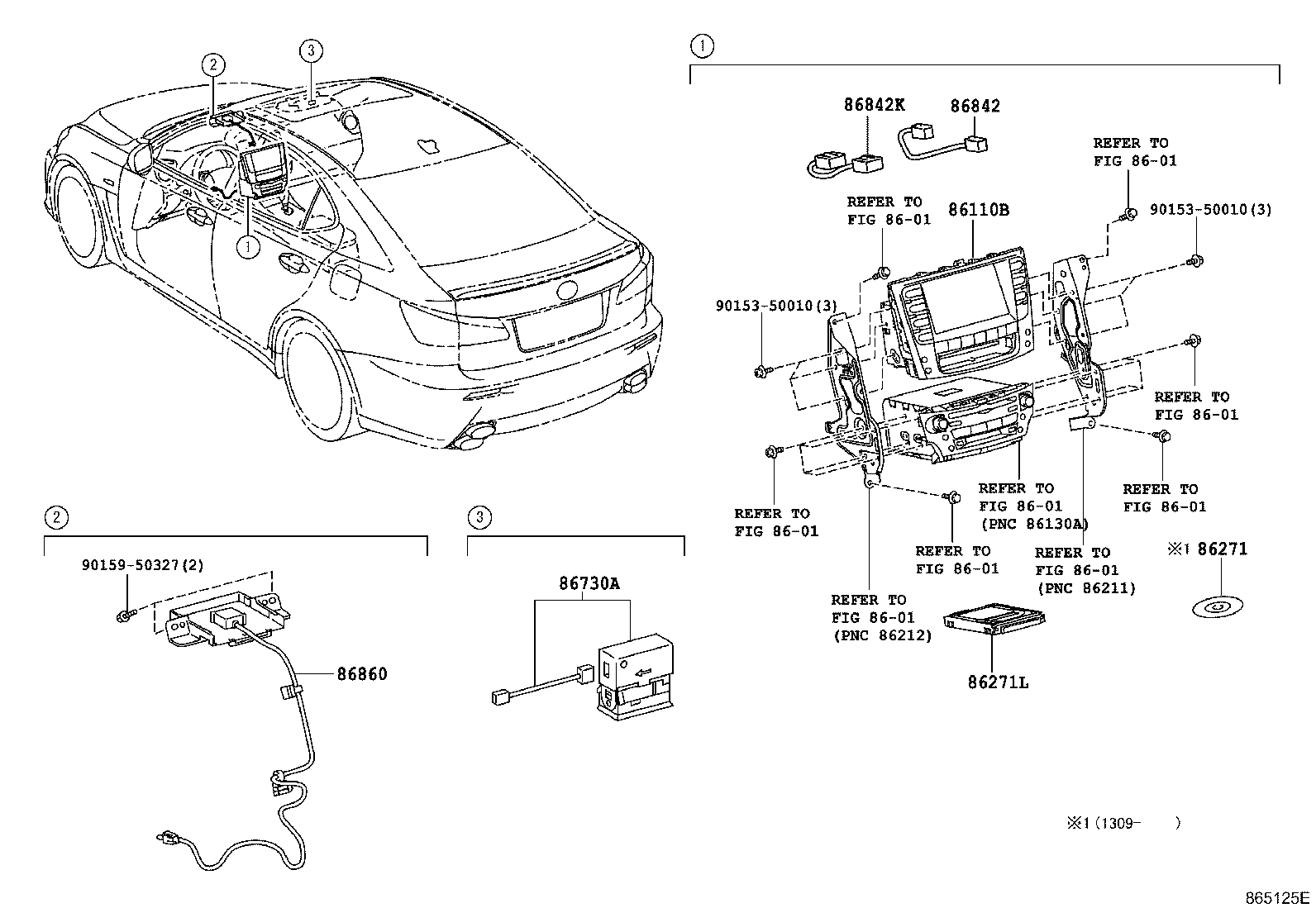

Navigation & Front Monitor Display
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86110B | Multi-display Assy |
| 86271 | Disc, Disc Player |
| 86271L | Hard Disc |
| 86424 | Deck, Dvd |
| 86730A | Microphone Assy, Telephone |
| 86804 | Cover Sub-assy, Navigation Computer |
| 86842 | Wire, Navigation, NO.1 |
| 86842J | Wire, Navigation, NO.2 |
| 86842K | Wire, Navigation, NO.3 |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
