Toyota Lexus RC3###/200T

2014-09 → present · chassis ASC10,AVC10,GSC10 · catalogue 245320 · General

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Standard Tool

17 part groups · 3 illustrations

Illustrations

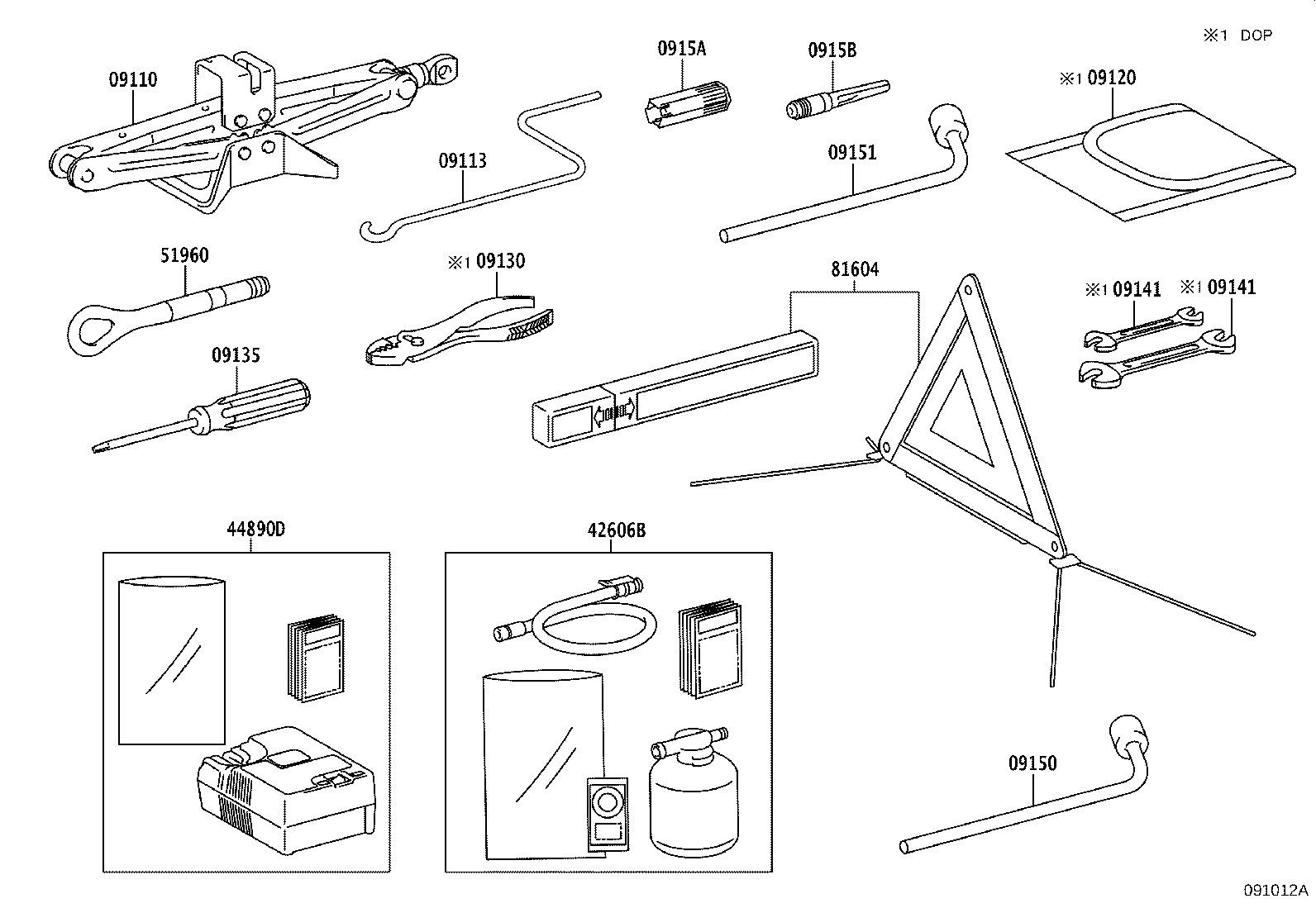

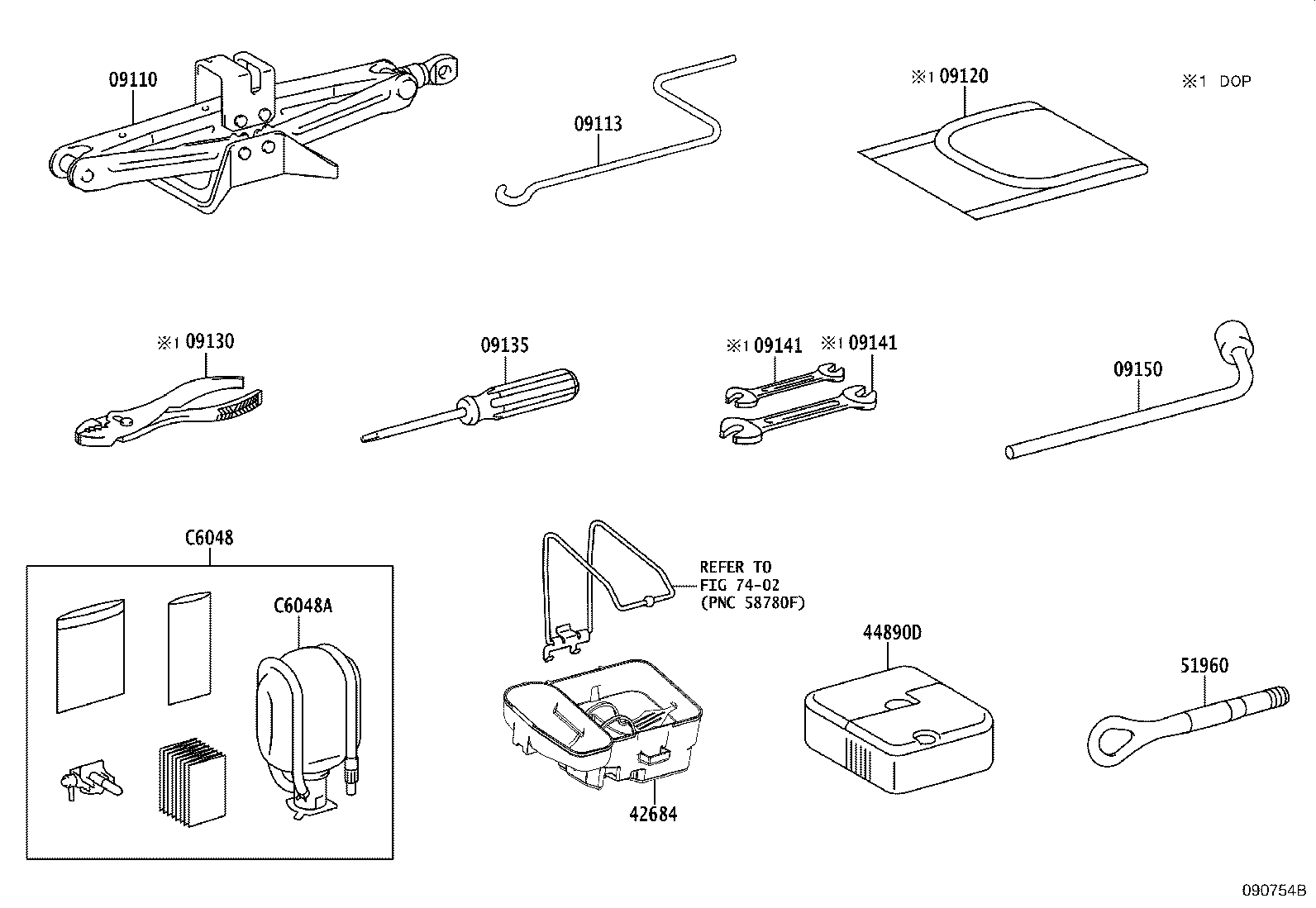

Figure 090808D 090808D 2014-09 → 2020-09 Figure 090754G 090754G 2014-09 → — Figure 091012A 091012A 2020-09 → —

Part groups

PNCDescription
09110 Jack Assy
09113 Handle, Jack
09120 Bag, Tool
09130 Pliers
09135 Driver, Screw
09141 Spanner
09150 Wrench, Hub Nut Box
09151 Wrench, Hub Bolt Box
0915A Socket, Hub Bolt Temporary Setting
0915B Pin, Wheel Guide
42606B Repair Kit, Tubeless Tire
42684 Case, Tire Repair Kit
44890D Compressor Assy, Air
51960 Hook Assy, Front
81604 Reflector Set, Triangle
C6048 Repair Set, Tire
C6048A Sealant, Repair Tire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
