Toyota Lexus RC3###/200T

2014-09 → present · chassis ASC10,AVC10,GSC10 · catalogue 245320 · General

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

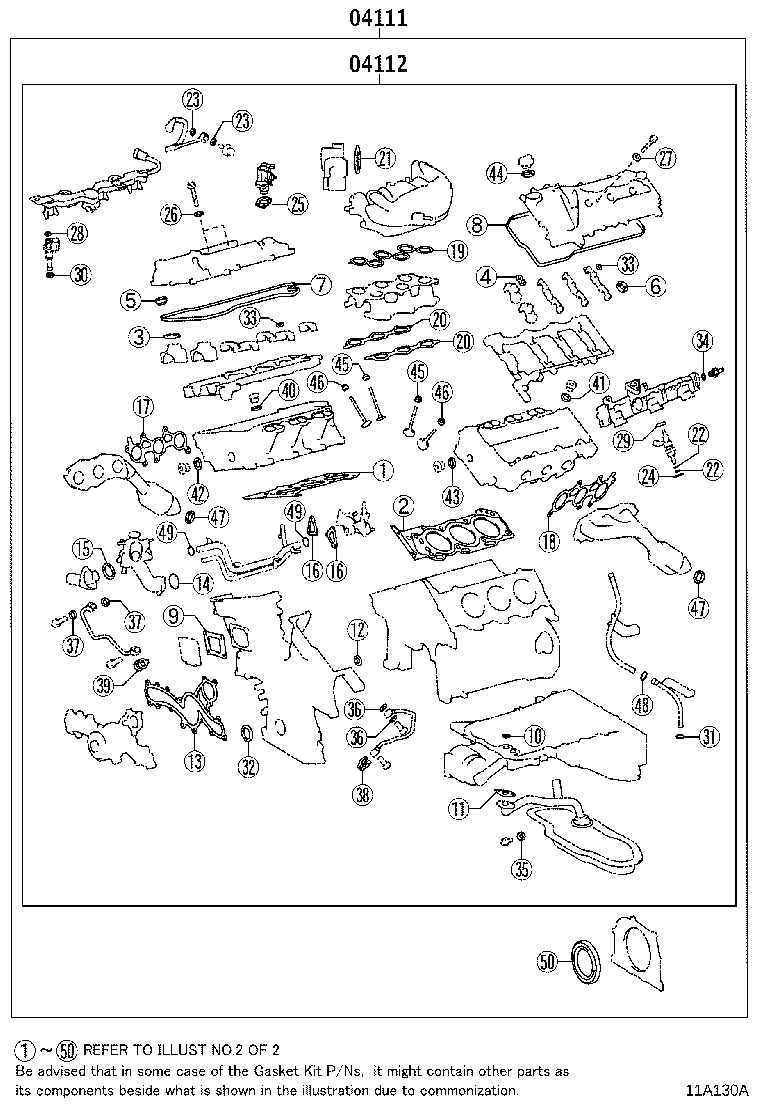

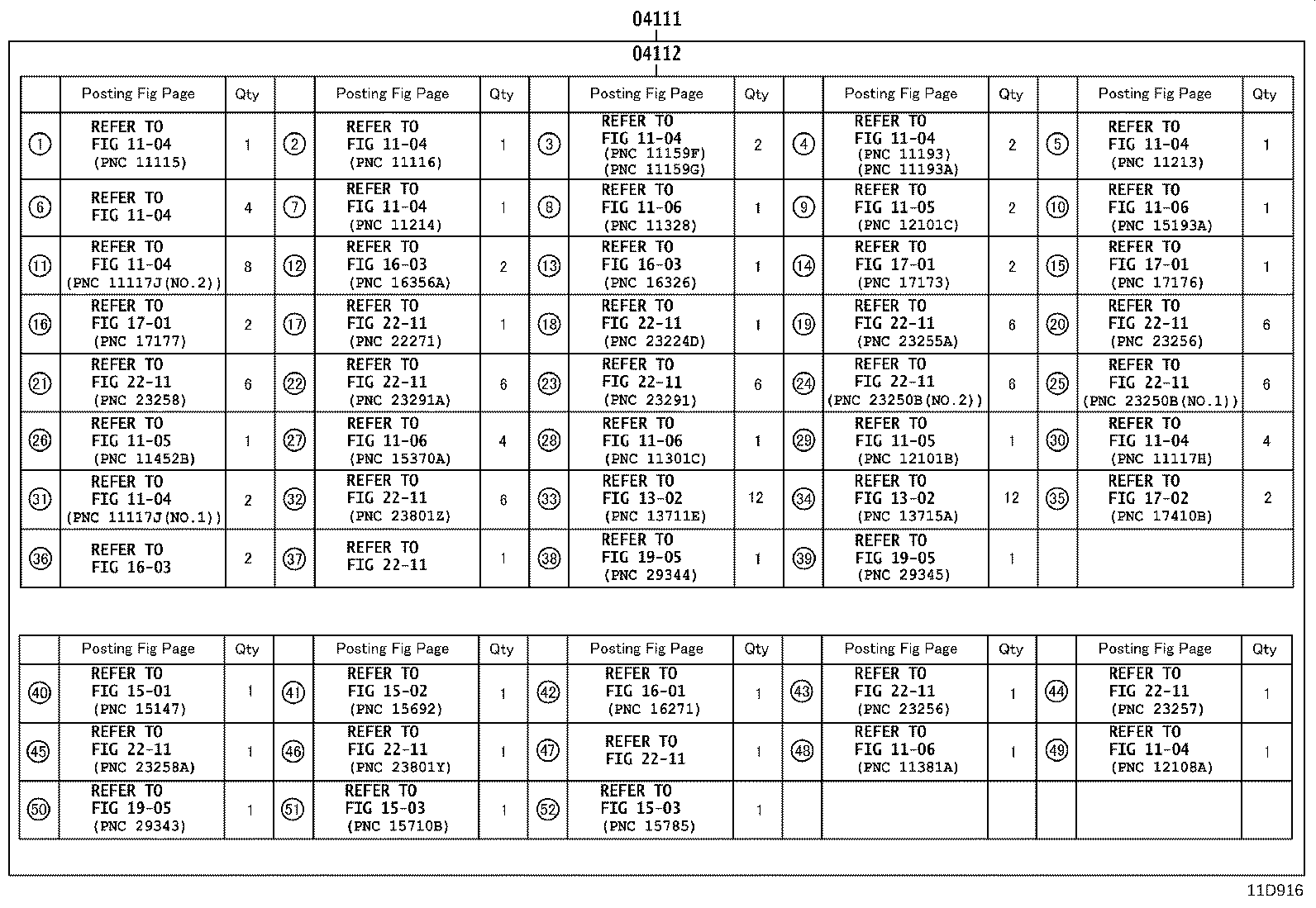

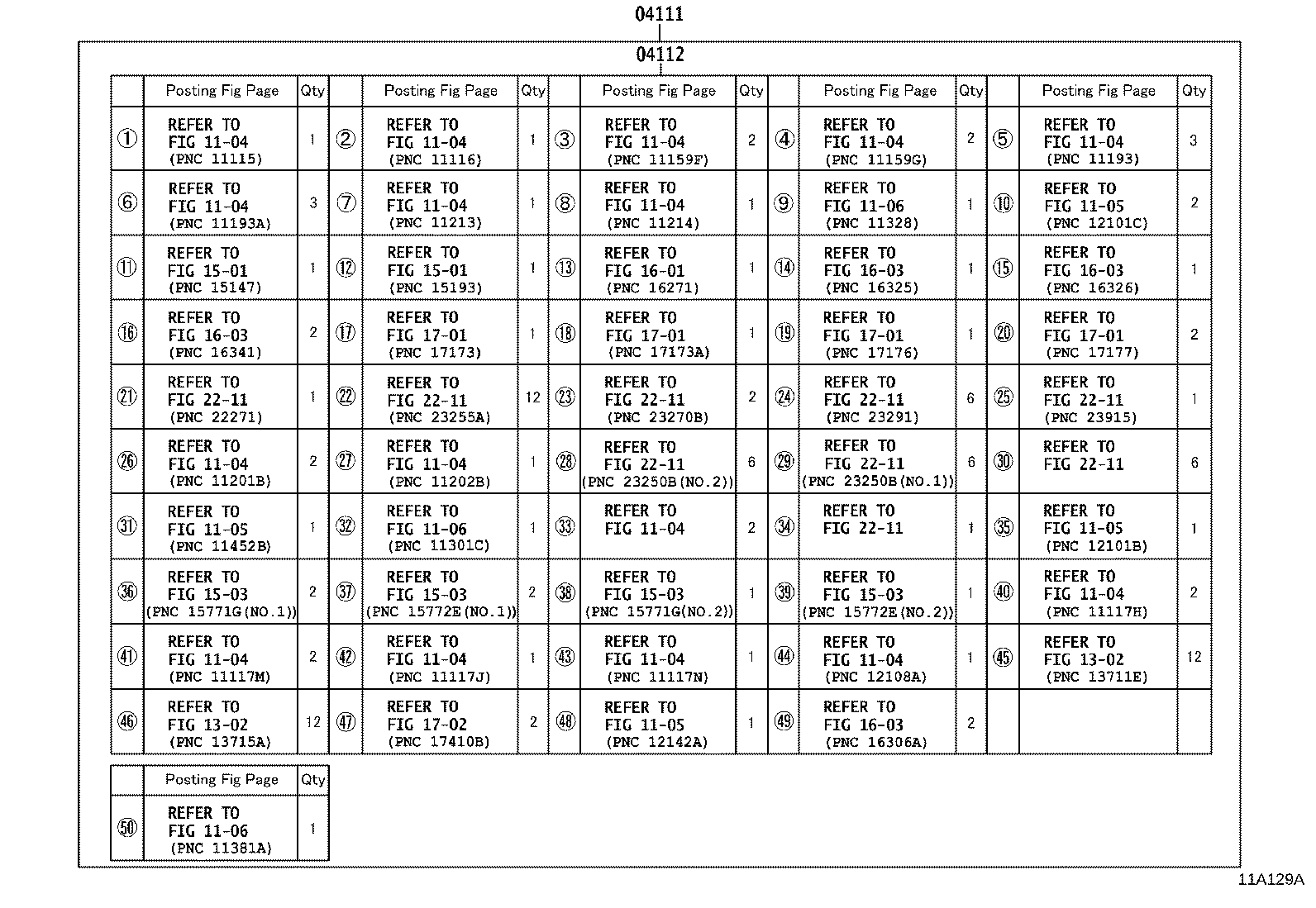

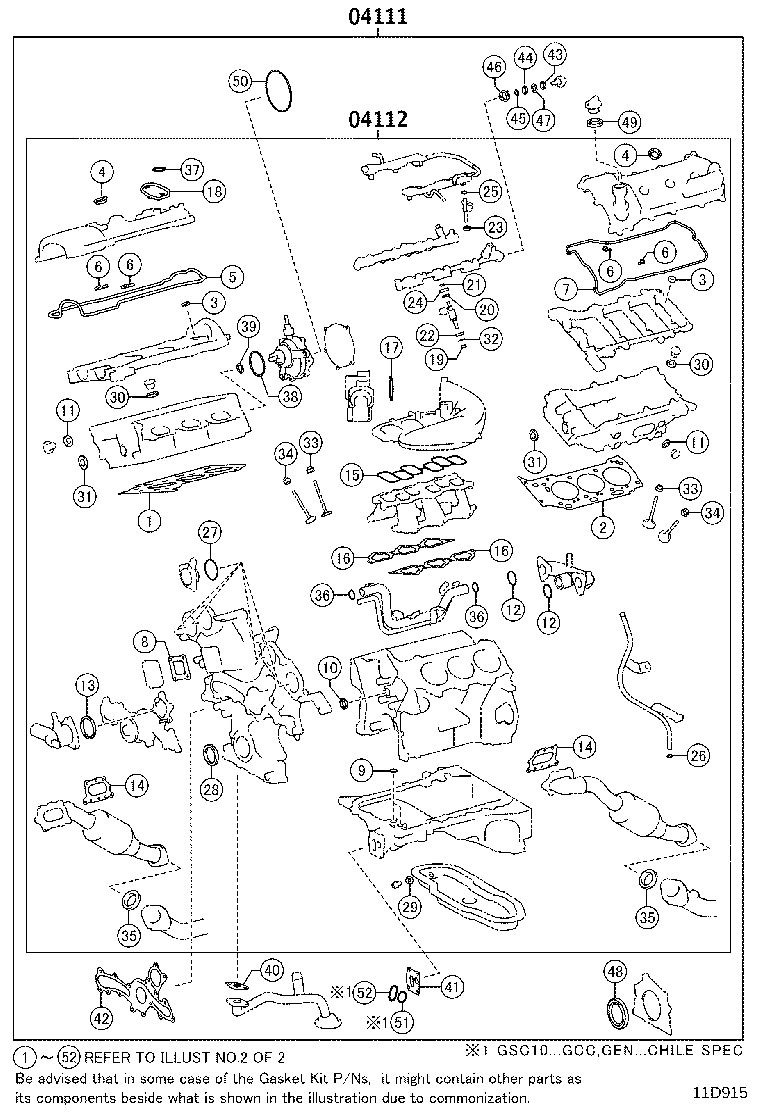

Figure 11A880 11A880 2015-10 → — Figure 11A883 11A883 2015-10 → — Figure 11A130A 11A130A 2014-09 → 2017-11 Figure 11A129A 11A129A 2014-09 → 2017-11 Figure 11D915 11D915 2017-11 → — Figure 11D916 11D916 2017-11 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
