Toyota Lexus RC3###/200T
2014-09 → present · chassis ASC10,AVC10,GSC10 · catalogue 245320 · General
Supported model
Data version 2018-12

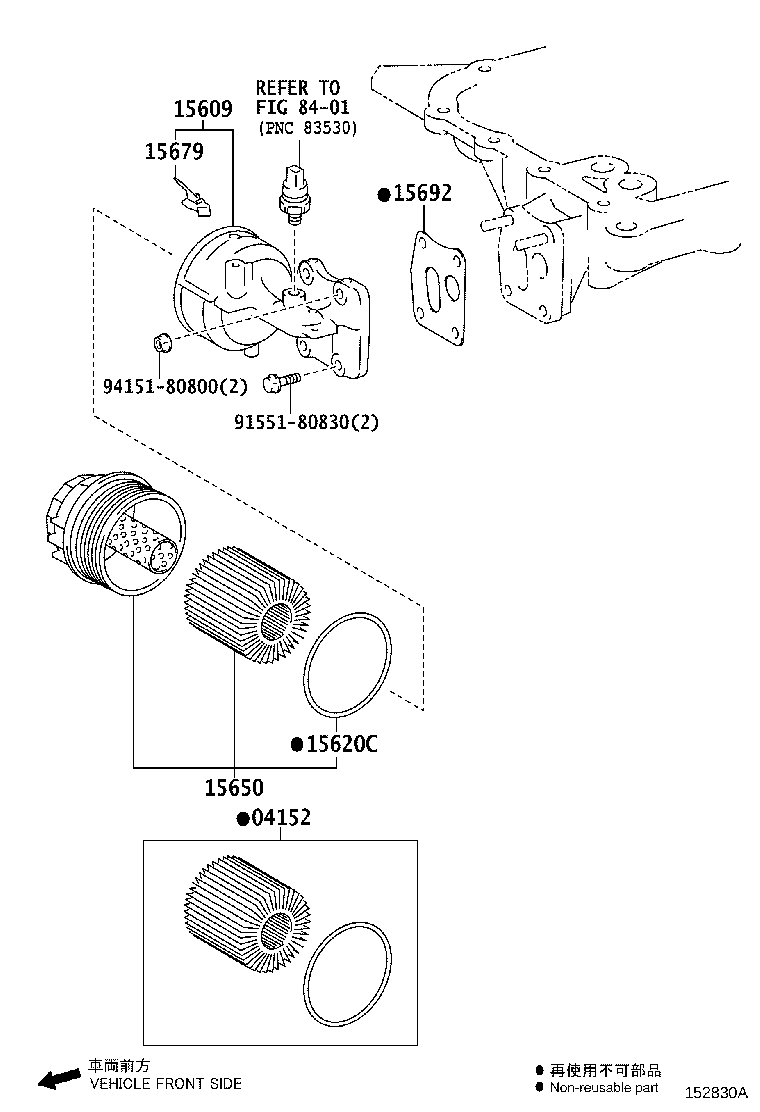

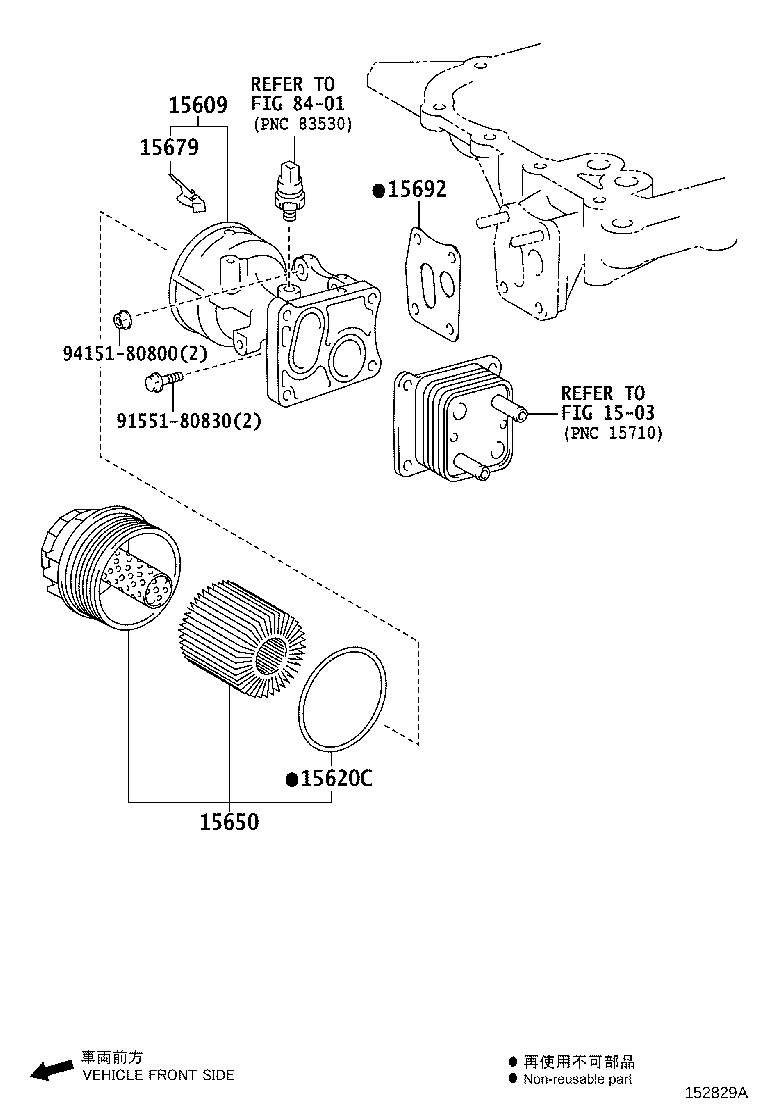

Oil Filter
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04152 | Element Kit, Oil Filter |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15620 | Cap Assy, Oil Filter |
| 15620C | Gasket(FOR OIL FILTER CAP) |
| 15643 | Plug, Oil Filter Drain |
| 15643A | Ring, O(FOR OIL FILTER DRAIN PLUG) |
| 15650 | Cap Assy, Oil Filter W/Elememt |
| 15679 | Clip, Oil Filter Bracket |
| 15692 | Gasket, Oil Filter Bracket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
