Water Pump

7 part groups · 4 illustrations

Illustrations

Figure 165726B

165726B 2015-10 → —

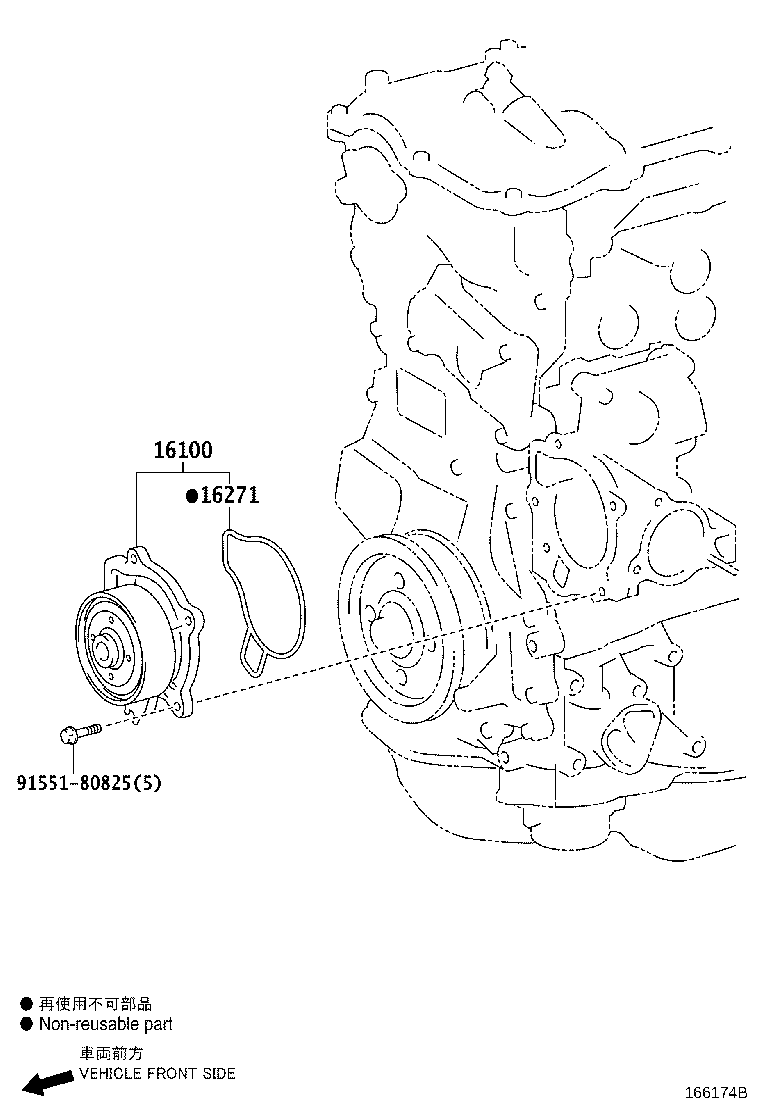

Figure 166174B

166174B 2015-10 → —

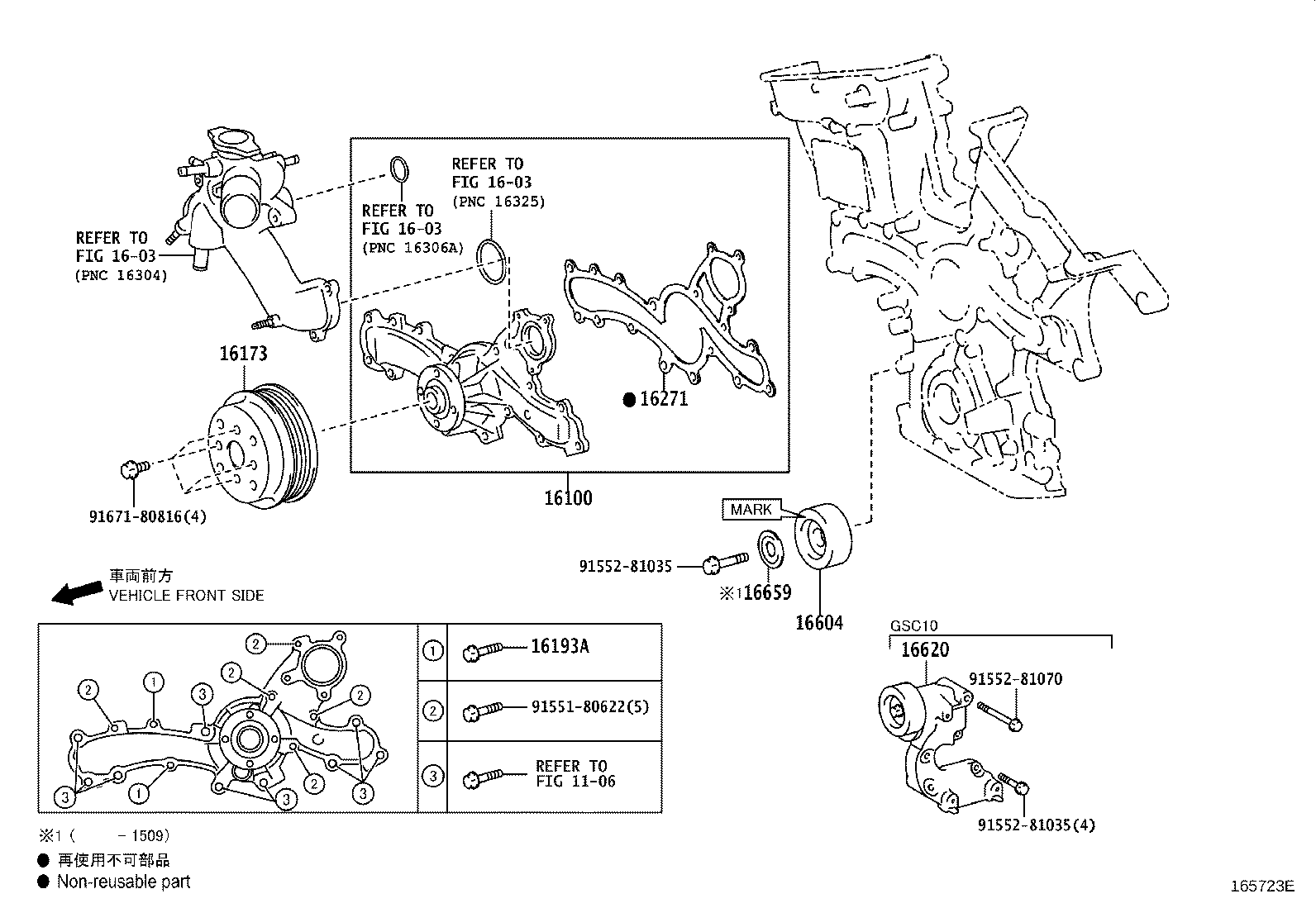

Figure 165723E

165723E 2014-09 → 2017-11

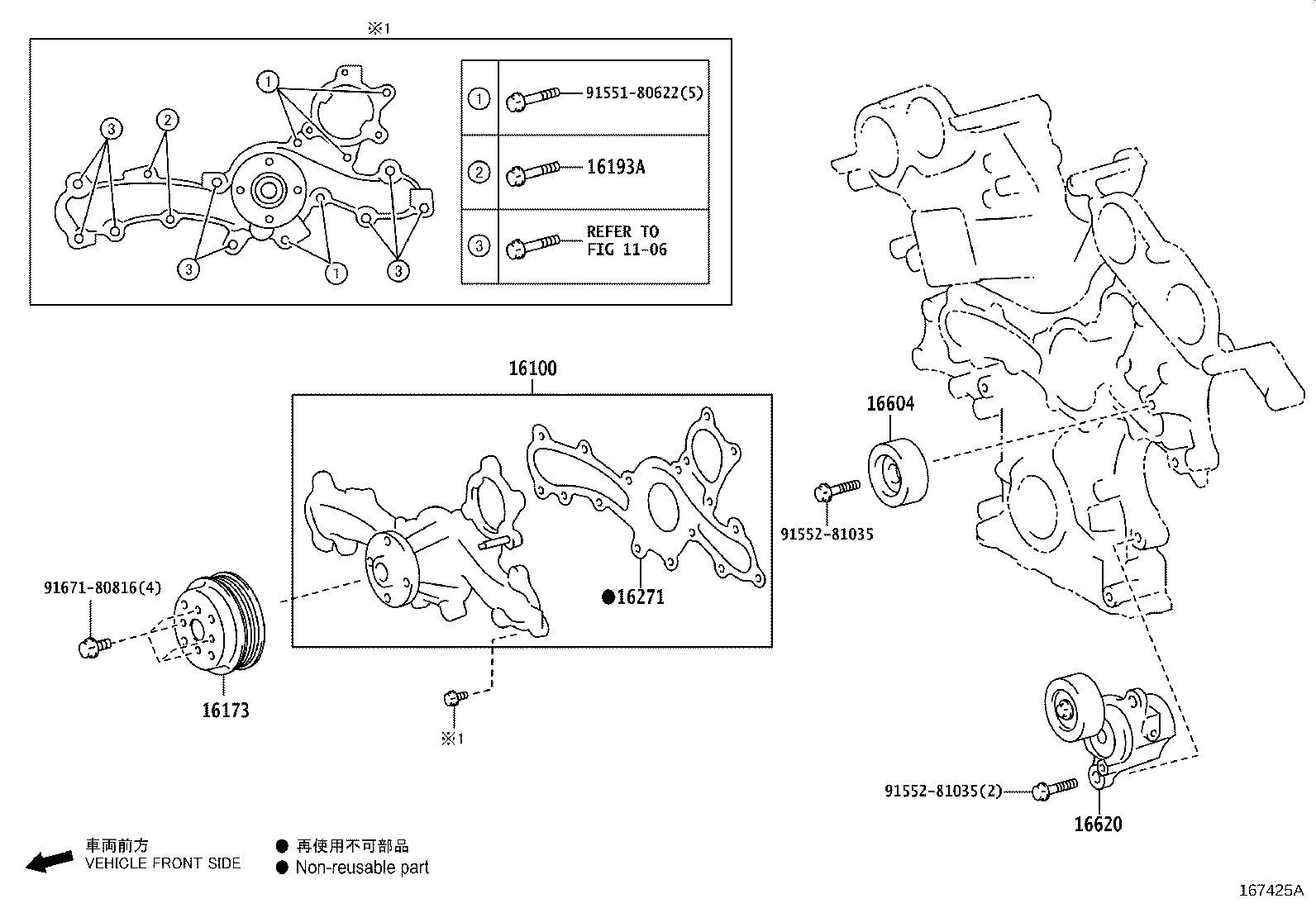

Figure 167425A

167425A 2017-11 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16193A	Bolt(FOR WATER PUMP COVER)
16271	Gasket, Water Pump
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt
16659	Plate, Idler Pulley Cover, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
