Toyota Lexus RC3###/200T

2014-09 → present · chassis ASC10,AVC10,GSC10 · catalogue 245320 · General

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

14 part groups · 2 illustrations

Illustrations

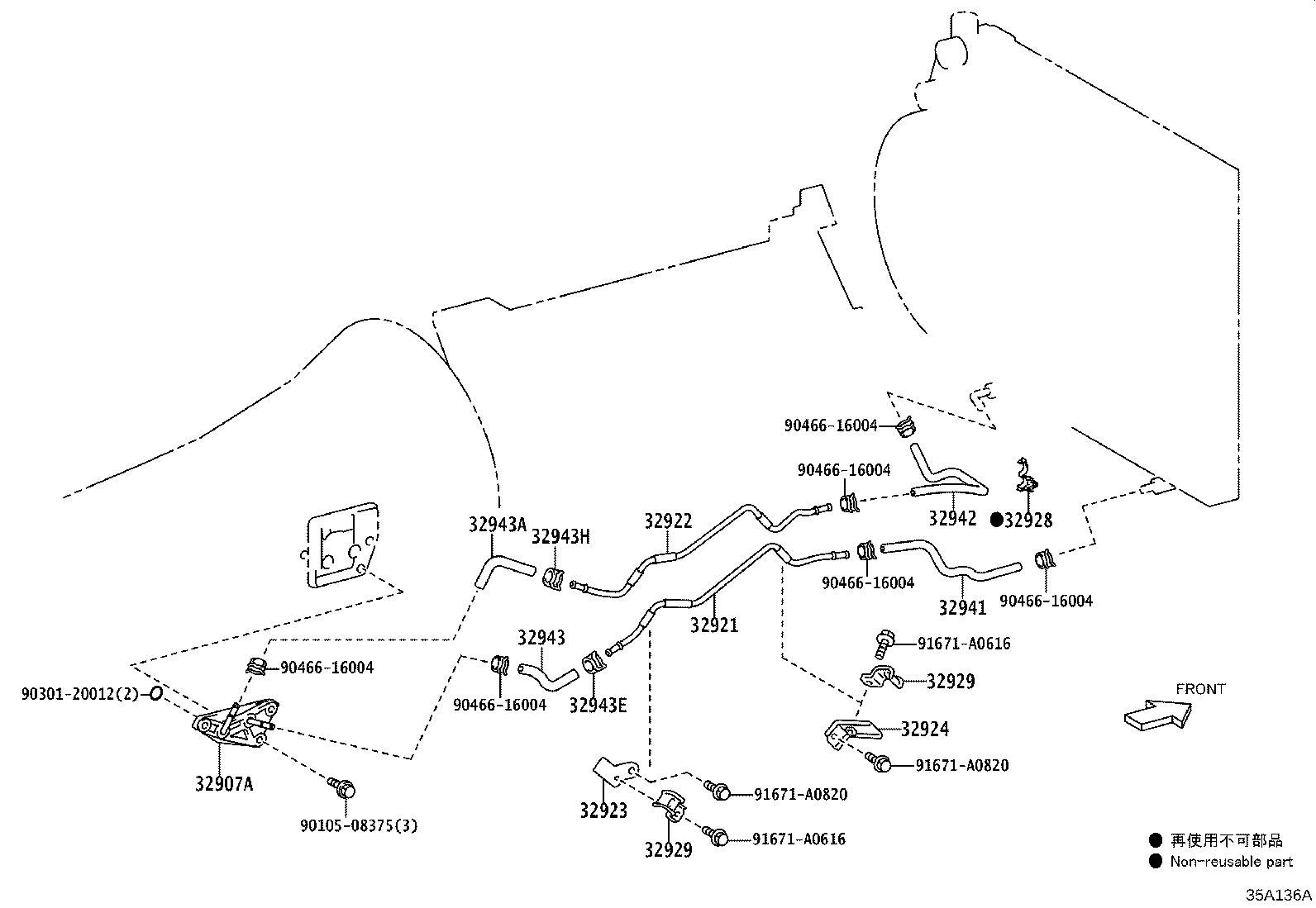

Figure 358967B 358967B 2014-09 → — Figure 35A136A 35A136A 2017-11 → —

Part groups

PNCDescription
32907A Tube, Oil Cooler
32921 Tube, Oil Cooler Inlet, NO.1
32922 Tube, Oil Cooler Outlet, NO.1
32923 Clamp, Automatic Transmission Oil Cooler Tube
32924 Clamp, Oil Cooler Tube, NO.2
32928 Clamp, Flexible Hose, NO.1
32929 Clamp, Flexible Hose, NO.2
32941 Hose, Oil Cooler Inlet, NO.1
32942 Hose, Oil Cooler Outlet, NO.1
32943 Hose, Transmission Oil Cooler, NO.1
32943A Hose, Transmission Oil Cooler, NO.2
32943E Clip, NO.3(FOR OIL COOLER HOSE)
32943H Clip, NO.4(FOR OIL COOLER HOSE)
33493A Cooler, Transmission Oil(ATF WARMER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
