Toyota Lexus RC3###/200T

2014-09 → present · chassis ASC10,AVC10,GSC10 · catalogue 245320 · General

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

4 part groups · 4 illustrations

Illustrations

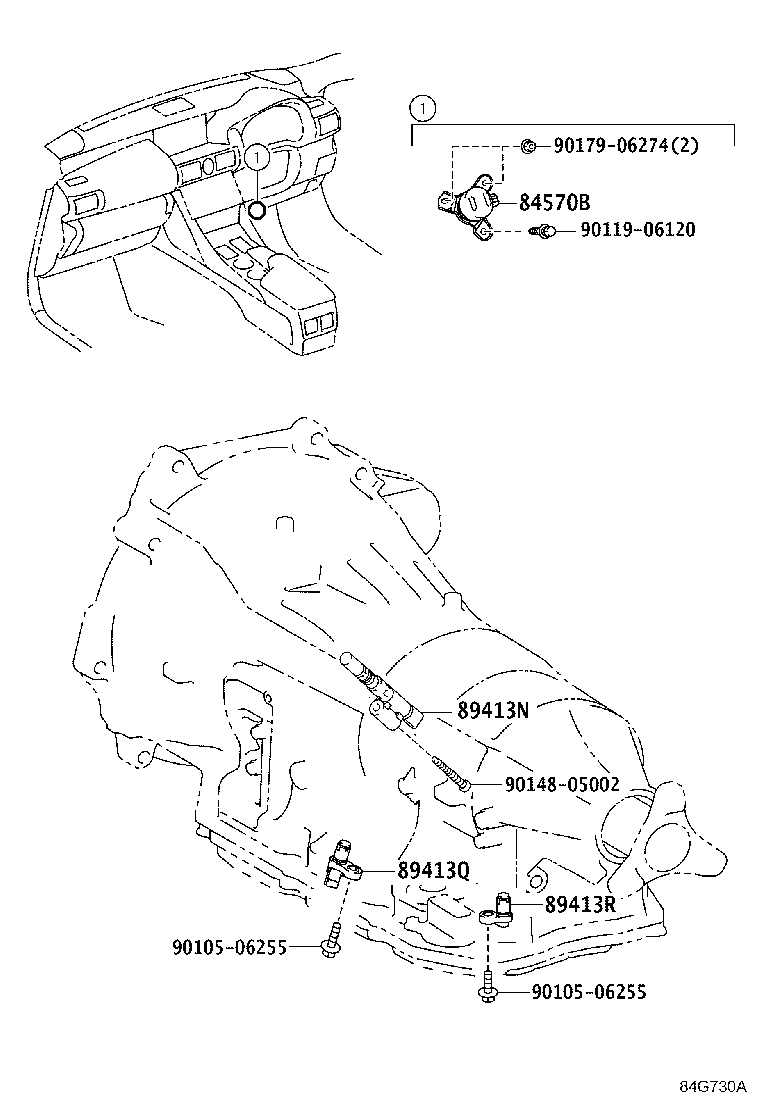

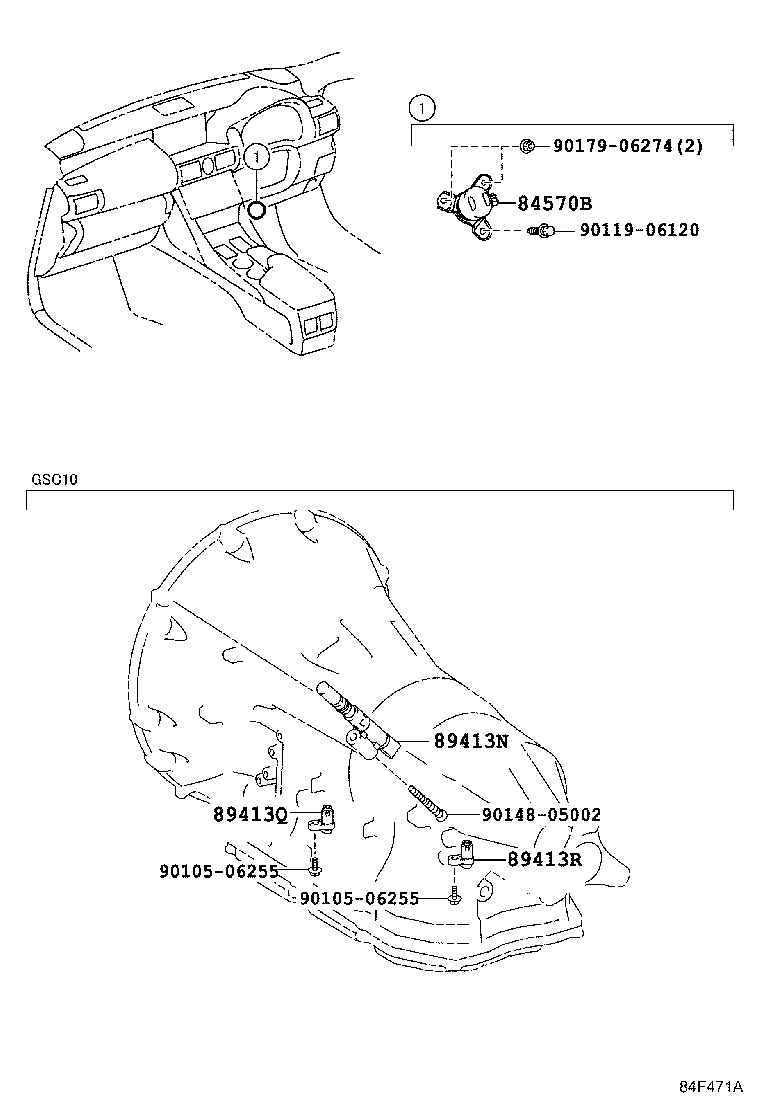

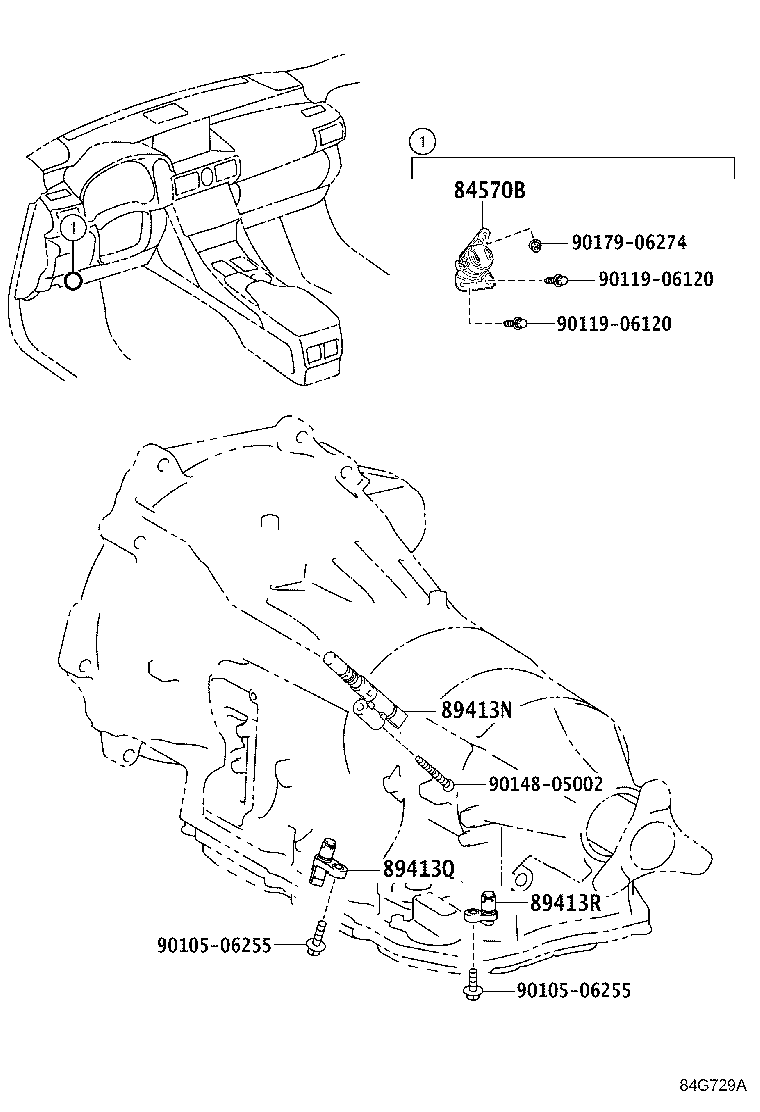

Figure 84F303B 84F303B 2014-09 → — Figure 84F471A 84F471A 2014-09 → — Figure 84G729A 84G729A 2015-10 → — Figure 84G730A 84G730A 2015-10 → —

Part groups

PNCDescription
84570B Switch Assy, Kick Down
89413N Sensor, Transmission Revolution, (NT)
89413Q Sensor, Transmission Revolution (NC3)
89413R Sensor, Transmission Revolution (SP2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
