Toyota Lexus IS250C/300C

2009-04 → 2015-07 · chassis GSE2# · catalogue 246310 · General

Supported model Data version 2016-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

5 part groups · 3 illustrations

Illustrations

831491 2009-04 → —

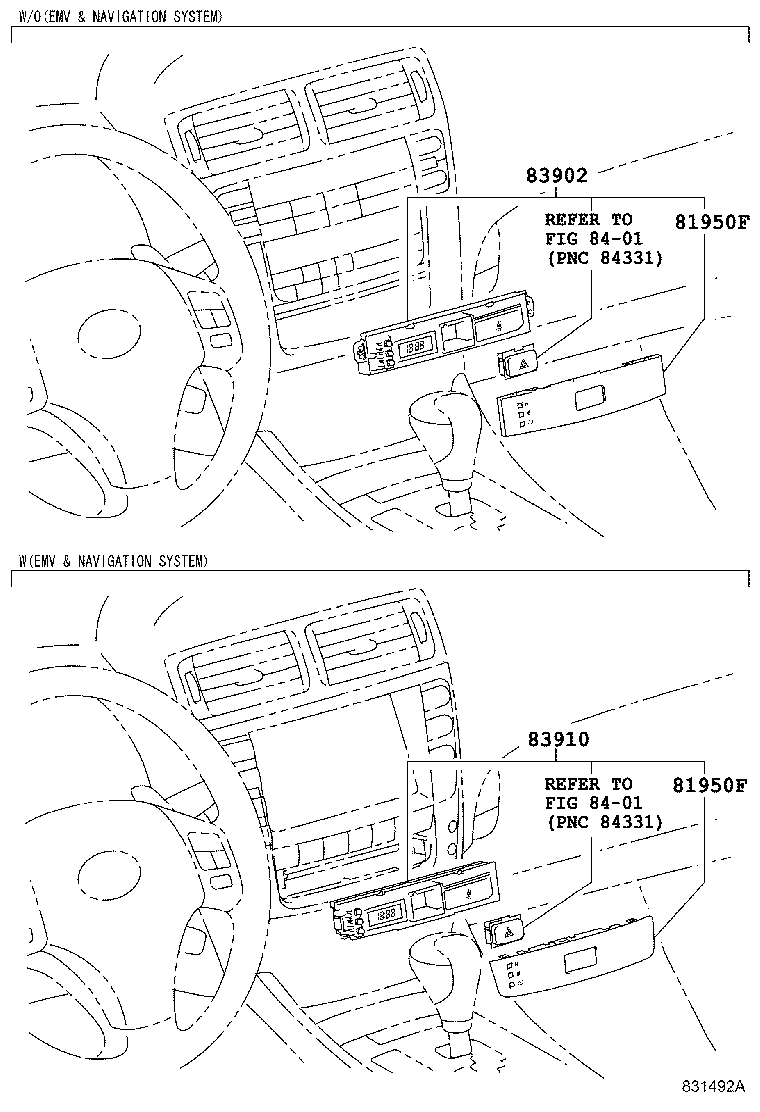

Figure 831492A

831492A 2009-04 → —

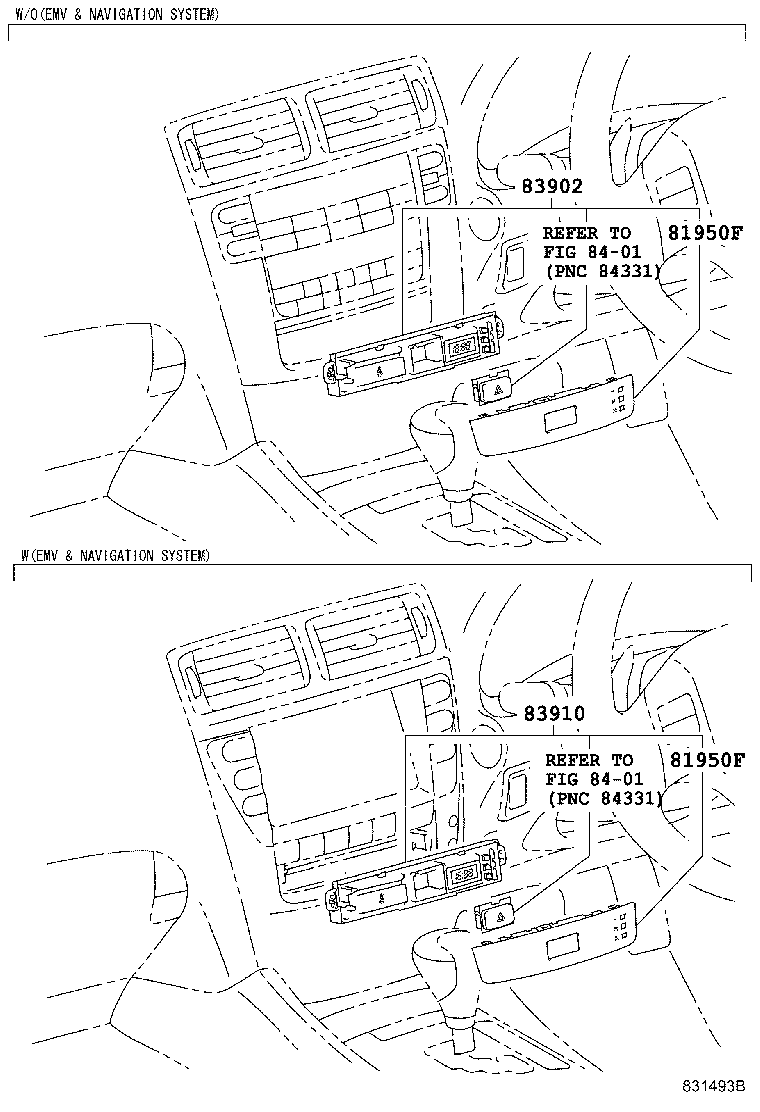

Figure 831493B

831493B 2009-04 → —

Part groups

PNC	Description
81950F	Lens Assy, Clock & Indicator
83100	Meter Assy, Combination
83138G	Glass, Combination Meter
83902	Clock Sub-assy
83910	Clock Assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
