Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · General

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

17 part groups · 3 illustrations

Illustrations

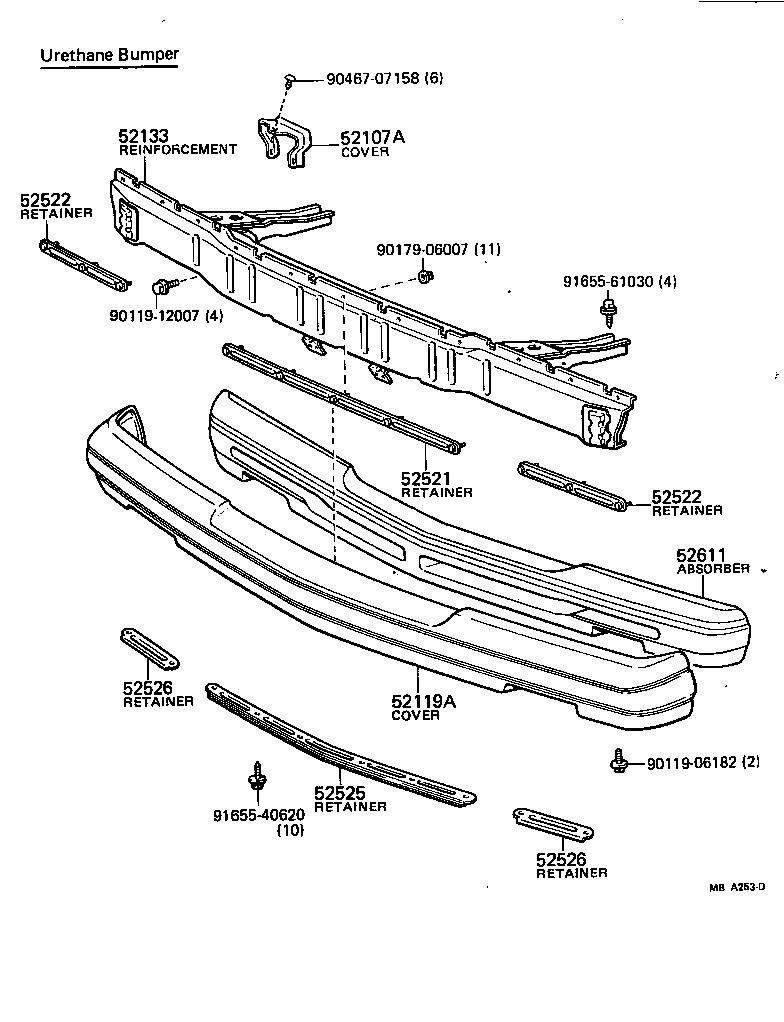

Figure MB7414D MB7414D 1977-08 → 1979-08 Figure MBA254A MBA254A 1979-08 → — Figure MBA253D MBA253D 1979-08 → —

Part groups

PNCDescription
52051 Pad Sub-assy, Front Bumper, RH
52052 Pad Sub-assy, Front Bumper, LH
52053 Pad Sub-assy, Front Bumper
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52107A Cover, Front Bumper Arm Hole
52111 Bumper Assy, Front
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52119A Cover, Front Bumper
52133 Reinforcement, Front Bumper
52501 Filler Sub-assy, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52611 Absorber, Front Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
