Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · General

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

12 part groups · 4 illustrations

Illustrations

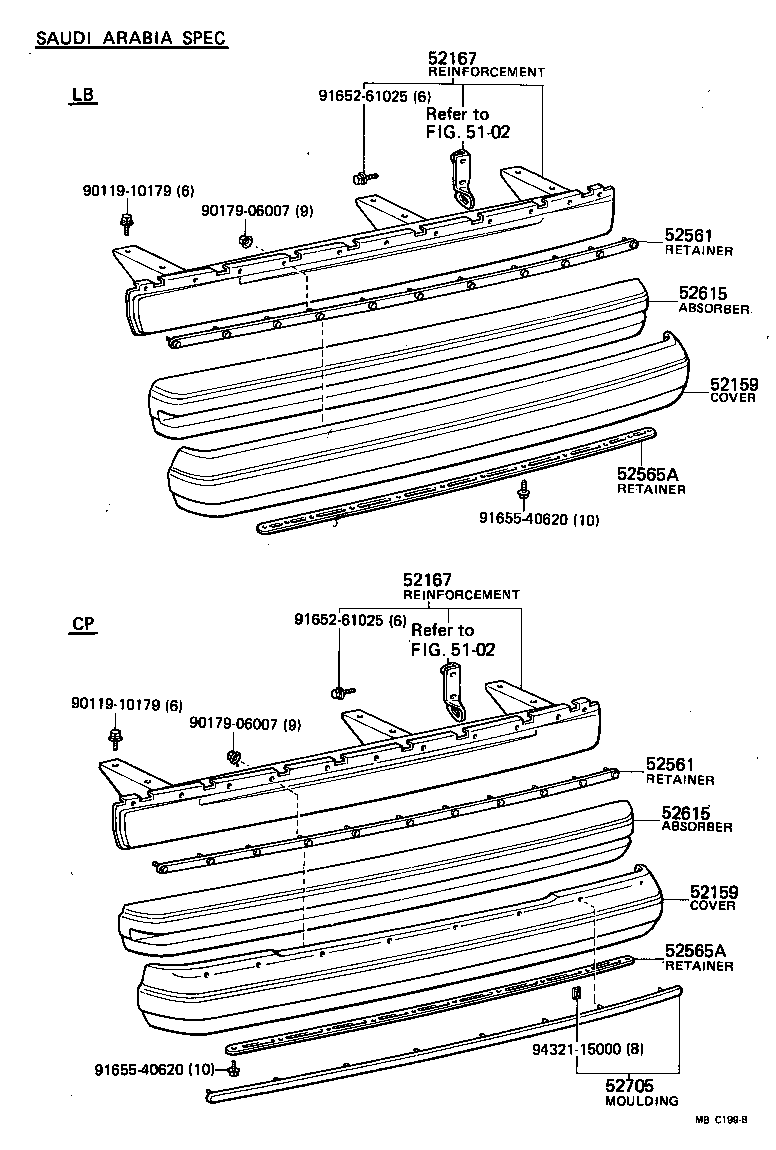

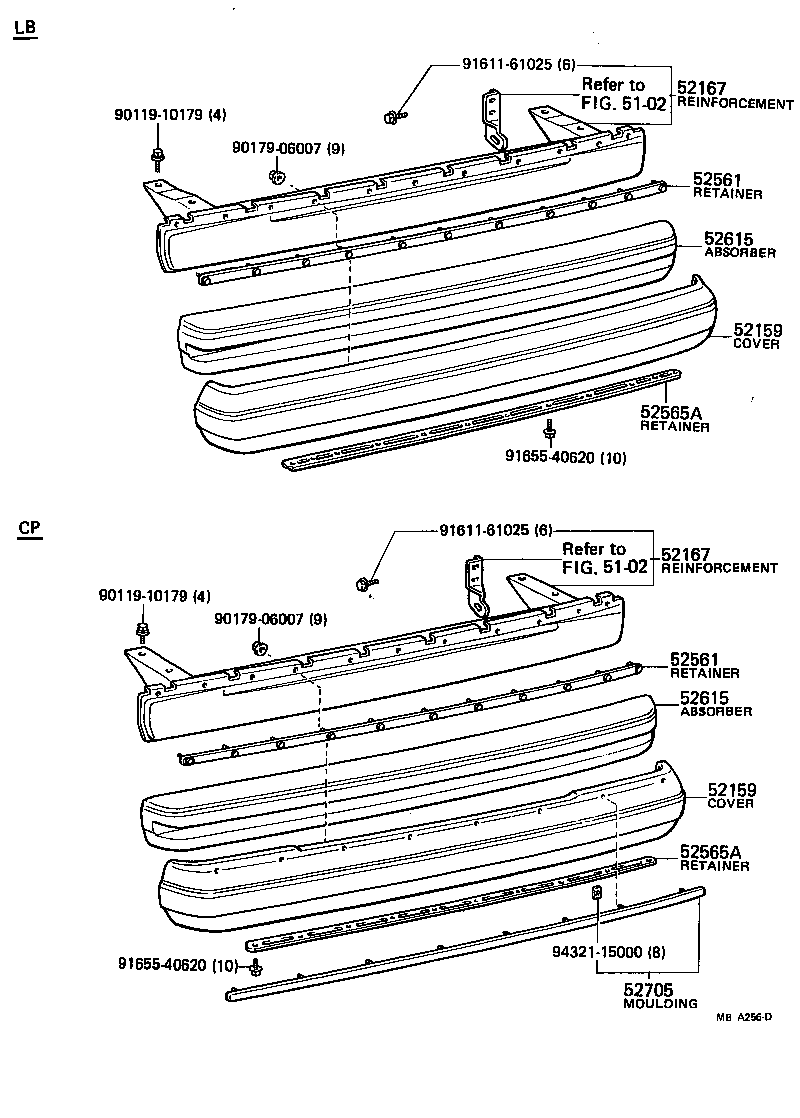

Figure MBA255 MBA255 1977-08 → 1979-08 Figure MBA257B MBA257B 1979-08 → — Figure MBA256D MBA256D 1979-08 → — Figure MBC199B MBC199B 1980-12 → —

Part groups

PNCDescription
52055 Pad Sub-assy, Rear Bumper
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52151 Bumper Assy, Rear
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52159 Cover, Rear Bumper
52167 Reinforcement, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
52705 Moulding Sub-assy, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
