Toyota Celica
1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · General
Discontinued model
Data version 1986-05

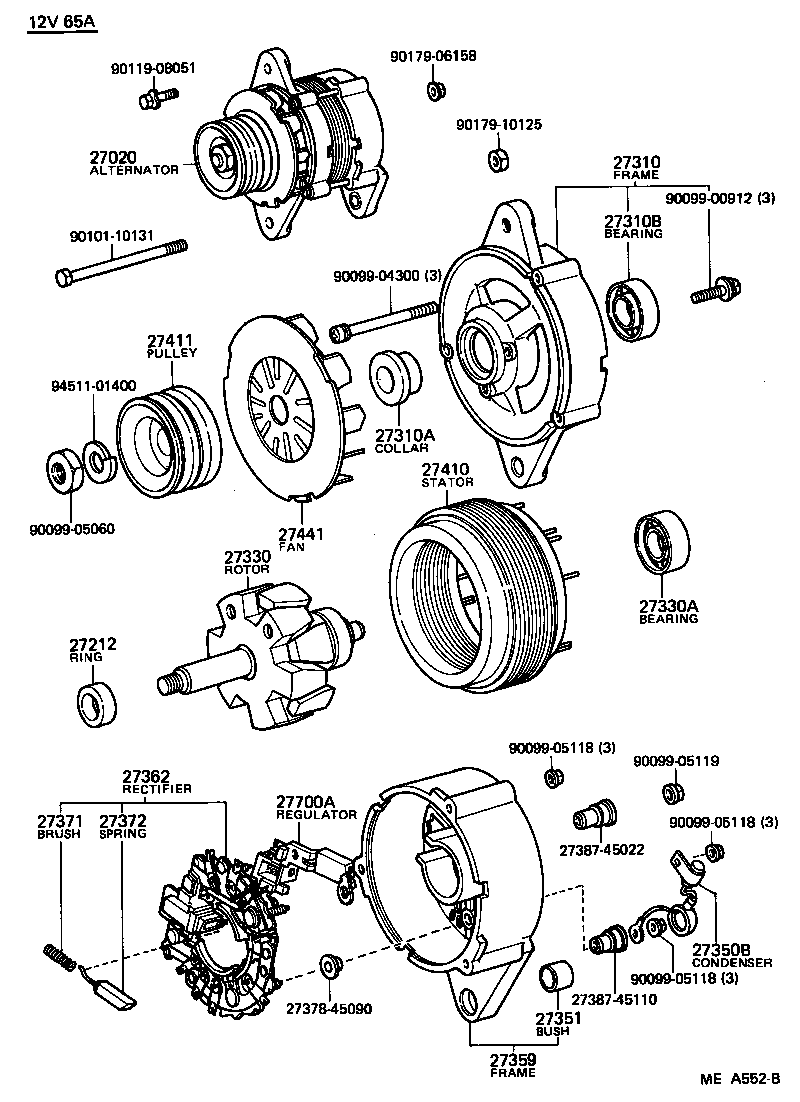

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27020-26121 note |
Alternator Assy
1981-08 → 1983-08
ended
|
18RG RA63 | — | |
| 27020-34021 note |
Alternator Assy
1981-08 → 1983-08
ended
|
21RC RA60;21R#,2T# RA60,61,TA60 LHD | — | |
| 27020-34021 note |
Alternator Assy
1983-08 → 1984-08
ended
|
21RC RA61 | — | |
| 27020-34051 note |
Alternator Assy
1981-08 → 1984-08
ended
|
21R,2T# RA60,61,TA60 LHD | — | |
| 27020-34051 note |
Alternator Assy
1981-08 → 1983-08
ended
|
21RC RA60 | — | |
| 27020-34051 note |
Alternator Assy
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 27020-63010 note |
Alternator Assy
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 27060-16010 note |
Alternator Assy
1983-08 → 1985-07
ended
|
4AGE AA63 | — | |
| 27060-35040 note |
Alternator Assy
1981-08 → 1984-08
ended
|
21R RA60,61 RHD | — | |
| 27060-35060 note |
Alternator Assy
1984-08 → 1985-07
ended
|
21R#,22REC RA6# | — | |
| 27060-43030 note |
Alternator Assy
1981-12 → 1983-08
ended
|
5MGE MA61 | — | |
| 27060-43060 note |
Alternator Assy
1983-08 → 1985-12
ended
|
5M# MA61 | — | |
| 27212 — Ring, Space(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 note |
Ring, Space(FOR ALTERNATOR ROTOR)
1981-08 → 1983-08
ended
|
21R#,18RG,5MGE,2T# MA61,RA6#,TA60 | — | |
| 27412-45070 note |
Ring, Space(FOR ALTERNATOR ROTOR)
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 27412-45070 note |
Ring, Space(FOR ALTERNATOR ROTOR)
1983-08 → 1984-08
ended
|
21R#,2SC,2TB RA61,SA63,TA60 | — | |
| 27310 — Frame Assy, Drive End, Alternator | ||||
| 27310-16010 note |
Frame Assy, Drive End, Alternator
1983-08 → 1985-01
ended
|
4AGE AA63 | — | |
| 27310-16011 note |
Frame Assy, Drive End, Alternator
1985-01 → 1985-07
ended
|
4AGE AA63 | — | |
| 27310-34050 note |
Frame Assy, Drive End, Alternator
1981-08 → 1984-08
ended
|
21RC,18RG RA60,63;21R#,2T# RA60,61,TA60 LHD | — | |
| 27310-34050 note |
Frame Assy, Drive End, Alternator
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 27310-35060 note |
Frame Assy, Drive End, Alternator
1984-08 → 1985-01
ended
|
21R#,22REC RA6# | — | |
| 27310-35061 note |
Frame Assy, Drive End, Alternator
1985-01 → 1985-07
ended
|
21R#,22REC RA6# | — | |
| 27310-38061 note |
Frame Assy, Drive End, Alternator
1981-08 → 1984-08
ended
|
21R RA60,61 RHD | — | |
| 27310-43040 note |
Frame Assy, Drive End, Alternator
1981-12 → 1983-08
ended
|
5MGE MA61 | — | |
| 27310-43100 note |
Frame Assy, Drive End, Alternator
1985-01 → 1985-12
ended
|
5M# MA61 | — | |
| 27310-63010 note |
Frame Assy, Drive End, Alternator
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 27310-72010 note |
Frame Assy, Drive End, Alternator
1983-08 → 1983-09
ended
|
5M# MA61 | — | |
| 27310-72050 note |
Frame Assy, Drive End, Alternator
1983-09 → 1984-08
ended
|
5M# MA61 | — | |
| 27310-72090 note |
Frame Assy, Drive End, Alternator
1984-08 → 1985-01
ended
|
5M# MA61 | — | |
| 27310A — Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 note |
Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME)
1981-08 → 1983-08
ended
|
21R#,18RG,5MGE,2T# MA61,RA6#,TA60 | — | |
| 27412-31040 note |
Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME)
1983-08 → 1984-08
ended
|
21R#,2SC,2TB RA61,SA63,TA60 | — | |
| 27412-31040 note |
Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME)
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 27412-63020 note |
Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME)
1983-08 → 1985-07
ended
|
4AGE AA63 | — | |
| 27310B — Bearing(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1981-08 → 1983-08
ended
|
21R#,18RG,5MGE,2T# MA61,RA6#,TA60 | — | |
| 90099-10125 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 90099-10125 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1983-08 → 1984-08
ended
|
21R#,2SC,2TB RA61,SA63,TA60 | — | |
| 90099-10141 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1983-08 → 1983-09
ended
|
4AGE,5M# AA63,MA61 | — | |
| 90099-10152 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1983-09 → 1985-01
ended
|
4AGE,5M# AA63,MA61 | — | |
| 90099-10152 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1984-08 → 1985-01
ended
|
21R#,22REC RA6# | — | |
| 90099-10159 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1985-01 → 1985-12
ended
|
21R#,22REC,4AGE,5M# AA63,MA61,RA6# | — | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-15070 note |
Rotor Assy, Alternator
1981-08 → 1984-08
ended
|
21R RA60,61 RHD | — | |
| 27330-43040 note |
Rotor Assy, Alternator
1981-12 → 1983-08
ended
|
5MGE MA61 | — | |
| 27330-45070 note |
Rotor Assy, Alternator
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 27330-45070 note |
Rotor Assy, Alternator
1982-08 → 1984-08
ended
|
21R,2T# RA60,61,TA60 LHD | — | |
| 27330-45070 note |
Rotor Assy, Alternator
1982-08 → 1983-08
ended
|
18RG RA63 | — | |
| 27330-45070 note |
Rotor Assy, Alternator
1981-08 → 1982-08
ended
|
21RC,18RG RA60,63;21R#,2T# RA60,61,TA60 LHD | — | |
| 27330-63010 note |
Rotor Assy, Alternator
1983-08 → 1984-08
ended
|
21RC,2SC RA61,SA63 | — | |
| 27330-63010 note |
Rotor Assy, Alternator
1982-08 → 1983-08
ended
|
21RC RA60;21R#,2T# RA60,61,TA60 LHD | — | |
| 27330-63021 note |
Rotor Assy, Alternator
1983-08 → 1985-01
ended
|
4AGE,5M# AA63,MA61 | — | |
| 27330-63021 note |
Rotor Assy, Alternator
1984-08 → 1985-01
ended
|
21R#,22REC RA6# | — | |
| 27330-72100 note |
Rotor Assy, Alternator
1985-01 → 1985-12
ended
|
21R#,22REC,4AGE,5M# AA63,MA61,RA6# | — | |
| 27330A — Bearing(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 note |
Bearing(FOR ALTERNATOR ROTOR)
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 90099-10116 note |
Bearing(FOR ALTERNATOR ROTOR)
1983-08 → 1984-08
ended
|
21R#,2SC,2TB RA61,SA63,TA60 | — | |
| 90099-10116 note |
Bearing(FOR ALTERNATOR ROTOR)
1981-08 → 1983-08
ended
|
21R#,18RG,5MGE,2T# MA61,RA6#,TA60 | — | |
| 90099-10140 note |
Bearing(FOR ALTERNATOR ROTOR)
1984-08 → 1985-07
ended
|
21R#,22REC RA6# | — | |
| 90099-10140 note |
Bearing(FOR ALTERNATOR ROTOR)
1983-08 → 1985-12
ended
|
4AGE,5M# AA63,MA61 | — | |
| 27350B — Condenser, Alternator | ||||
| 90099-52065 note |
Condenser, Alternator
1981-08 → 1983-08
ended
|
21R#,18RG,5MGE,2T# MA61,RA6#,TA60 | — | |
| 90099-52065 note |
Condenser, Alternator
1983-08 → 1984-08
ended
|
21R#,2SC,2TB RA61,SA63,TA60 | — | |
| 90099-52065 note |
Condenser, Alternator
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 27351 — Bush(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 note |
Bush(FOR ALTERNATOR RECTIFIER END FRAME)
1981-08 → 1983-08
ended
|
21R#,18RG,5MGE,2T# MA61,RA6#,TA60 | — | |
| 27351-38051 note |
Bush(FOR ALTERNATOR RECTIFIER END FRAME)
1983-08 → 1984-08
ended
|
21R#,2SC,2TB RA61,SA63,TA60 | — | |
| 27351-38051 note |
Bush(FOR ALTERNATOR RECTIFIER END FRAME)
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 27359 — Frame, Alternator Rectifier End | ||||
| 27359-16010 note |
Frame, Alternator Rectifier End
1983-08 → 1984-04
ended
|
4AGE,5M# AA63,MA61 | — | |
| 27359-16011 note |
Frame, Alternator Rectifier End
1984-04 → 1985-07
ended
|
4AGE AA63 | — | |
| 27359-16011 note |
Frame, Alternator Rectifier End
1984-08 → 1985-07
ended
|
21R#,22REC RA6# | — | |
| 27359-24100 note |
Frame, Alternator Rectifier End
1981-08 → 1984-08
ended
|
21RC,18RG RA60,63;21R#,2T# RA60,61,TA60 LHD | — | |
| 27359-24100 note |
Frame, Alternator Rectifier End
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 27359-28030 note |
Frame, Alternator Rectifier End
1981-08 → 1982-11
ended
|
21R RA60,61 RHD | — | |
| 27359-34080 note |
Frame, Alternator Rectifier End
1982-11 → 1984-08
ended
|
21R RA60,61 RHD | — | |
| 27359-43020 note |
Frame, Alternator Rectifier End
1981-12 → 1983-08
ended
|
5MGE MA61 | — | |
| 27359-43050 note |
Frame, Alternator Rectifier End
1984-04 → 1985-12
ended
|
5M# MA61 | — | |
| 27359-63010 note |
Frame, Alternator Rectifier End
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 27362 — Rectifier Assy, W/Brush | ||||
| 27362-15021 note |
Rectifier Assy, W/Brush
1981-08 → 1983-08
ended
|
21RC RA60 | — | |
| 27362-15021 note |
Rectifier Assy, W/Brush
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 27362-15021 note |
Rectifier Assy, W/Brush
1981-08 → 1984-08
ended
|
21R,2T# RA60,61,TA60 LHD | — | |
| 27362-15070 note |
Rectifier Assy, W/Brush
1981-08 → 1984-08
ended
|
21R RA60,61 RHD | — | |
| 27362-34021 note |
Rectifier Assy, W/Brush
1981-08 → 1982-08
ended
|
21RC,18RG RA60,63;21R#,2T# RA60,61,TA60 LHD | — | |
| 27362-34021 note |
Rectifier Assy, W/Brush
1982-08 → 1983-08
ended
|
18RG RA63 | — | |
| 27362-34121 note |
Rectifier Assy, W/Brush
1983-08 → 1985-07
ended
|
21RC RA61 | — | |
| 27362-34121 note |
Rectifier Assy, W/Brush
1982-08 → 1983-08
ended
|
21RC RA60;21R#,2T# RA60,61,TA60 LHD | — | |
| 27362-43040 note |
Rectifier Assy, W/Brush
1981-12 → 1983-08
ended
|
5MGE MA61 | — | |
| 27362-63011 note |
Rectifier Assy, W/Brush
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 27371 — Brush, Alternator | ||||
| 27371-31011 note |
Brush, Alternator
1981-08 → 1983-08
ended
|
21R#,18RG,5MGE,2T# MA61,RA6#,TA60 | — | |
| 27371-31011 note |
Brush, Alternator
1983-08 → 1984-08
ended
|
21R#,2SC,2TB RA61,SA63,TA60 | — | |
| 27371-31011 note |
Brush, Alternator
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 27371-63020 note |
Brush, Alternator
1984-08 → 1985-07
ended
|
21R#,22REC RA6# | — | |
| 27371-63020 note |
Brush, Alternator
1983-08 → 1985-12
ended
|
4AGE,5M# AA63,MA61 | — | |
| 27372 — Spring, Alternator Brush | ||||
| 27372-31011 note |
Spring, Alternator Brush
1981-08 → 1983-08
ended
|
21R#,18RG,5MGE,2T# MA61,RA6#,TA60 | — | |
| 27372-31011 note |
Spring, Alternator Brush
1983-08 → 1984-08
ended
|
21R#,2SC,2TB RA61,SA63,TA60 | — | |
| 27372-31011 note |
Spring, Alternator Brush
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 27372-63020 note |
Spring, Alternator Brush
1983-08 → 1985-01
ended
|
4AGE,5M# AA63,MA61 | — | |
| 27372-63020 note |
Spring, Alternator Brush
1984-08 → 1985-01
ended
|
21R#,22REC RA6# | — | |
| 27372-72100 note |
Spring, Alternator Brush
1985-01 → 1985-12
ended
|
21R#,22REC,4AGE,5M# AA63,MA61,RA6# | — | |
| 27410 — Stator Assy, Alternator | ||||
| 27410-41080 note |
Stator Assy, Alternator
1981-08 → 1984-08
ended
|
21R RA61;21R#,2T# RA60,TA60 | — | |
| 27410-41080 note |
Stator Assy, Alternator
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 27410-43040 note |
Stator Assy, Alternator
1983-08 → 1984-08
ended
|
21RC,2SC RA61,SA63 | — | |
| 27410-43040 note |
Stator Assy, Alternator
1982-08 → 1983-08
ended
|
21RC RA60;21R#,2T# RA60,61,TA60 LHD | — | |
| 27410-43040 note |
Stator Assy, Alternator
1981-12 → 1983-08
ended
|
5MGE MA61 | — | |
| 27410-45120 note |
Stator Assy, Alternator
1981-08 → 1982-08
ended
|
21RC,18RG RA60,63;21R#,2T# RA60,61,TA60 LHD | — | |
| 27410-45120 note |
Stator Assy, Alternator
1982-08 → 1983-08
ended
|
18RG RA63 | — | |
| 27411 — Pulley, Alternator | ||||
| 27411-16010 note |
Pulley, Alternator
1983-08 → 1985-01
ended
|
4AGE AA63 | — | |
| 27411-16011 note |
Pulley, Alternator
1985-01 → 1985-07
ended
|
4AGE AA63 | — | |
| 27411-26111 note |
Pulley, Alternator
1981-08 → 1983-08
ended
|
18RG RA63 | — | |
| 27411-31042 note |
Pulley, Alternator
1981-08 → 1984-08
ended
|
21R#,2T# RA60,61,TA60 | — | |
| 27411-31042 note |
Pulley, Alternator
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 27411-35060 note |
Pulley, Alternator
1984-08 → 1985-01
ended
|
21R#,22REC RA6# | — | |
| 27411-35061 note |
Pulley, Alternator
1985-01 → 1985-07
ended
|
21R#,22REC RA6# | — | |
| 27411-41071 note |
Pulley, Alternator
1981-12 → 1983-08
ended
|
5MGE MA61 | — | |
| 27411-43050 note |
Pulley, Alternator
1983-08 → 1985-01
ended
|
5M# MA61 | — | |
| 27411-43120 note |
Pulley, Alternator
1985-01 → 1985-12
ended
|
5M# MA61 | — | |
| 27411-63011 note |
Pulley, Alternator
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 27441 — Fan, Alternator | ||||
| 27441-34030 note |
Fan, Alternator
1981-08 → 1984-08
ended
|
21RC,18RG RA60,63;21R#,2T# RA60,61,TA60 LHD | — | |
| 27441-34030 note |
Fan, Alternator
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 27441-44050 note |
Fan, Alternator
1981-12 → 1983-08
ended
|
5MGE MA61 | — | |
| 27441-63030 note |
Fan, Alternator
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 27441-70040 note |
Fan, Alternator
1981-08 → 1984-08
ended
|
21R RA60,61 RHD | — | |
| 27700A — Regulator Assy, Generator | ||||
| 27700-15060 |
Regulator Assy, Generator
1983-08 → 1984-08
ended
|
21RC RA61 | — | |
| 27700-15060 note |
Regulator Assy, Generator
1983-08 → 1984-08
ended
|
21R,2TB RA61,TA60 LHD EUG | — | |
| 27700-15060 note |
Regulator Assy, Generator
1984-08 → 1985-07
ended
|
2TB TA60 EUG | — | |
| 27700-43010 note |
Regulator Assy, Generator
1981-08 → 1983-08
ended
|
5MGE MA61;21R RA60,61 RHD | — | |
| 27700-43010 note |
Regulator Assy, Generator
1983-08 → 1984-08
ended
|
21R RA61 RHD | — | |
| 27700-63010 note |
Regulator Assy, Generator
1981-08 → 1983-08
ended
|
21RC,18RG RA60,63;21R#,2T# RA60,61,TA60 LHD | — | |
| 27700-63010 |
Regulator Assy, Generator
1983-08 → 1984-08
ended
|
21R,2TB RA61,TA60 LHD | — | |
| 27700-63010 note |
Regulator Assy, Generator
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 27700-63010 note |
Regulator Assy, Generator
1984-08 → 1985-07
ended
|
2TB TA60 | — | |
| 27700-63021 note |
Regulator Assy, Generator
1984-08 → 1985-07
ended
|
21R#,22REC RA6# | — | |
| 27700-63021 note |
Regulator Assy, Generator
1983-08 → 1985-12
ended
|
4AGE,5M# AA63,MA61 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
