Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · General

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 10 illustrations

Illustrations

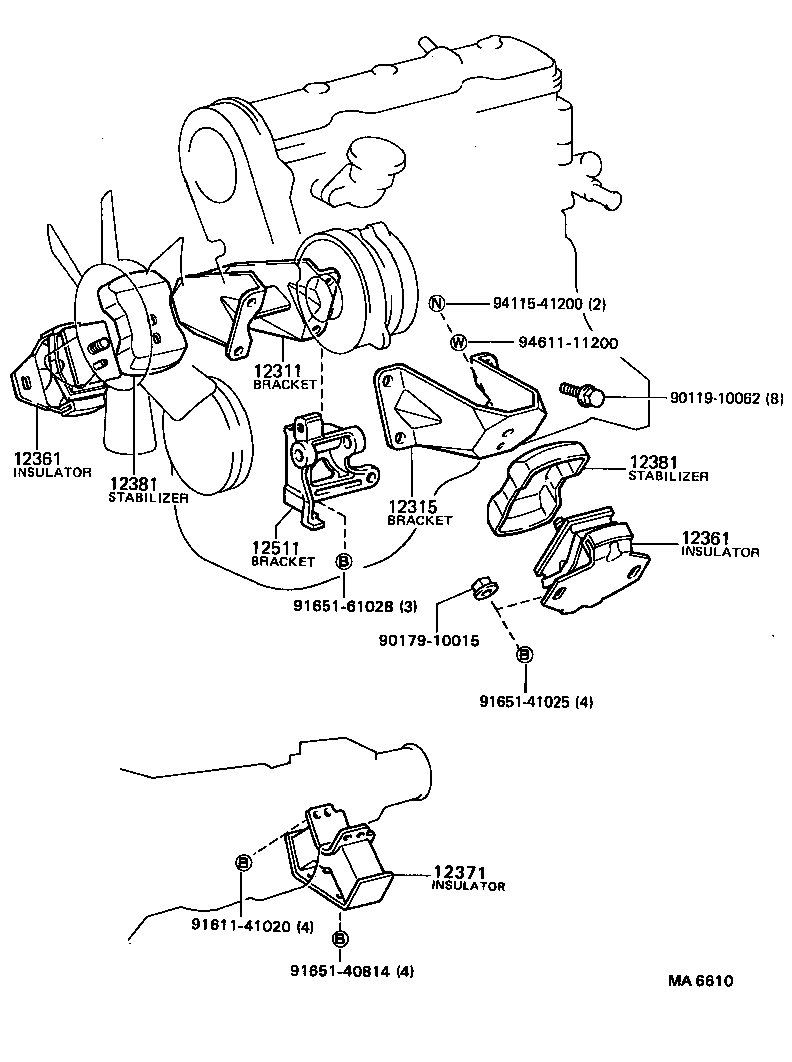

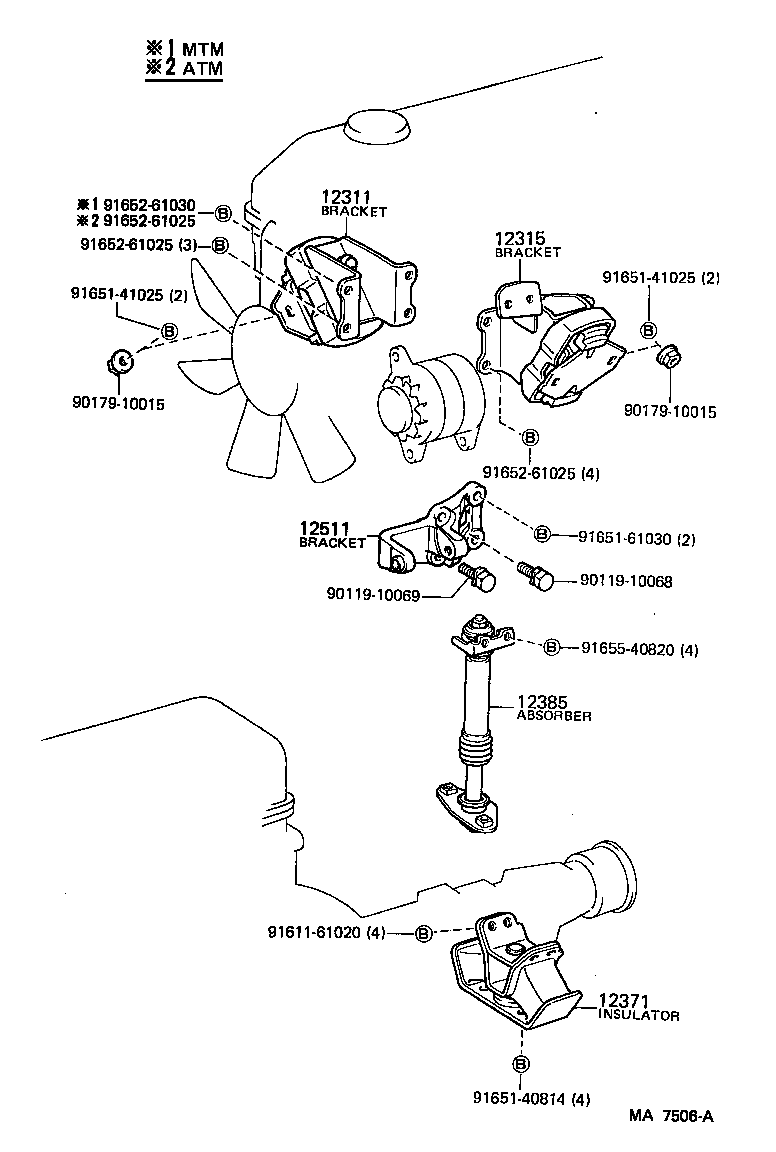

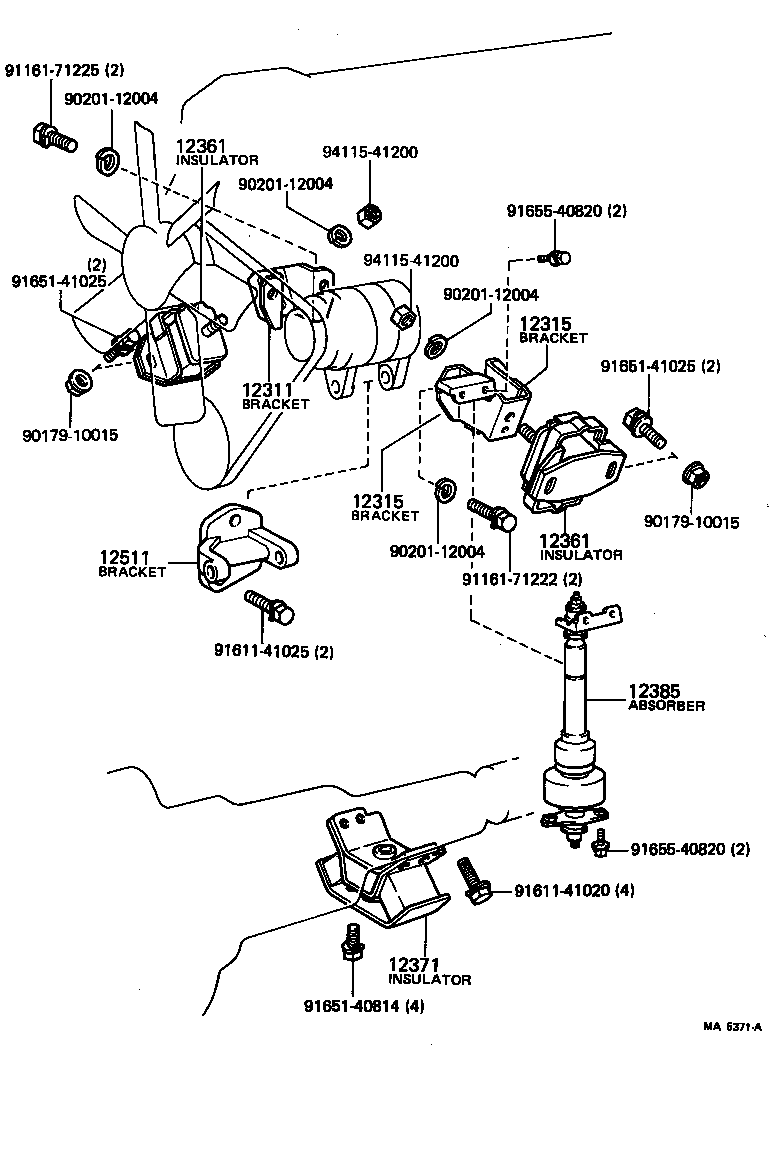

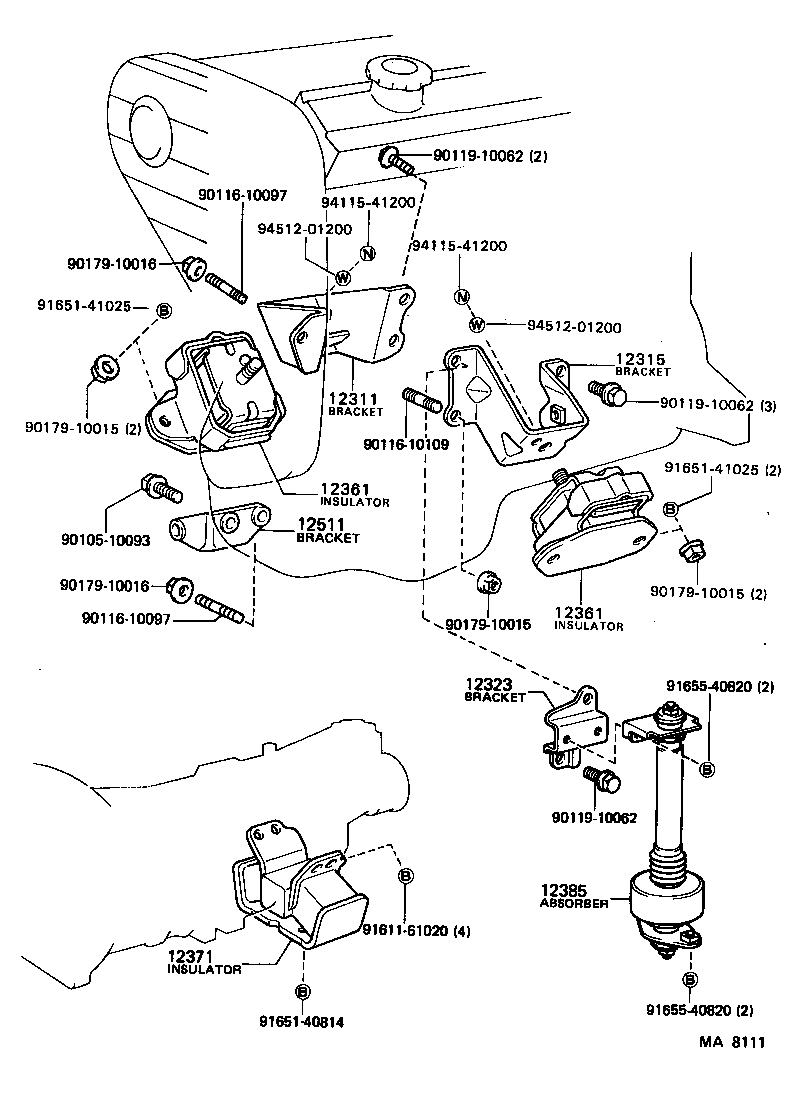

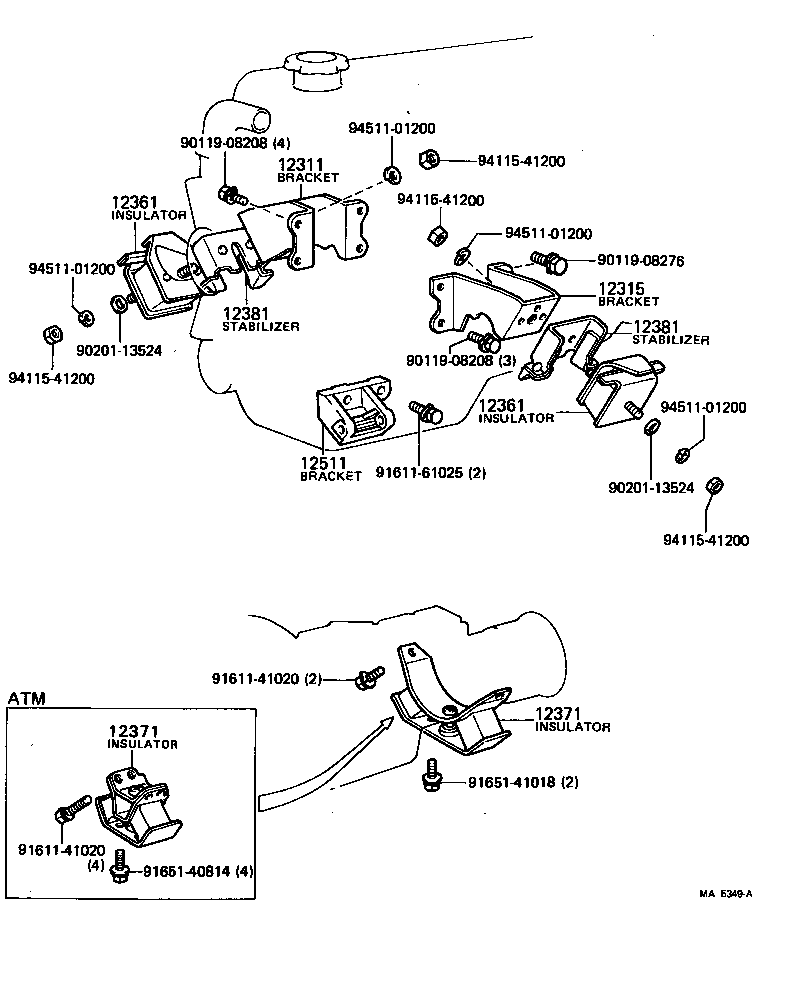

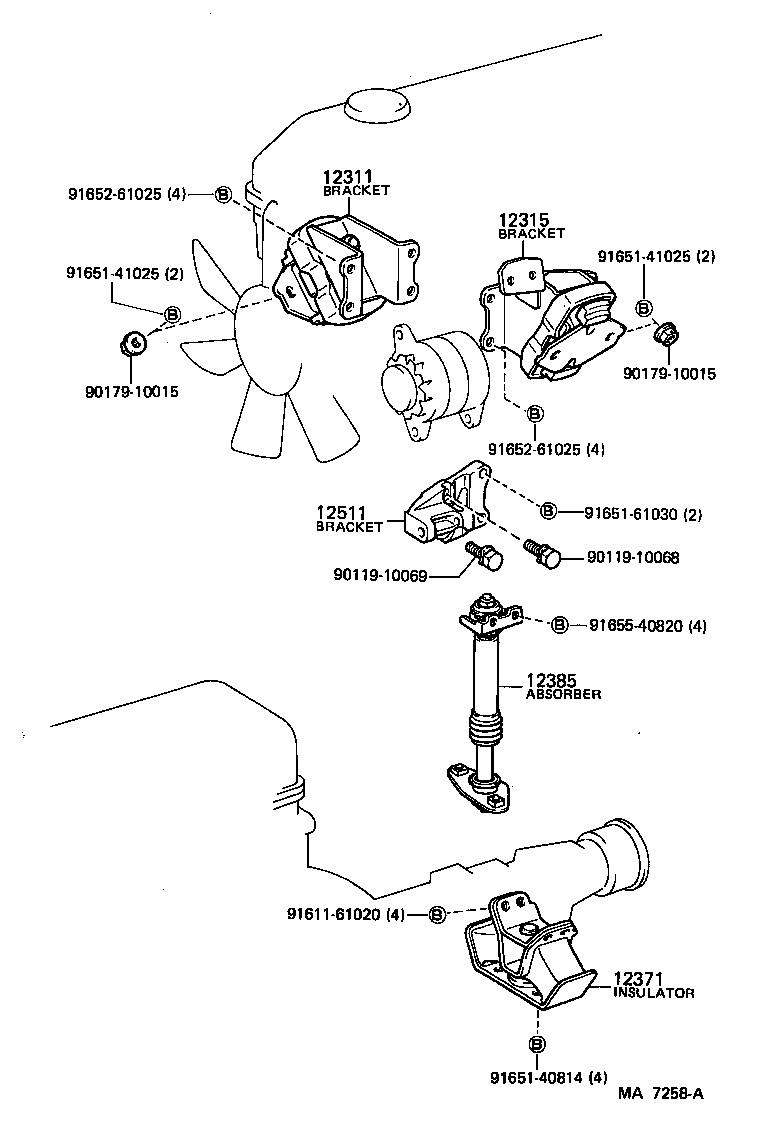

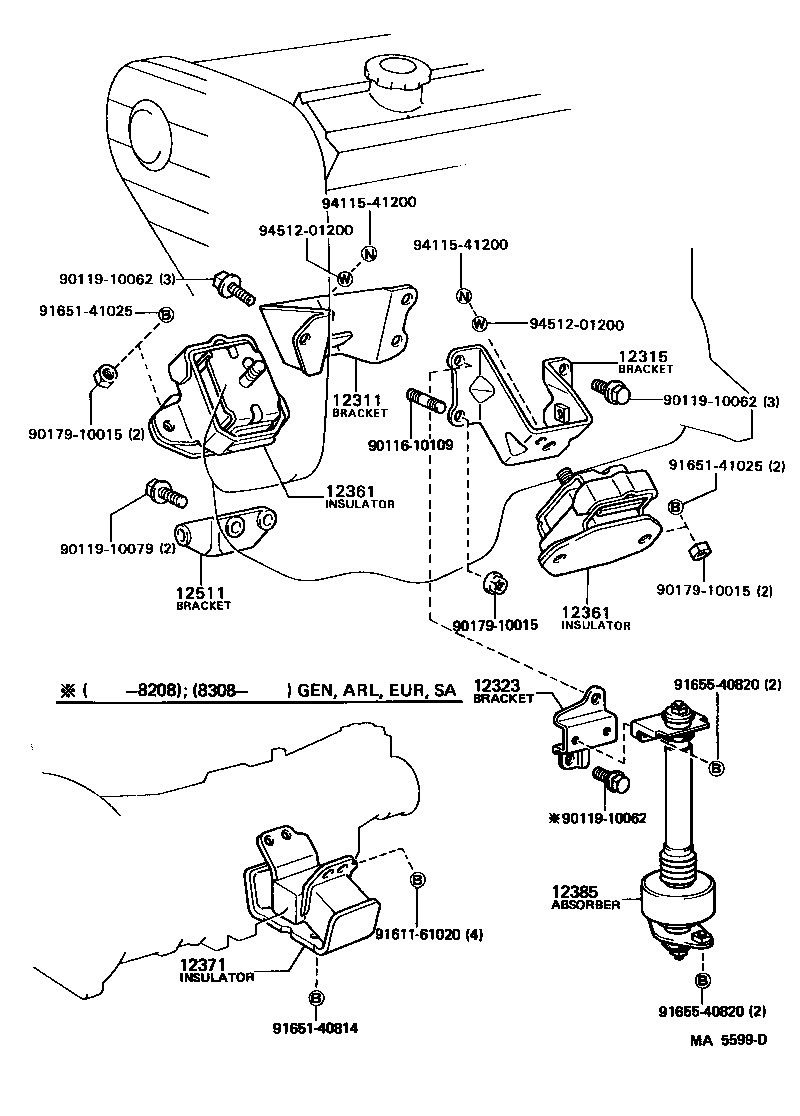

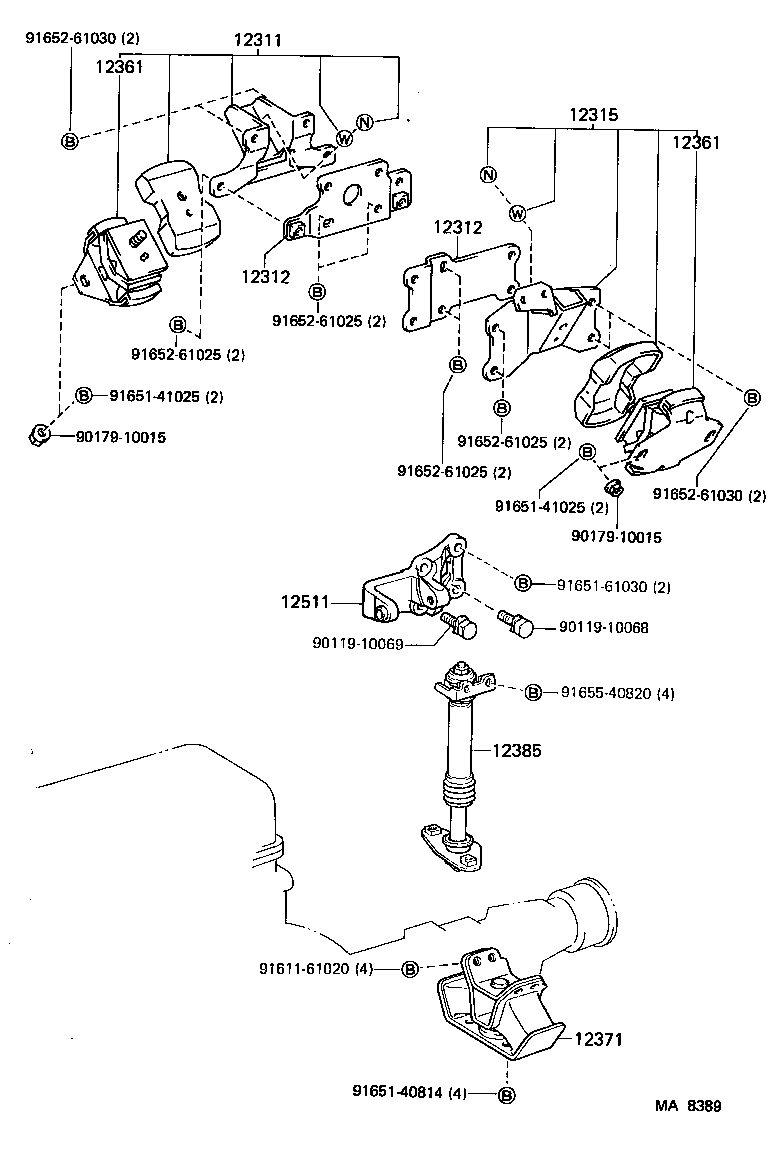

Figure MA6650D MA6650D 1983-08 → 1985-07 Figure MA5599D MA5599D 1981-12 → 1984-08 Figure MA8111 MA8111 1984-08 → — Figure MA7258A MA7258A 1981-08 → 1985-02 Figure MA7506A MA7506A 1984-08 → 1985-02 Figure MA7506A MA7506A 1985-02 → 1985-07 Figure MA8389 MA8389 1985-02 → 1985-07 Figure MA5371A MA5371A 1981-08 → 1983-08 Figure MA6610 MA6610 1983-08 → 1984-08 Figure MA5349A MA5349A 1981-08 → 1985-07

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12312 Bracket, Engine Mounting, Front NO.2
12315 Bracket, Engine Mounting, Front NO.1 LH
12323 Bracket, Engine Mounting Absorber
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12385 Absorber, Engine Mounting, NO.1
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
