Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · General

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pump & Pipe

10 part groups · 4 illustrations

Illustrations

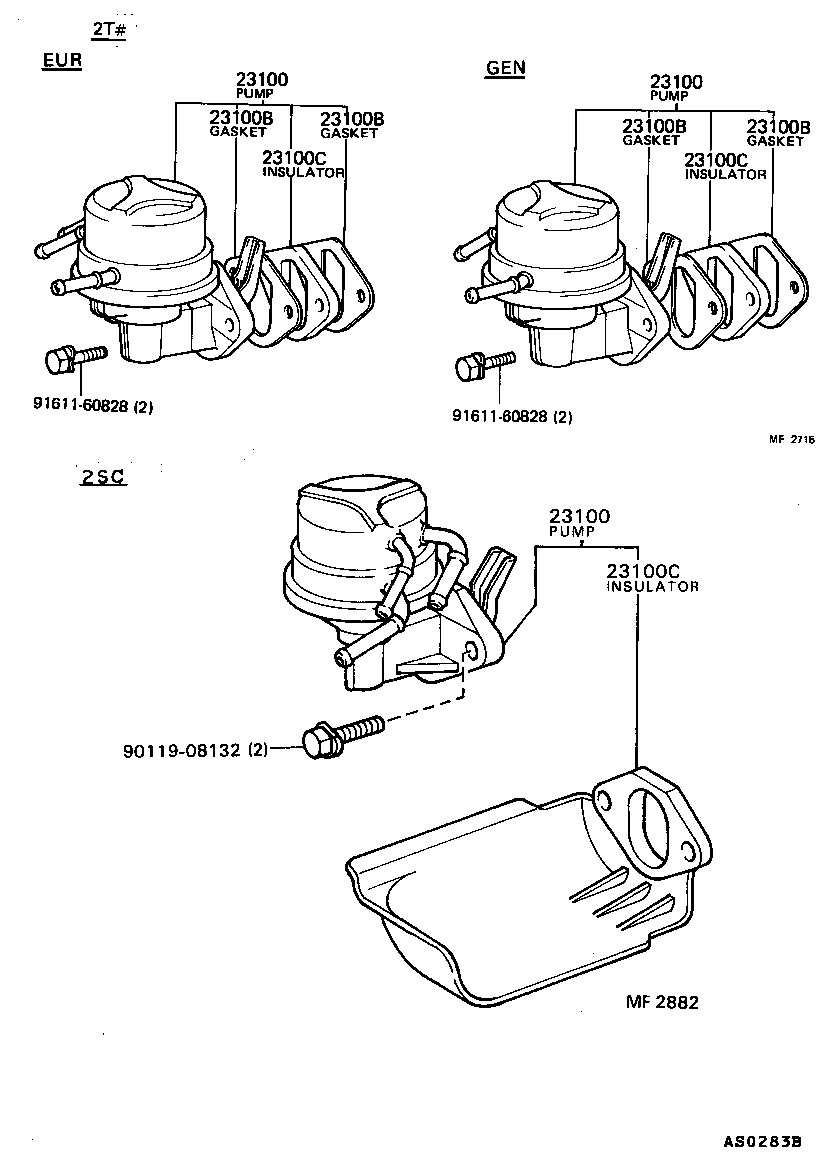

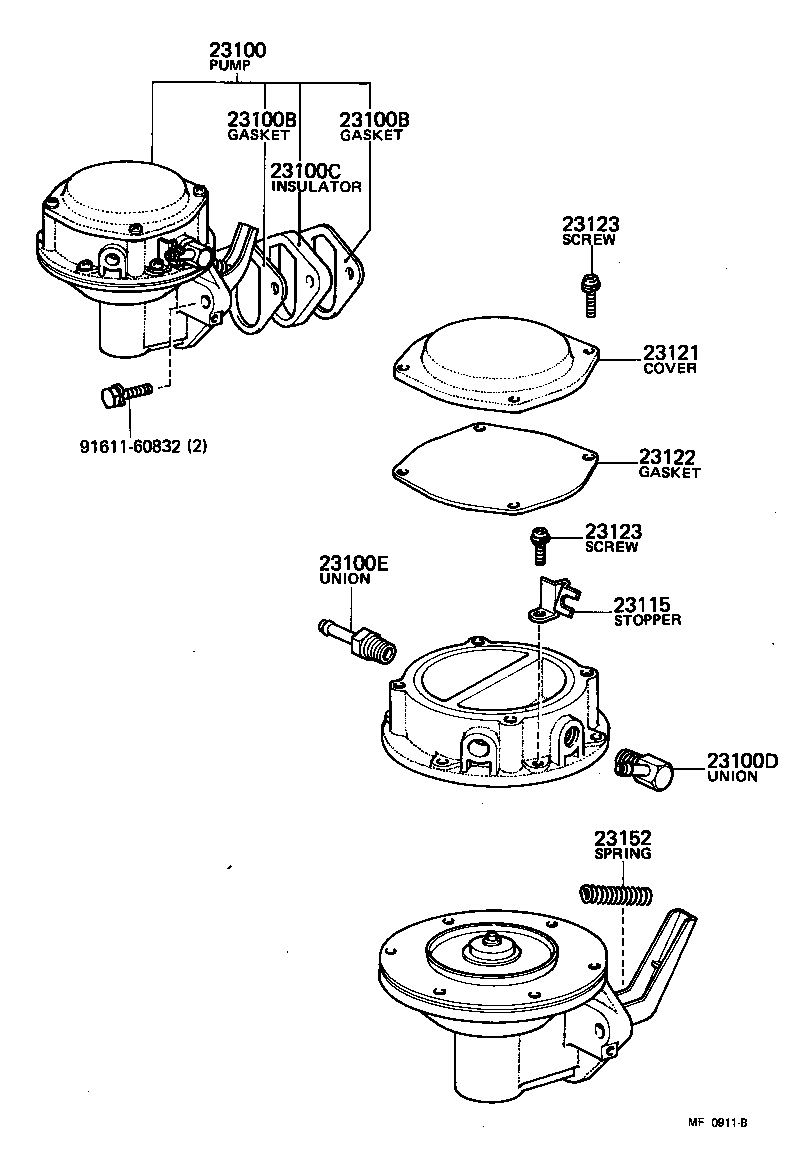

Figure 230100 230100 1981-08 → 1985-07 Figure MF0911B MF0911B 1981-08 → 1983-08 Figure AS0283B AS0283B 1981-08 → 1985-07 Figure AS0283B AS0283B 1981-08 → 1985-07

Part groups

PNCDescription
23100 Pump Assy, Fuel
23100B Gasket, Fuel Pump
23100C Insulator, Fuel Pump
23100D Union, Nipple(FOR FUEL OUTLET)
23100E Union, Nipple(FOR FUEL INLET)
23115 Stopper, Union Nipple
23121 Cover, Fuel Pump
23122 Gasket, Fuel Pump Cover
23123 Screw, Cover Set, NO.1
23152 Spring, Rocker Arm
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
