Toyota Celica
1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · General
Discontinued model
Data version 1986-05

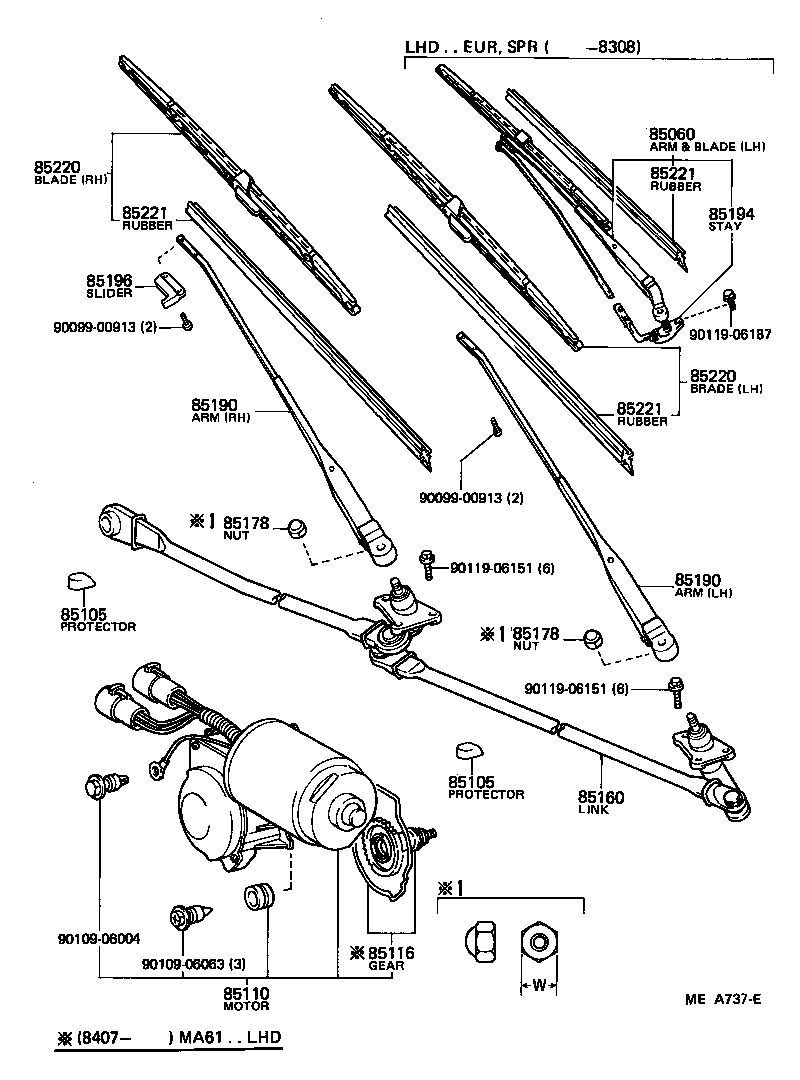

Windshield Wiper
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85060 | Arm And Blade Assy, Windshield Wiper |
| 85105 | Protector, Wiper |
| 85110 | Motor Assy, Windshield Wiper |
| 85116 | Gear, Windshield Wiper Motor |
| 85160 | Link Assy, Windshield Wiper |
| 85178 | Nut (FOR FRONT WIPER ARM SETTING) |
| 85190 | Arm Assy, Windshield Wiper |
| 85194 | Stay, Windshield Wiper Arm |
| 85196 | Slider, Wiper Arm |
| 85220 | Blade Assy, Windshield Wiper |
| 85221 | Blade, Windshield Wiper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
