Toyota Celica

1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 252340 · General

Discontinued model Data version 1987-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

23 part groups · 7 illustrations

Illustrations

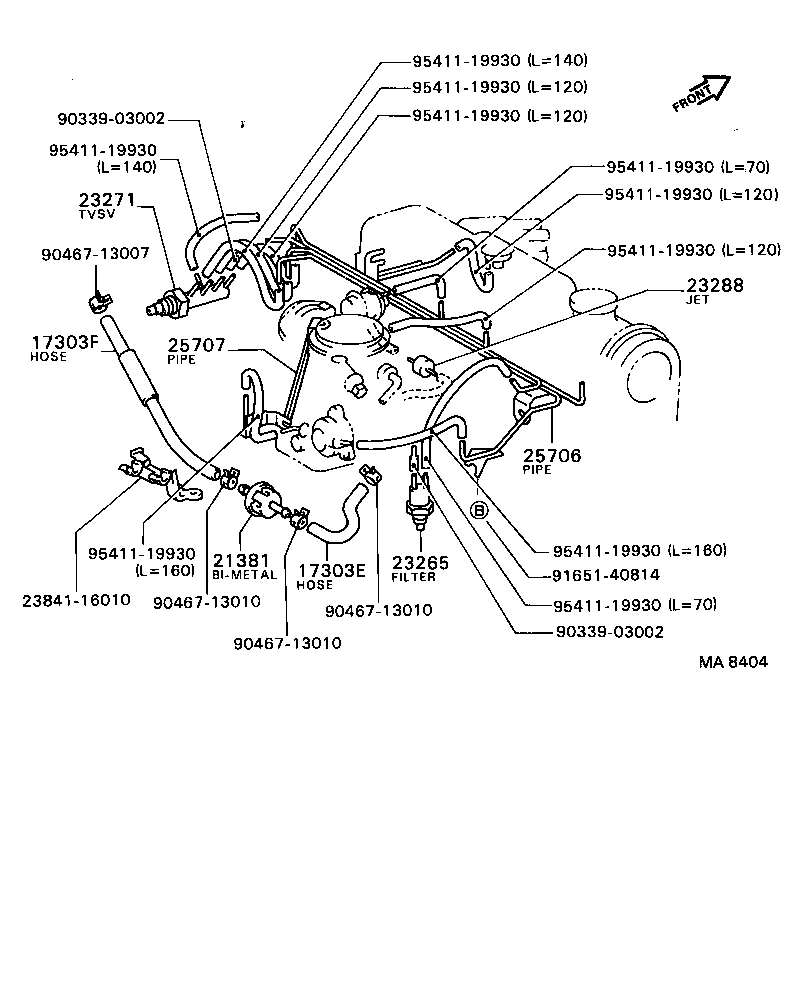

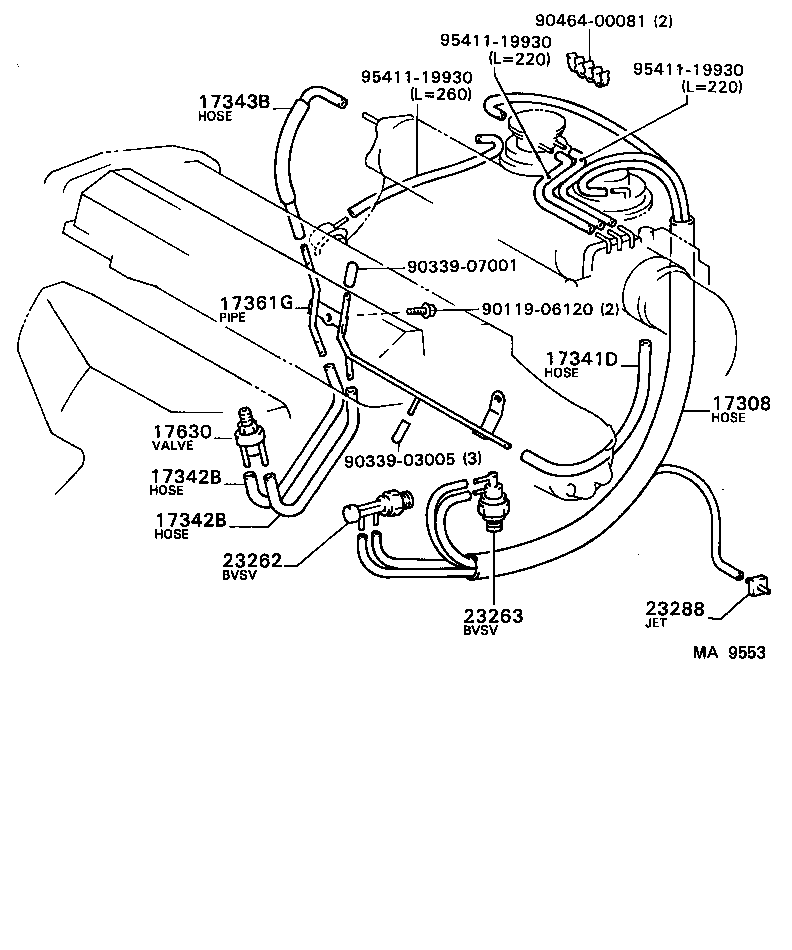

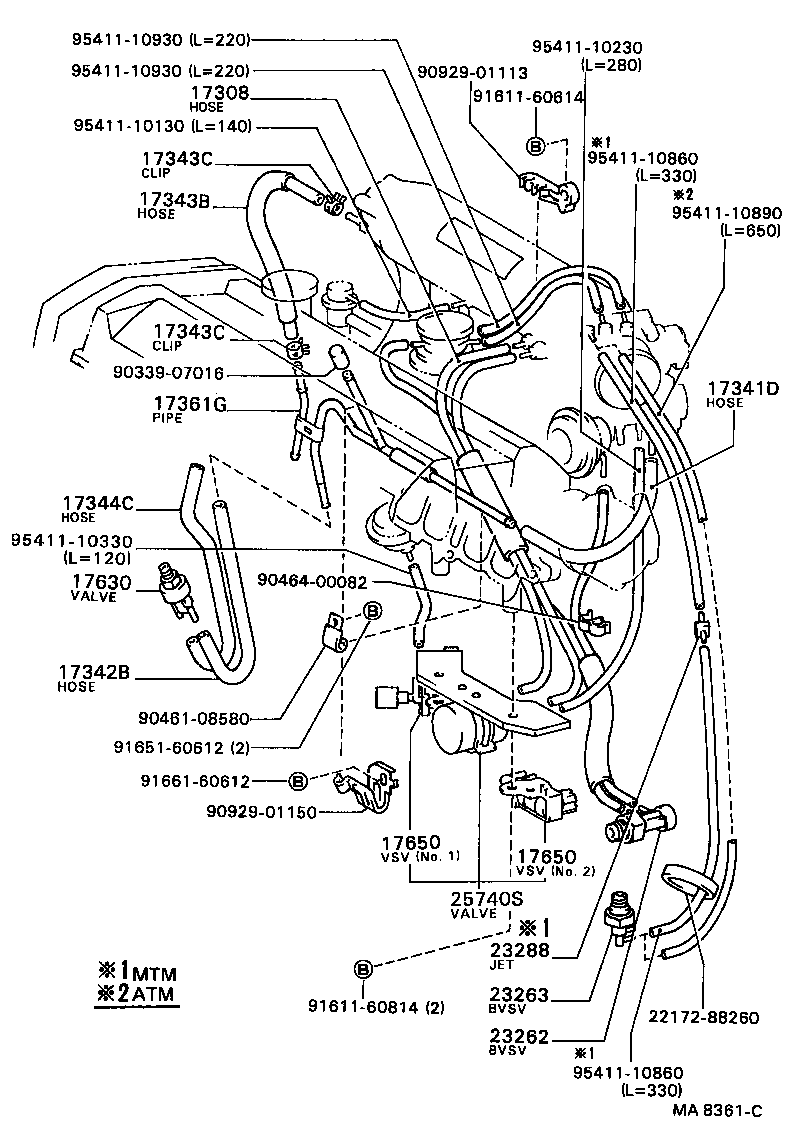

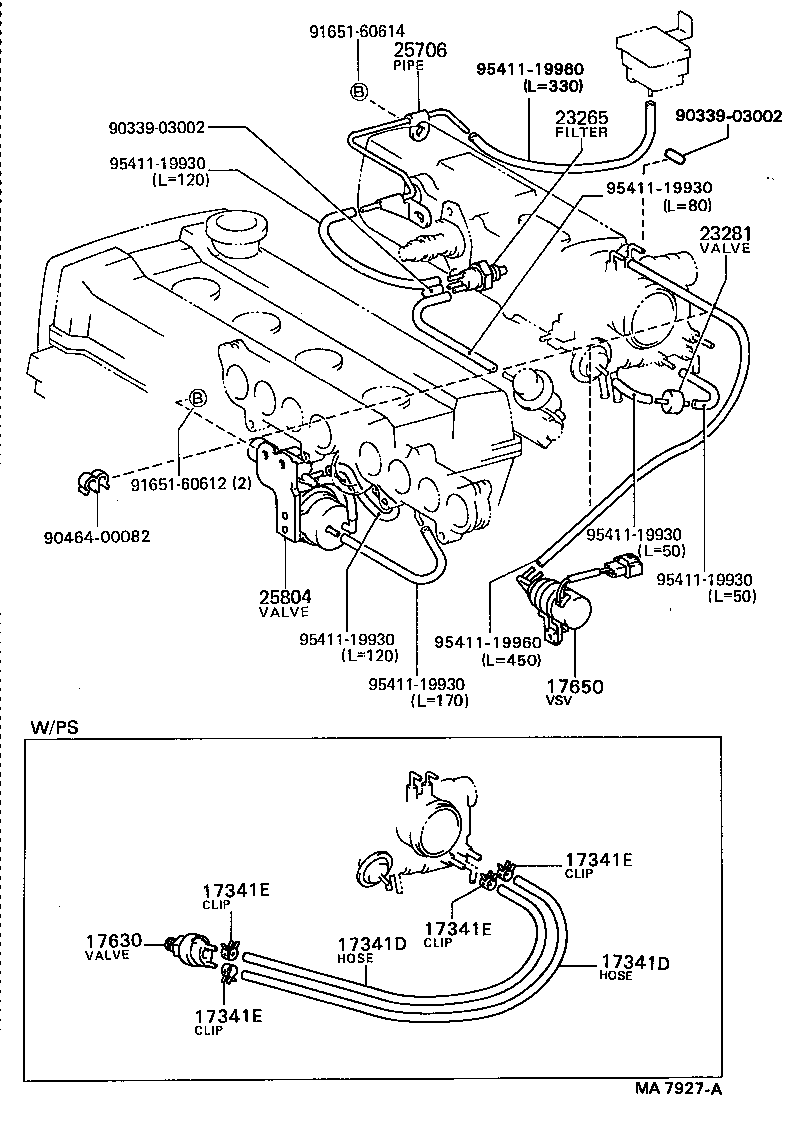

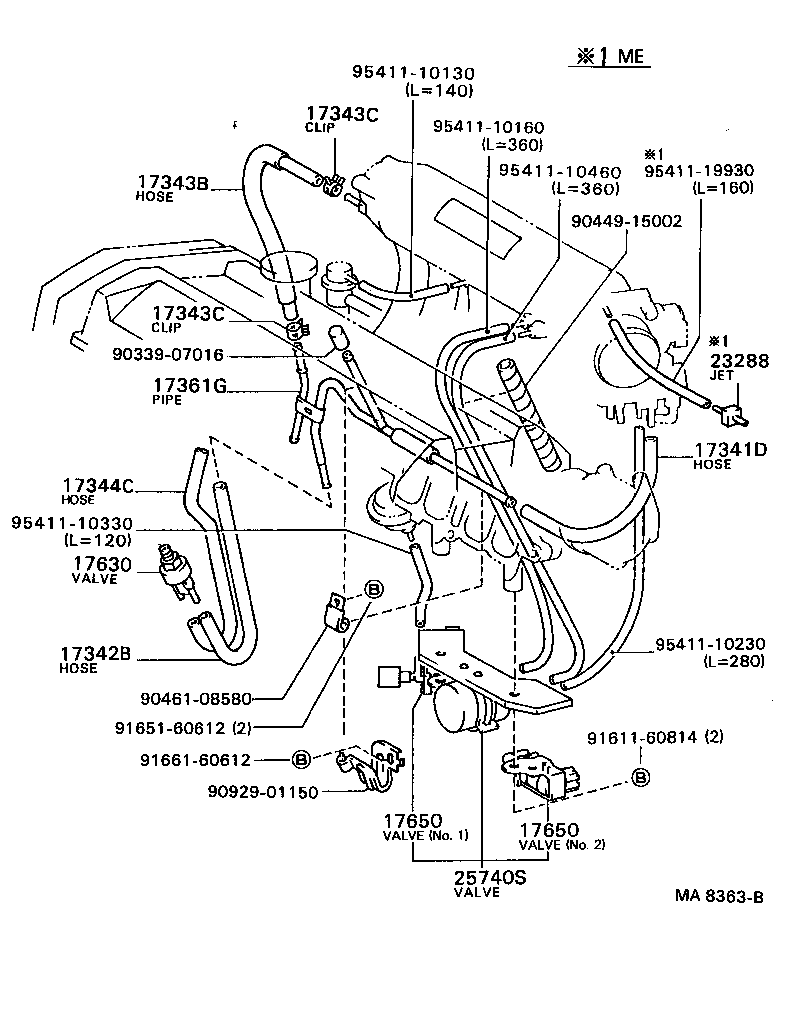

Figure MA9504A MA9504A 1985-08 → — Figure MA8404 MA8404 1985-08 → — Figure MA7927A MA7927A 1985-08 → — Figure MA9504A MA9504A 1985-08 → — Figure MA8363B MA8363B 1985-08 → — Figure MA8361C MA8361C 1985-08 → — Figure MA9553 MA9553 1986-08 → —

Part groups

PNCDescription
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25804 Valve Set, Vacuum Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
