Toyota Celica
1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 252340 · General
Discontinued model
Data version 1987-08

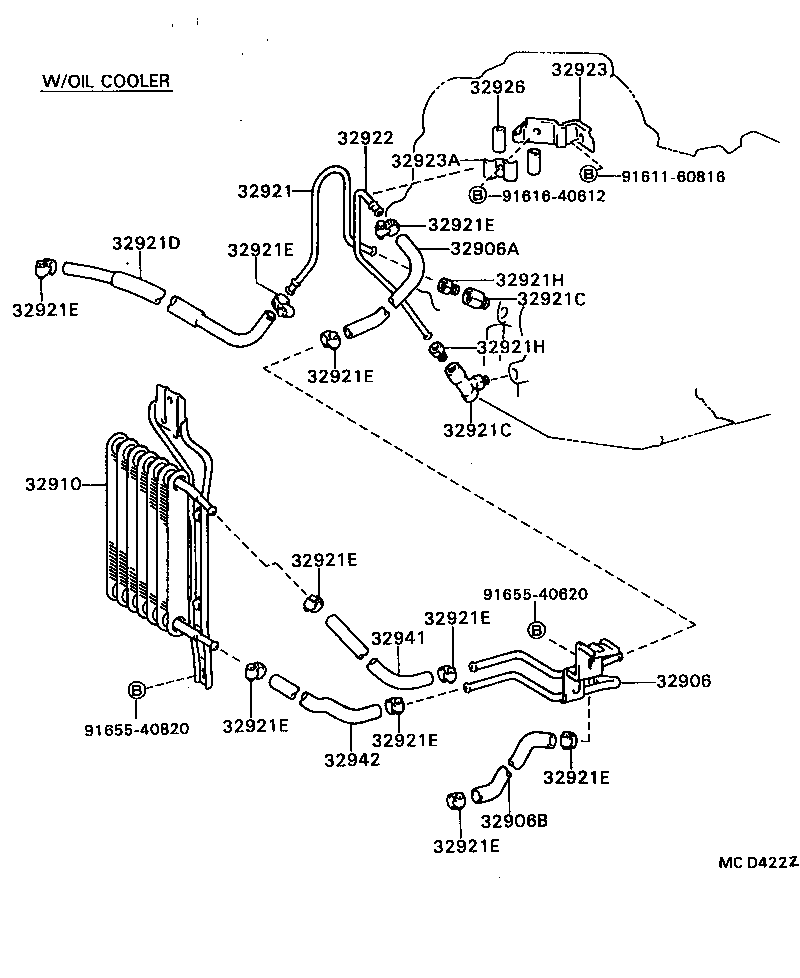

Oil Cooler & Tube (ATM)
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 32906 | Tube Sub-assy, Oil Cooler |
| 32906A | Hose, Oil Cooler Tube(FOR INLET) |
| 32906B | Hose, Oil Cooler Tube(FOR OUTLET) |
| 32910 | Cooler Assy, Oil |
| 32921 | Tube, Oil Cooler Inlet, NO.1 |
| 32921C | Union(FOR OIL COOLER TUBE) |
| 32921D | Hose(FOR OIL COOLER INLET) |
| 32921E | Clamp, Hose(FOR OIL COOLER) |
| 32921G | Ring, O(FOR OIL COOLER TUBE UNION) |
| 32921H | Nut, Flare(FOR OIL COOLER TUBE) |
| 32922 | Tube, Oil Cooler Outlet, NO.1 |
| 32922A | Hose(FOR OIL COOLER OUTLET) |
| 32923 | Clamp, Automatic Transmission Oil Cooler Tube |
| 32923A | Clamp, Automatic Transmission Oil Cooler Tube |
| 32926 | Cushion, Oil Cooler Tube(ATM) |
| 32941 | Hose, Oil Cooler Inlet, NO.1 |
| 32942 | Hose, Oil Cooler Outlet, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
