Toyota Celica

1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 252340 · General

Discontinued model Data version 1987-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 2 illustrations

Illustrations

Figure MEG269B

MEG269B 1985-08 → —

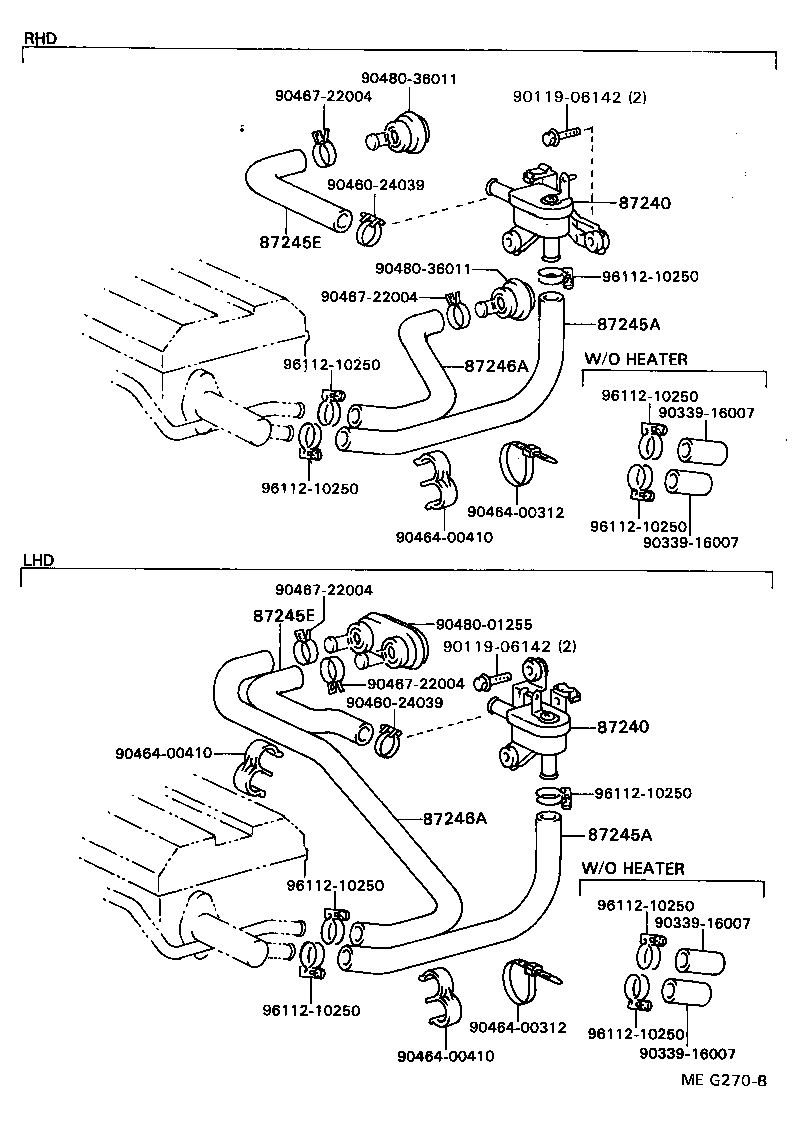

Figure MEG270B

MEG270B 1985-08 → —

Part groups

PNC	Description
87240	Valve Assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87245E	Hose, Heater Water, Inlet E
87246A	Hose, Heater Water, Outlet A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
