Toyota Celica

1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252350 · General

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 4 illustrations

Illustrations

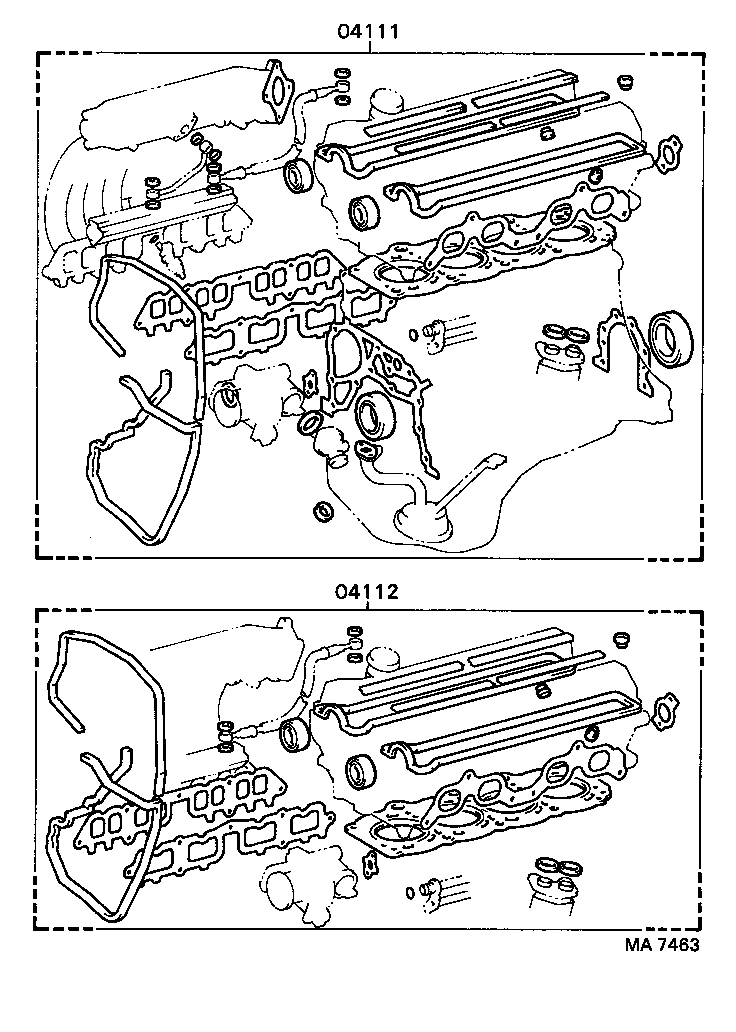

Figure MA6871 MA6871 1987-08 → — Figure MA6666 MA6666 1987-08 → — Figure MA7463 MA7463 1987-08 → — Figure MA9167C MA9167C 1987-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
