Toyota Celica

1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252350 · General

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

20 part groups · 3 illustrations

Illustrations

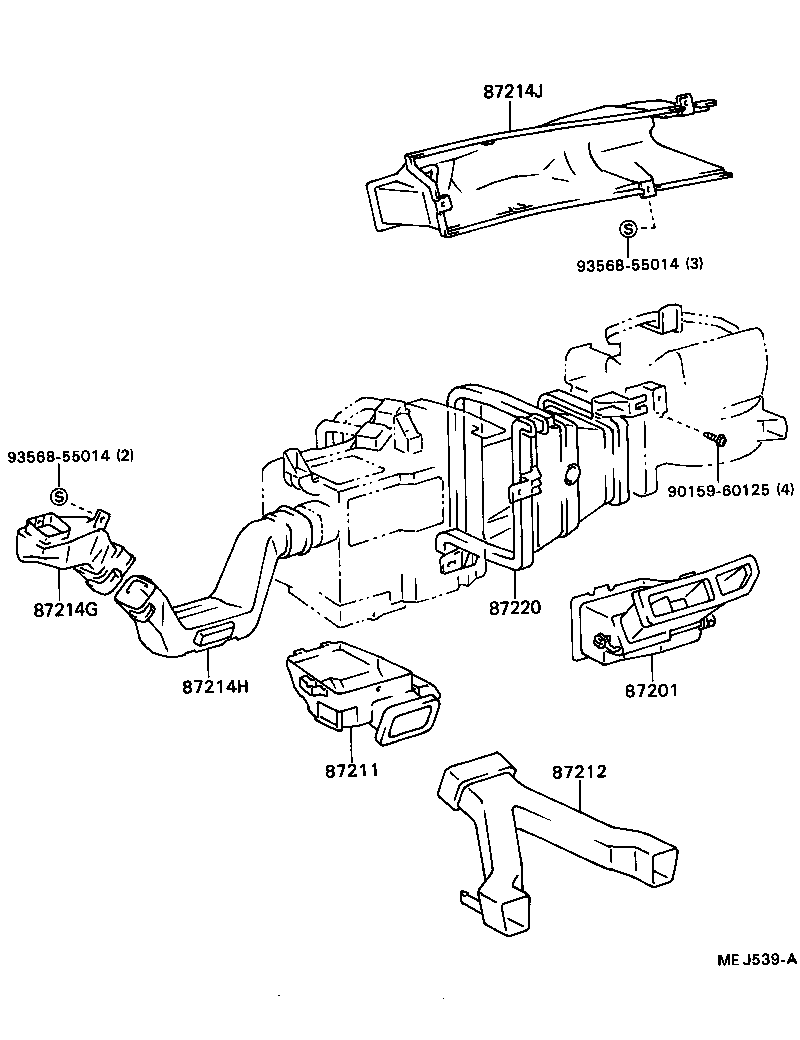

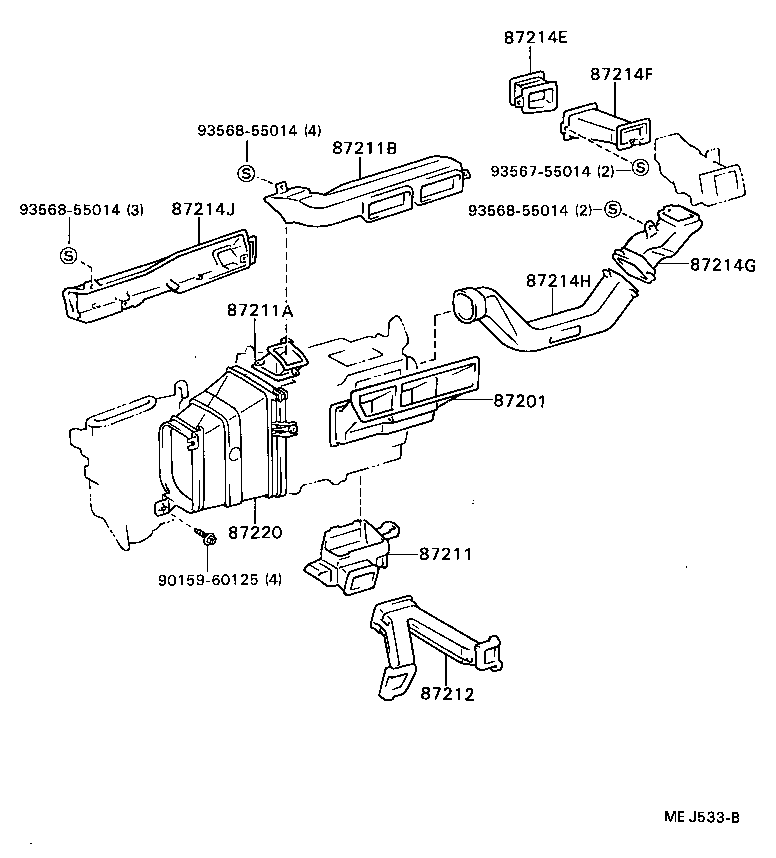

Figure MEJ532A MEJ532A 1987-08 → — Figure MEJ533B MEJ533B 1987-08 → — Figure MEJ539A MEJ539A 1987-08 → —

Part groups

PNCDescription
55905D Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55913A Plate, Heater Control Lever Guide
55931 Clamp, Heater Control Wire
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87214E Boot, Side Ventilator Duct, RH
87214F Duct, Cowl TO Register, NO.1
87214G Duct Sub-assy, Heater TO Register, NO.1
87214H Duct Sub-assy, Heater TO Register, NO.2
87214J Duct Sub-assy, Heater TO Register, NO.3
87220 Duct Assy, Air
87284 Resistor Sub-assy, Variable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
