Heating & Air Conditioning - Water Piping

4 part groups · 2 illustrations

Illustrations

Figure MEJ523B

MEJ523B 1987-08 → —

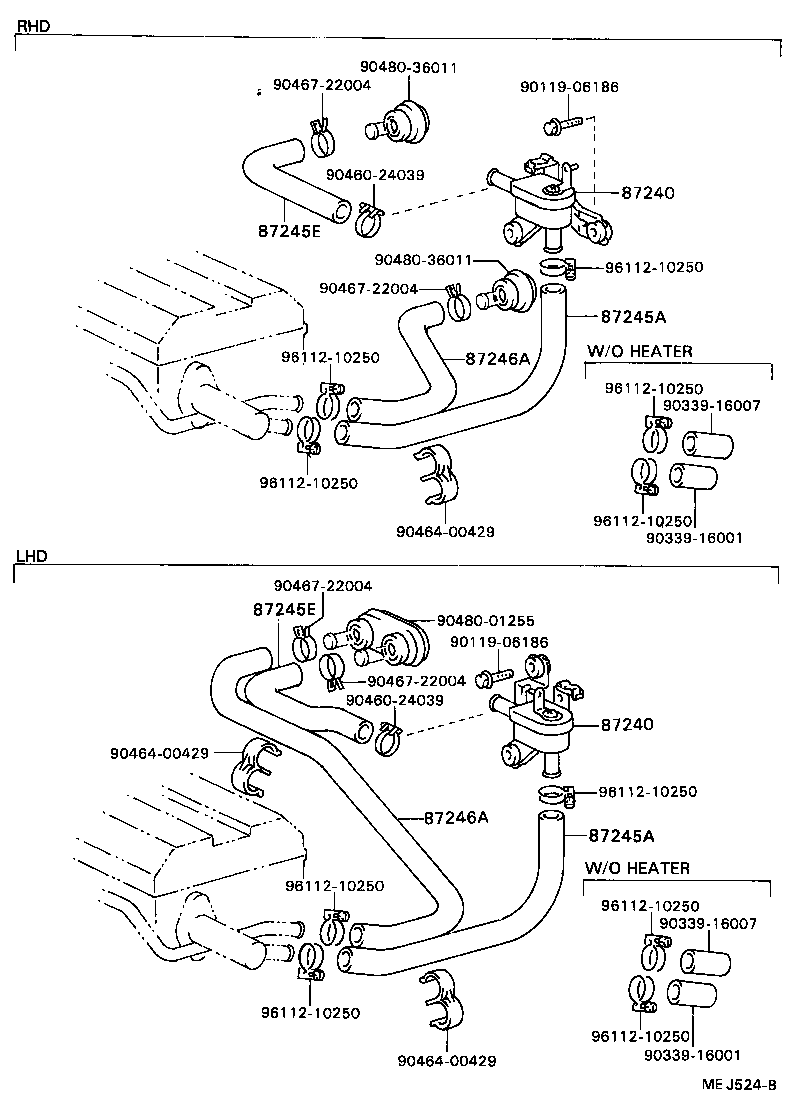

Figure MEJ524B

MEJ524B 1987-08 → —

Part groups

PNC	Description
87240	Valve Assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87245E	Hose, Heater Water, Inlet E
87246A	Hose, Heater Water, Outlet A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
