Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252360 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 3 illustrations

Illustrations

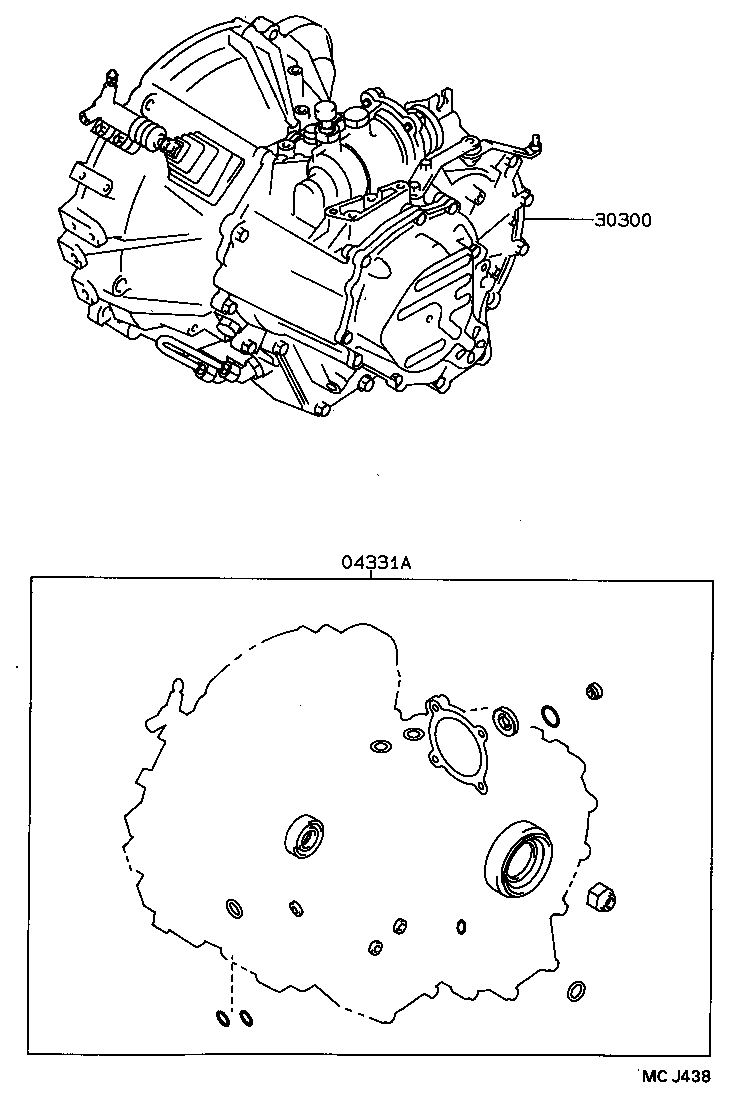

Figure MCJ437 MCJ437 1989-11 → — Figure MCJ439 MCJ439 1989-10 → — Figure MCJ438 MCJ438 1989-10 → —

Part groups

PNCDescription
04331A Gasket Kit, Transaxle Overhaul(MTM)
30300 Transaxle Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
