Toyota Celica
1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252360 · General
Discontinued model
Data version 1994-04

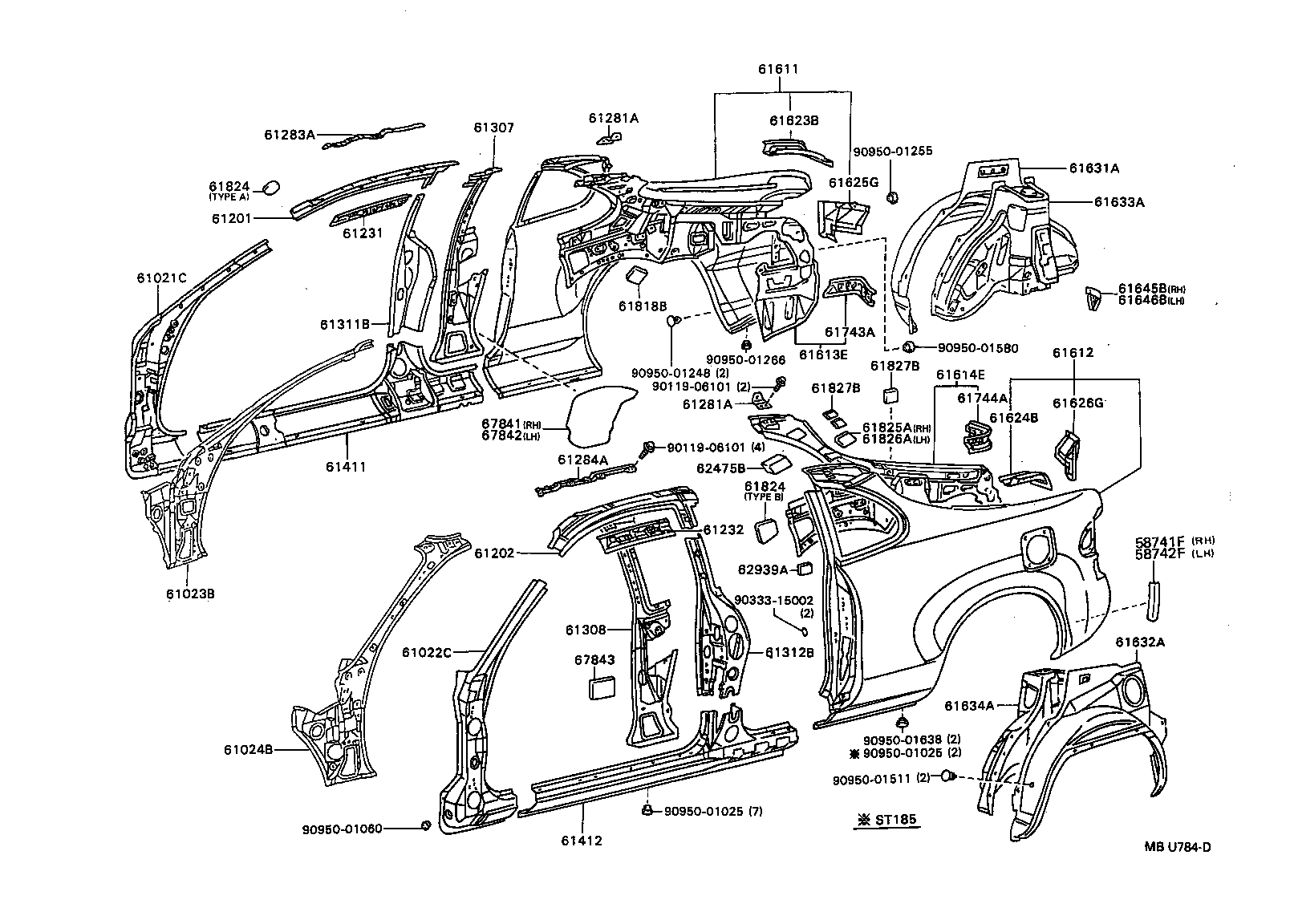

Side Member
60 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58741F | Protector, Rear Wheel Extension, RH |
| 58742F | Protector, Rear Wheel Extension, LH |
| 61021C | Pillar Sub-assy, Front Body, RH |
| 61022C | Pillar Sub-assy, Front Body, LH |
| 61023B | Pillar Sub-assy, Front Body, Inner RH |
| 61024B | Pillar Sub-assy, Front Body, Inner LH |
| 61201 | Rail Sub-assy, Roof Side, RH |
| 61202 | Rail Sub-assy, Roof Side, LH |
| 61231 | Rail, Roof Side, Inner RH |
| 61232 | Rail, Roof Side, Inner LH |
| 61283A | Bracket, Sliding Roof Housing Side Mounting, NO.3 RH |
| 61284A | Bracket, Sliding Roof Housing Side Mounting, NO.3 LH |
| 61307 | Pillar Sub-assy, Center Body, Inner RH |
| 61308 | Pillar Sub-assy, Center Body, Inner LH |
| 61311B | Pillar, Center Body, Outer RH |
| 61312B | Pillar, Center Body, Outer LH |
| 61411 | Panel, Rocker, Outer RH |
| 61412 | Panel, Rocker, Outer LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61613E | Panel, Quarter, Inner RH |
| 61614E | Panel, Quarter, Inner LH |
| 61615C | Panel, Quarter Inner, Center RH |
| 61616C | Panel, Quarter Inner, Center LH |
| 61617A | Panel, Quarter Inner, Rear RH |
| 61618A | Panel, Quarter, Inner Rear LH |
| 61621C | Trough, Luggage Compartment Opening, RH |
| 61622C | Trough, Luggage Compartment Opening, LH |
| 61623B | Trough, Back Door Opening, Rear RH |
| 61624B | Trough, Back Door Opening, Rear LH |
| 61625G | Extension, Quarter Panel, Rear RH |
| 61626G | Extension, Quarter Panel, Rear LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61633A | Panel, Quarter Wheel House, Inner RH |
| 61634A | Panel, Quarter Wheel House, Inner LH |
| 61645B | Gusset, Quarter Wheel House, Rear RH |
| 61646B | Gusset, Quarter Wheel House, Rear LH |
| 61735A | Panel, Roof Side, Inner Rear RH |
| 61736A | Panel, Roof Side, Inner Rear LH |
| 61743A | Reinforcement, Back Door Opening Side, RH |
| 61744A | Reinforcement, Back Door Opening Side, LH |
| 61747 | Brace, Roof Side Inner TO Wheel House, RH |
| 61748C | Brace, Roof Side Inner TO Wheel House, LH |
| 61766B | Reinforcement, Belt Anchor TO Roof Side, Inner RH |
| 61767B | Reinforcement, Belt Anchor TO Roof Side, Inner LH |
| 61768B | Reinforce, Belt Anchor TO Roof Side, Inner Rear RH |
| 61769B | Reinforce, Belt Anchor TO Roof Side, Inner Rear LH |
| 61818B | Cover, Roof Side, Inner Lwr LH |
| 61824 | Plate, Noise Control, NO.1 |
| 61825A | Plate, Noise Control, NO.2 |
| 61826A | Plate, Noise Control, NO.3 |
| 61827B | Plate, Noise Control, NO.4 |
| 62475B | Seal, Roof Side, Inner |
| 62939A | Silencer, Quarter Vent |
| 64314A | Reinforcement, Package Tray Bracket, RH |
| 64315A | Reinforcement, Package Tray Bracket, LH |
| 67841 | Cover, Quarter Service Hole, NO.1 RH |
| 67842 | Cover, Quarter Service Hole, NO.1 LH |
| 67843 | Cover, Quarter Service Hole, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
