Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252360 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

7 part groups · 3 illustrations

Illustrations

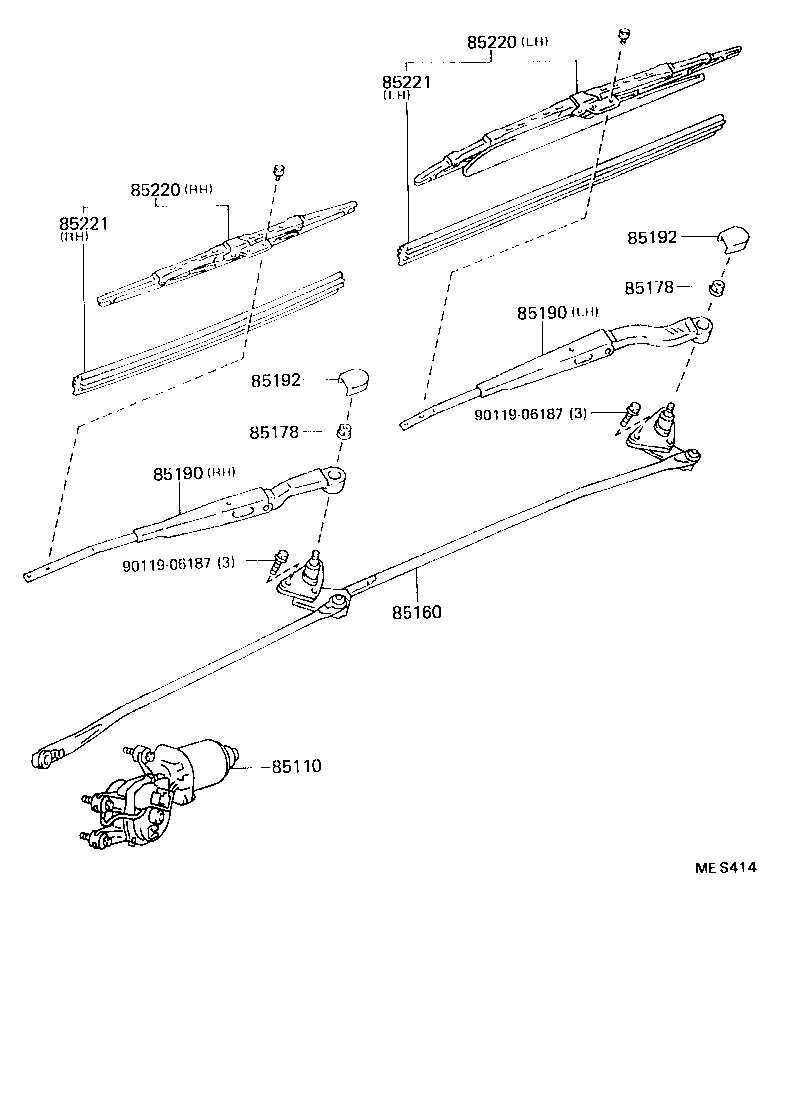

Figure MEN787B MEN787B 1989-10 → 1991-08 Figure MEN787B MEN787B 1991-08 → — Figure MES414 MES414 1991-08 → —

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85178 Nut (FOR FRONT WIPER ARM SETTING)
85190 Arm Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
