Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252360 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

3 part groups · 4 illustrations

Illustrations

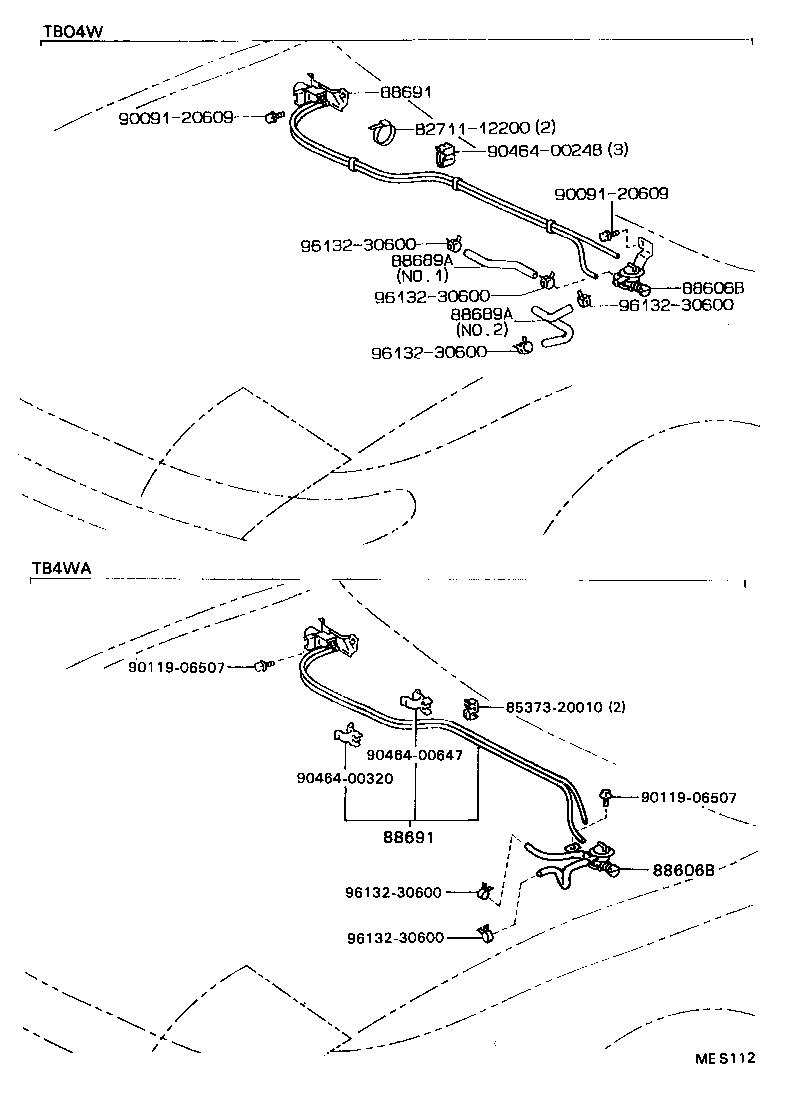

Figure MEN576B MEN576B 1989-11 → — Figure MEN577B MEN577B 1989-11 → — Figure MES111 MES111 1989-10 → 1991-08 Figure MES112 MES112 1989-10 → —

Part groups

PNCDescription
88606B Diaphragm Sub-assy, Cooler
88689A Hose, Cooler Vacuum NO.1
88691 Valve, Magnet (FOR IDLE UP DEVICE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
