Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

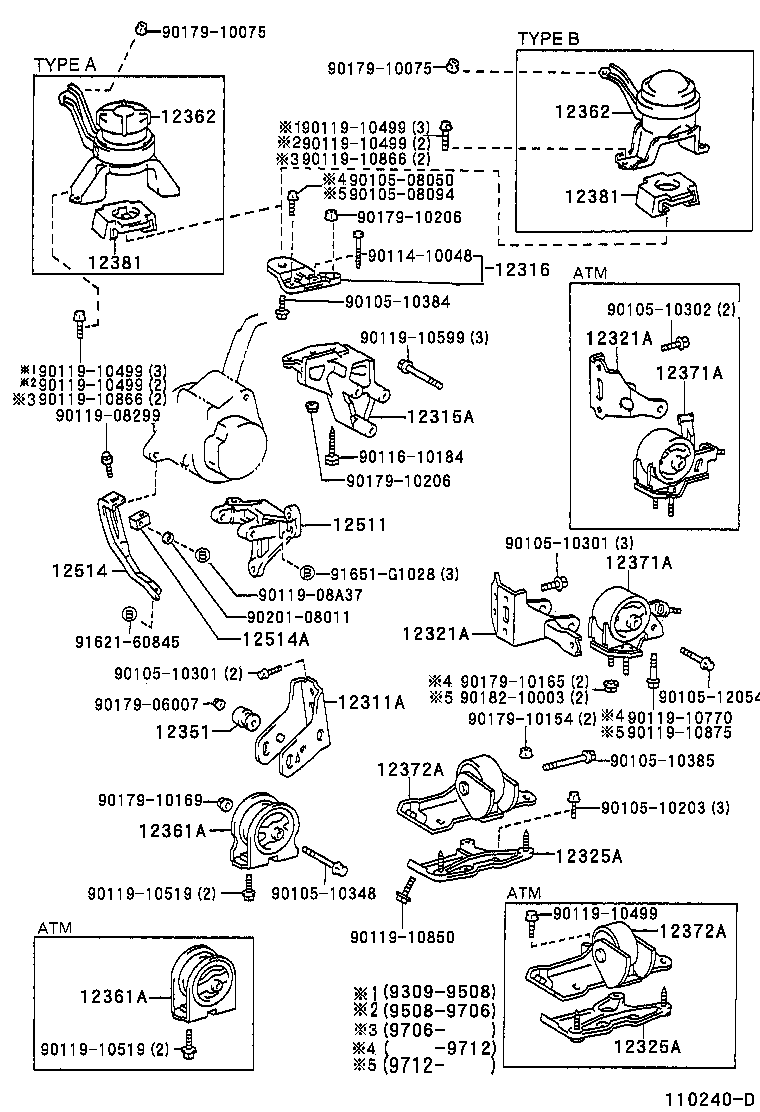

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12311A — Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE) | ||||
| 12311-74160 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1994-02 → —
|
3SGTE ST205 | — | |
| 12311-74180 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-74120 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1993-11 → 1995-08
ended
|
3SFE,5SFE ST202,204 | — | |
| 12315-74130 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1994-02 → —
|
3SGTE ST205 | — | |
| 12315-74140 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1995-08 → —
|
3SFE,5SFE ST202,204 | — | |
| 12316 — Bracket, Engine Mounting, NO.2 RH | ||||
| 12316-74060 |
Bracket, Engine Mounting, NO.2 RH
1994-02 → —
|
3SGTE ST205 | — | |
| 12316-74070 |
Bracket, Engine Mounting, NO.2 RH
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 12321A — Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE) | ||||
| 12321-74310 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1994-02 → —
|
3SGTE ST205 | — | |
| 12321-74320 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1993-11 → 1997-12
ended
|
3SFE,5SFE ST202,204 MTM | — | |
| 12321-74321 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1997-12 → —
|
3SFE,5SFE ST202,204 MTM | — | |
| 12321-74330 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1993-11 → —
|
3SFE,5SFE ST202,204 ATM | — | |
| 12325A — Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74230 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1994-02 → —
|
3SGTE ST205 | — | |
| 12325-74240 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1993-11 → —
|
3SFE,5SFE ST202,204 MTM | — | |
| 12325-74250 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1993-11 → —
|
3SFE,5SFE ST202,204 ATM | — | |
| 12351 — Damper, Engine Mounting | ||||
| 12351-64020 |
Damper, Engine Mounting
1993-11 → —
|
3S#,5SFE ST20# | — | |
| 12361A — Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE) | ||||
| 12361-74340 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1993-11 → 1995-08
ended
|
3S#,5SFE ST20# MTM | — | |
| 12361-74350 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1993-11 → 1995-08
ended
|
3SFE,5SFE ST202,204 ATM | — | |
| 12361-74400 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1995-08 → —
|
3S#,5SFE ST20# MTM | — | |
| 12361-74410 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1995-08 → —
|
3SFE,5SFE ST202,204 ATM | — | |
| 12362 — Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-74320 |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1994-02 → 1995-07
ended
|
3SGTE ST205 | — | |
| 12362-74330 note |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1993-11 → 1995-07
ended
|
3SFE,5SFE ST202,204 | — | |
| 12362-74340 note |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1993-11 → 1995-07
ended
|
3SFE,5SFE ST202,204 | — | |
| 12362-74430 note |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1995-07 → —
|
3SFE,5SFE ST202,204 | — | |
| 12362-74440 |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1995-07 → —
|
3SGTE ST205 | — | |
| 12362-74460 note |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1995-07 → —
|
3SFE,5SFE ST202,204 | — | |
| 12371A — Insulator, Engine Mounting, Rear | ||||
| 12371-74410 |
Insulator, Engine Mounting, Rear
1993-11 → 1997-12
ended
|
3SFE,5SFE ST202,204 MTM | — | |
| 12371-74411 |
Insulator, Engine Mounting, Rear
1997-12 → —
|
3SFE,5SFE ST202,204 MTM | — | |
| 12371-74420 |
Insulator, Engine Mounting, Rear
1993-11 → —
|
3SFE,5SFE ST202,204 ATM | — | |
| 12371-74440 |
Insulator, Engine Mounting, Rear
1994-02 → —
|
3SGTE ST205 | — | |
| 12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74450 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1993-11 → 1997-12
ended
|
3SFE,5SFE ST202,204 MTM | — | |
| 12372-74451 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1997-12 → —
|
3SFE,5SFE ST202,204 MTM | — | |
| 12372-74460 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1993-11 → 1994-08
ended
|
3SFE ST202 ATM | — | |
| 12372-74500 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1994-02 → —
|
3SGTE ST205 | — | |
| 12372-74510 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1993-11 → 1994-08
ended
|
5SFE ST204 ATM | — | |
| 12372-74510 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1994-08 → —
|
3SFE,5SFE ST202,204 ATM | — | |
| 12381 — Stabilizer, Engine Mounting | ||||
| 12381-74020 note |
Stabilizer, Engine Mounting
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 12381-74020 |
Stabilizer, Engine Mounting
1994-02 → —
|
3SGTE ST205 | — | |
| 12381-74030 note |
Stabilizer, Engine Mounting
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 12511 — Bracket, Alternator, NO.1 | ||||
| 12511-74051 |
Bracket, Alternator, NO.1
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 12511-88480 |
Bracket, Alternator, NO.1
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 12511-88481 |
Bracket, Alternator, NO.1
1996-06 → —
|
3SGTE ST205 | — | |
| 12514 — Bar, Alternator Belt Adjusting | ||||
| 12514-74040 |
Bar, Alternator Belt Adjusting
1993-11 → 1997-02
ended
|
3SFE,5SFE ST202,204 | — | |
| 12514-74041 |
Bar, Alternator Belt Adjusting
1997-02 → —
|
3SFE,5SFE ST202,204 | — | |
| 12514A — Slider, Fan Belt Adjusting | ||||
| 16385-64011 |
Slider, Fan Belt Adjusting
1993-11 → 1996-01
ended
|
3SFE,5SFE ST202,204 | — | |
| 16385-64011 |
Slider, Fan Belt Adjusting
1996-01 → —
|
3SFE,5SFE ST202,204 ARL,GCC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
