Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

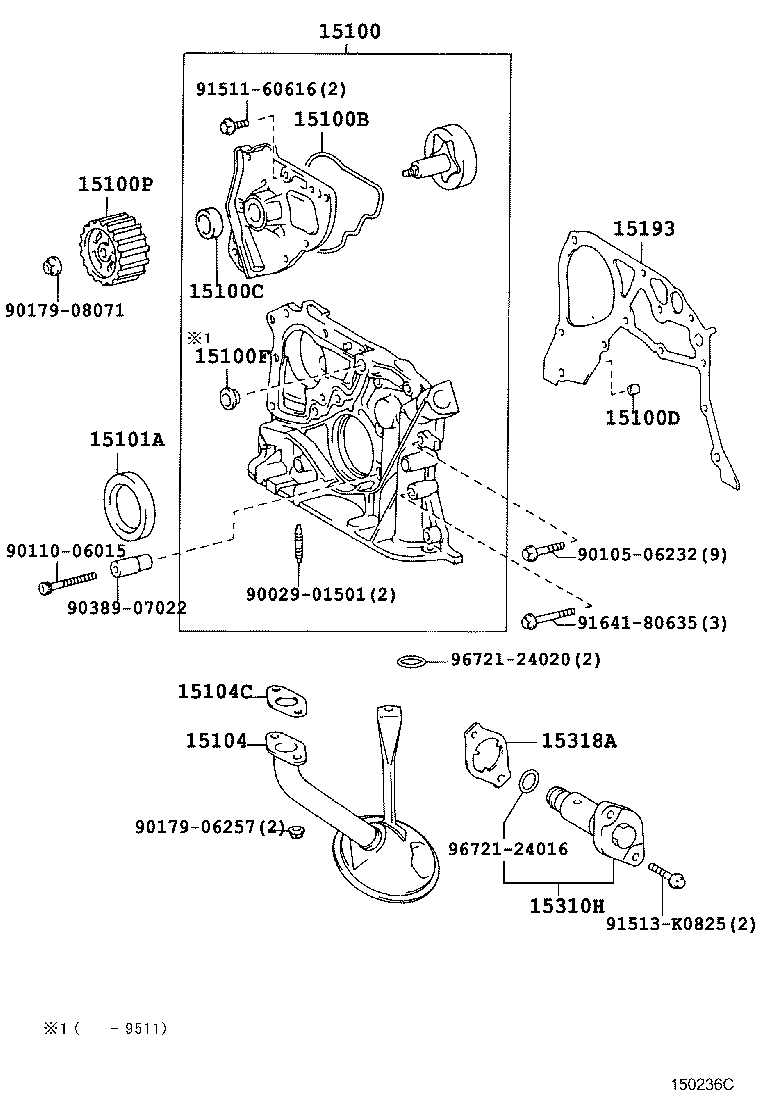

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15100 — Pump Assy, Oil | ||||
| 15100-74010 |
Pump Assy, Oil
1993-11 → 1995-08
ended
|
3SFE,5SFE ST202,204 | — | |
| 15100-74060 |
Pump Assy, Oil
1995-08 → —
|
3SFE,5SFE ST202,204 | — | |
| 15100-88460 |
Pump Assy, Oil
1994-02 → —
|
3SGTE ST205 | — | |
| 15100B — Ring, O(FOR OIL PUMP) | ||||
| 15188-74050 |
Ring, O(FOR OIL PUMP)
1996-08 → —
|
3SFE,5SFE ST202,204 | — | |
| 15188-88382 |
Ring, O(FOR OIL PUMP)
1993-11 → 1996-08
ended
|
3S#,5SFE ST20# | — | |
| 15188-88382 |
Ring, O(FOR OIL PUMP)
1996-08 → —
|
3SGTE ST205 | — | |
| 15100C — Seal(FOR OIL PUMP) | ||||
| 15165-74020 |
Seal(FOR OIL PUMP)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 15165-88382 |
Seal(FOR OIL PUMP)
1994-02 → —
|
3SGTE ST205 | — | |
| 15100D — Pin(FOR OIL PUMP SET) | ||||
| 90253-09001 |
Pin(FOR OIL PUMP SET)
1993-11 → —
|
3S#,5SFE ST20# | — | |
| 15100F — Bush (FOR OIL PUMP) | ||||
| 90029-38302 |
Bush (FOR OIL PUMP)
1993-11 → 1995-11
ended
|
3S#,5SFE ST20# | — | |
| 90029-38302 |
Bush (FOR OIL PUMP)
1995-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 15100P — Pulley, Oil Pump Drive Shaft | ||||
| 13524-74020 |
Pulley, Oil Pump Drive Shaft
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 13524-88460 |
Pulley, Oil Pump Drive Shaft
1994-02 → —
|
3SGTE ST205 | — | |
| 15101A — Seal(FOR CRANKSHAFT) | ||||
| 90311-42026 |
Seal(FOR CRANKSHAFT)
1993-11 → 1996-09
ended
|
3S#,5SFE ST20# | — | |
| 90311-42026 |
Seal(FOR CRANKSHAFT)
1996-09 → —
|
3SGTE ST205 | — | |
| 90311-42032 |
Seal(FOR CRANKSHAFT)
1996-09 → 1997-10
ended
|
3SFE,5SFE ST202,204 | — | |
| 90311-42035 |
Seal(FOR CRANKSHAFT)
1997-10 → —
|
3SFE,5SFE ST202,204 | — | |
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-74090 |
Strainer Sub-assy, Oil
1996-06 → —
|
3SFE,5SFE ST202,204 | — | |
| 15104-88380 |
Strainer Sub-assy, Oil
1993-11 → 1996-06
ended
|
3SFE,5SFE ST202,204 | — | |
| 15104-88461 |
Strainer Sub-assy, Oil
1994-02 → —
|
3SGTE ST205 | — | |
| 15104C — Gasket(FOR OIL STRAINER) | ||||
| 15149-74030 |
Gasket(FOR OIL STRAINER)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 15149-88460 |
Gasket(FOR OIL STRAINER)
1994-02 → —
|
3SGTE ST205 | — | |
| 15193 — Gasket, Oil Pump | ||||
| 15197-74030 |
Gasket, Oil Pump
1993-11 → 1995-08
ended
|
3SFE,5SFE ST202,204 | — | |
| 15197-74040 |
Gasket, Oil Pump
1995-08 → —
|
3SFE,5SFE ST202,204 | — | |
| 15197-88460 |
Gasket, Oil Pump
1994-02 → —
|
3SGTE ST205 | — | |
| 15310H — Regulator Assy, Oil | ||||
| 15310-88460 |
Regulator Assy, Oil
1994-02 → —
|
3SGTE ST205 | — | |
| 15318A — Gasket, Oil Regulator Body | ||||
| 15318-88460 |
Gasket, Oil Regulator Body
1994-02 → —
|
3SGTE ST205 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
