Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

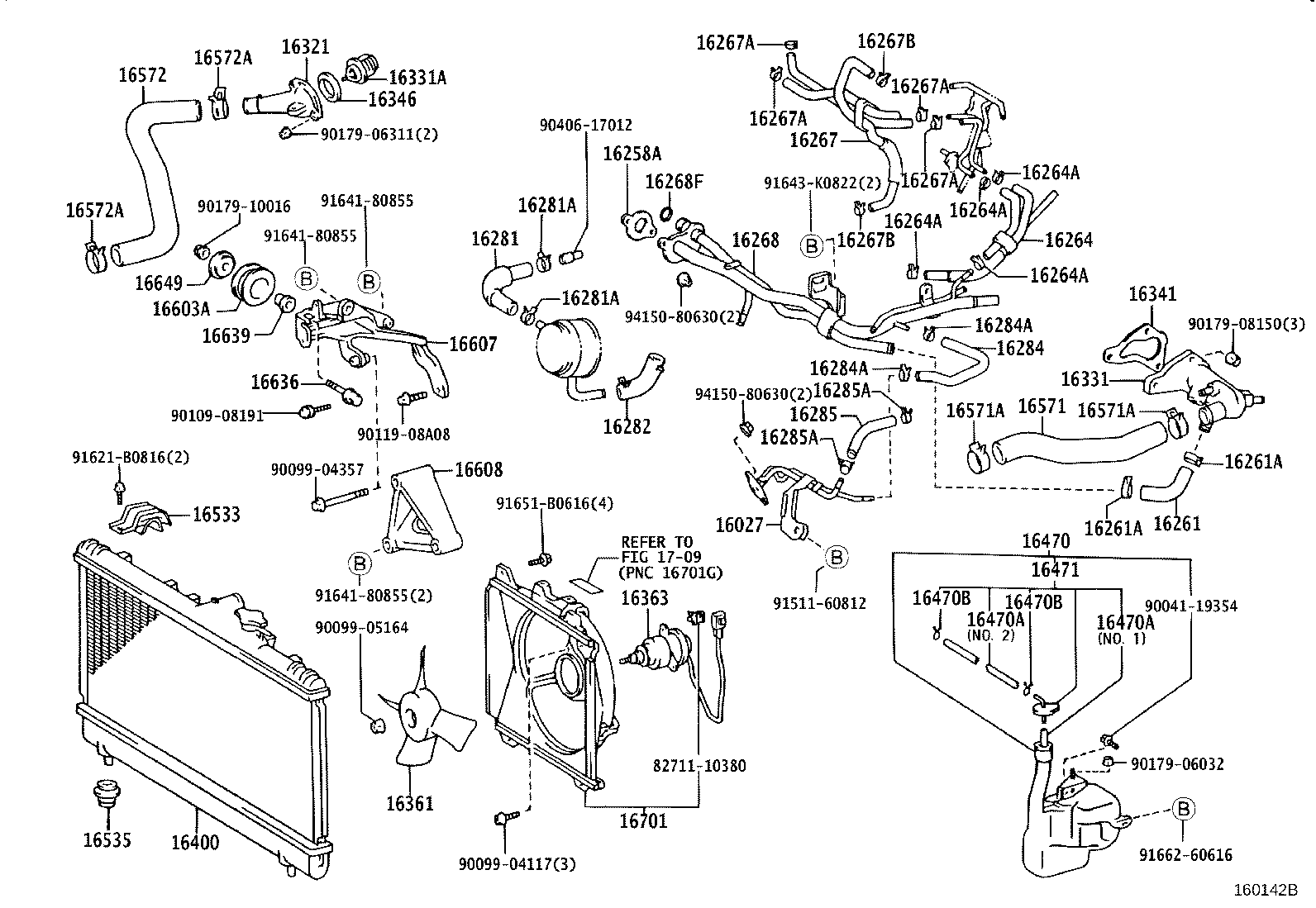

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16027 — Pipe Sub-assy, Turbo Water, NO.1 | ||||
| 16027-88481 |
Pipe Sub-assy, Turbo Water, NO.1
1994-02 → —
|
3SGTE ST205 | — | |
| 16258A — Gasket(FOR HEATER RETURN) | ||||
| 16258-88460 |
Gasket(FOR HEATER RETURN)
1994-02 → —
|
3SGTE ST205 | — | |
| 16261 — Hose, Water By-pass | ||||
| 16261-74010 |
Hose, Water By-pass
1993-11 → 1995-08
ended
|
3SFE,5SFE ST202,204 | — | |
| 16261-74091 note |
Hose, Water By-pass
1994-02 → 1995-08
ended
|
3SGTE ST205 | — | |
| 16261-74100 |
Hose, Water By-pass
1995-08 → —
|
3SFE,5SFE ST202,204 | — | |
| 16261-88460 |
Hose, Water By-pass
1994-02 → —
|
3SGTE ST205 | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 90467-23013 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1994-02 → —
|
3SGTE ST205 | — | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-74030 |
Hose, Water By-pass, NO.2
1993-11 → —
|
5SFE ST204 MTM | — | |
| 16264-74101 |
Hose, Water By-pass, NO.2
1993-11 → —
|
3SFE ST202 GCC | — | |
| 16264-88481 |
Hose, Water By-pass, NO.2
1994-02 → —
|
3SGTE ST205 | — | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13128 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1994-02 → —
|
3SGTE ST205 | — | |
| 90467-20005 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1993-11 → —
|
3SFE,5SFE ST202,204 MTM (ARL,GCC) | — | |
| 16267 — Hose, Water By-pass, NO.3 | ||||
| 16267-74030 |
Hose, Water By-pass, NO.3
1993-11 → —
|
5SFE ST204 MTM | — | |
| 16267-74081 |
Hose, Water By-pass, NO.3
1993-11 → —
|
3SFE ST202 GCC | — | |
| 16267-88480 |
Hose, Water By-pass, NO.3
1994-02 → —
|
3SGTE ST205 | — | |
| 16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
1994-02 → —
|
3SGTE ST205 | — | |
| 90467-20005 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
1993-11 → —
|
3SFE,5SFE ST202,204 MTM (ARL,GCC) | — | |
| 16267B — Clip(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
Clip(FOR WATER BY-PASS HOSE)
1994-02 → —
|
3SGTE ST205 | — | |
| 16268 — Pipe, Water By-pass, NO.1 | ||||
| 16268-74152 |
Pipe, Water By-pass, NO.1
1993-11 → 1995-02
ended
|
3SFE ST202 GEN;5SFE ST204 +1 | — | |
| 16268-74153 |
Pipe, Water By-pass, NO.1
1995-02 → 1995-08
ended
|
3SFE ST202 GEN;5SFE ST204 +1 | — | |
| 16268-74163 |
Pipe, Water By-pass, NO.1
1993-11 → 1995-08
ended
|
3SFE ST202 GCC | — | |
| 16268-74171 |
Pipe, Water By-pass, NO.1
1993-11 → 1995-08
ended
|
5SFE ST204 MTM | — | |
| 16268-74190 |
Pipe, Water By-pass, NO.1
1995-08 → —
|
3SFE ST202 GEN;5SFE ST204 +1 | — | |
| 16268-74200 |
Pipe, Water By-pass, NO.1
1995-08 → —
|
3SFE ST202 GCC | — | |
| 16268-74230 |
Pipe, Water By-pass, NO.1
1995-08 → —
|
5SFE ST204 MTM | — | |
| 16268-88480 |
Pipe, Water By-pass, NO.1
1994-02 → —
|
3SGTE ST205 | — | |
| 16268F — Ring, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24017 |
Ring, O(FOR WATER BY-PASS PIPE)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 96761-24019 |
Ring, O(FOR WATER BY-PASS PIPE)
1994-02 → —
|
3SGTE ST205 | — | |
| 16281 — Hose, Water By-pass, NO.4 | ||||
| 16281-88461 |
Hose, Water By-pass, NO.4
1994-02 → —
|
3SGTE ST205 | — | |
| 16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-22003 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
1994-02 → —
|
3SGTE ST205 | — | |
| 16282 — Hose, Water By-pass, NO.5 | ||||
| 16282-88480 |
Hose, Water By-pass, NO.5
1994-02 → —
|
3SGTE ST205 | — | |
| 16284 — Hose, Turbo Water, NO.1 | ||||
| 16284-88481 |
Hose, Turbo Water, NO.1
1994-02 → —
|
3SGTE ST205 | — | |
| 16284A — Clip(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15004 |
Clip(FOR TURBO WATER HOSE NO.1)
1994-02 → —
|
3SGTE ST205 | — | |
| 16285 — Hose, Turbo Water, NO.2 | ||||
| 16285-88480 |
Hose, Turbo Water, NO.2
1994-02 → —
|
3SGTE ST205 | — | |
| 16285A — Clip(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15004 |
Clip(FOR TURBO WATER HOSE NO.2)
1994-02 → —
|
3SGTE ST205 | — | |
| 16321 — Inlet, Water | ||||
| 16321-74030 |
Inlet, Water
1993-11 → 1995-08
ended
|
3SFE ST202 | — | |
| 16321-74050 |
Inlet, Water
1995-08 → —
|
3SFE ST202 | — | |
| 16321-88381 |
Inlet, Water
1993-11 → —
|
5SFE ST204 | — | |
| 16321-88460 |
Inlet, Water
1994-02 → —
|
3SGTE ST205 | — | |
| 16331 — Outlet, Water | ||||
| 16304-88481 |
Outlet, Water
1994-02 → —
|
3SGTE ST205 | — | |
| 16331-74170 |
Outlet, Water
1993-11 → 1995-08
ended
|
3SFE,5SFE ST202,204 | — | |
| 16331-74210 |
Outlet, Water
1995-08 → 1996-07
ended
|
3SFE,5SFE ST202,204 | — | |
| 16331-74210 |
Outlet, Water
1996-07 → 1997-07
ended
|
5SFE ST204 | — | |
| 16331-74210 note |
Outlet, Water
1996-07 → 1997-07
ended
|
3SFE ST202 | — | |
| 16331-74220 |
Outlet, Water
1996-07 → —
|
3SFE ST202 | — | |
| 16331-74260 note |
Outlet, Water
1997-07 → —
|
3SFE ST202 | — | |
| 16331-74260 |
Outlet, Water
1997-07 → —
|
5SFE ST204 | — | |
| 16331A — Thermostat | ||||
| 90916-03046 note |
Thermostat
1993-11 → 1996-03
ended
|
3SFE ST202 | — | |
| 90916-03075 note |
Thermostat
1993-11 → —
|
5SFE ST204 | — | |
| 90916-03090 note |
Thermostat
1996-03 → —
|
3SFE ST202 | — | |
| 90916-03100 note |
Thermostat
1994-02 → —
|
3SGTE ST205 | — | |
| 16341 — Gasket, Water Outlet | ||||
| 16341-74020 |
Gasket, Water Outlet
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 16341-88460 |
Gasket, Water Outlet
1994-02 → —
|
3SGTE ST205 | — | |
| 16346 — Gasket, Thermostat | ||||
| 16346-17010 |
Gasket, Thermostat
1994-02 → 1997-08
ended
|
3SGTE ST205 | — | |
| 16346-32010 |
Gasket, Thermostat
1997-08 → —
|
3SGTE ST205 | — | |
| 16361 — Fan | ||||
| 16361-64020 |
Fan
1994-02 → —
|
3SGTE ST205 | — | |
| 16361-74060 |
Fan
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 16363 — Motor, Cooling Fan | ||||
| 16363-11020 |
Motor, Cooling Fan
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 16363-74030 |
Motor, Cooling Fan
1994-02 → —
|
3SGTE ST205 | — | |
| 16400 — Radiator Assy | ||||
| 16400-7A060 |
Radiator Assy
1993-11 → —
|
3SFE ST202 MTM GEN | — | |
| 16400-7A070 |
Radiator Assy
1993-11 → —
|
3SFE ST202 ATM | — | |
| 16400-7A080 |
Radiator Assy
1993-11 → —
|
3S#,5SFE ST20# MTM (ARL,GCC) | — | |
| 16400-7A090 |
Radiator Assy
1993-11 → —
|
5SFE ST204 ATM | — | |
| 16470 — Tank Assy, Radiator Reserve | ||||
| 16470-74260 |
Tank Assy, Radiator Reserve
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 16470-74270 |
Tank Assy, Radiator Reserve
1994-02 → —
|
3SGTE ST205 | — | |
| 16470A — Hose OR Pipe(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12066 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1994-02 → —
|
3SGTE ST205 | — | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1993-11 → —
|
3S#,5SFE ST20# | — | |
| 16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
1993-11 → —
|
3S#,5SFE ST20# | — | |
| 16471 — Cap Sub-assy, Reserve Tank | ||||
| 16405-74250 |
Cap Sub-assy, Reserve Tank
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 16405-74260 |
Cap Sub-assy, Reserve Tank
1994-02 → —
|
3SGTE ST205 | — | |
| 16533 — Support, Radiator, Upper | ||||
| 16533-74260 |
Support, Radiator, Upper
1993-11 → —
|
3S#,5SFE ST20# | — | |
| 16535 — Support, Radiator, Lower | ||||
| 90916-04002 |
Support, Radiator, Lower
1993-11 → —
|
3S#,5SFE ST20# | — | |
| 16571 — Hose, Radiator, Inlet | ||||
| 16571-74280 |
Hose, Radiator, Inlet
1993-11 → 1995-08
ended
|
3SFE,5SFE ST202,204 | — | |
| 16571-74290 |
Hose, Radiator, Inlet
1994-02 → —
|
3SGTE ST205 | — | |
| 16571-74340 |
Hose, Radiator, Inlet
1995-08 → —
|
3SFE,5SFE ST202,204 | — | |
| 16571A — Clamp OR Clip, Hose(FOR RADIATOR INLET) | ||||
| 90467-34003 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1993-11 → —
|
3S#,5SFE ST20# | — | |
| 16572 — Hose, Radiator, Outlet | ||||
| 16572-74230 |
Hose, Radiator, Outlet
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 16572-74240 |
Hose, Radiator, Outlet
1994-02 → —
|
3SGTE ST205 | — | |
| 16572A — Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1993-11 → —
|
3S#,5SFE ST20# | — | |
| 16603A — Pulley Sub-assy, Idler, NO.1 | ||||
| 16603-88360 |
Pulley Sub-assy, Idler, NO.1
1994-02 → —
|
3SGTE ST205 | — | |
| 16607 — Bracket Sub-assy, Idler Pulley, NO.1 | ||||
| 16631-88480 |
Bracket Sub-assy, Idler Pulley, NO.1
1994-02 → —
|
3SGTE ST205 | — | |
| 16608 — Bracket Sub-assy, Idler Pulley, NO.2 | ||||
| 16632-74030 |
Bracket Sub-assy, Idler Pulley, NO.2
1994-02 → —
|
3SGTE ST205 | — | |
| 16636 — Shaft, Idler Pully, NO.1 | ||||
| 16636-74020 |
Shaft, Idler Pully, NO.1
1994-02 → —
|
3SGTE ST205 | — | |
| 16639 — Spacer, Idler Pulley | ||||
| 16639-88361 |
Spacer, Idler Pulley
1994-02 → —
|
3SGTE ST205 | — | |
| 16649 — Plate, Idler Pulley Cover | ||||
| 16649-88360 |
Plate, Idler Pulley Cover
1994-02 → —
|
3SGTE ST205 | — | |
| 16701 — Shroud Sub-assy, Fan | ||||
| 16711-74500 |
Shroud Sub-assy, Fan
1993-11 → 1995-05
ended
|
3SFE,5SFE ST202,204 | — | |
| 16711-74501 |
Shroud Sub-assy, Fan
1995-05 → —
|
3SFE,5SFE ST202,204 | — | |
| 16711-74520 |
Shroud Sub-assy, Fan
1994-02 → —
|
3SGTE ST205 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
