Toyota Celica

1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General

Discontinued model Data version 2000-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

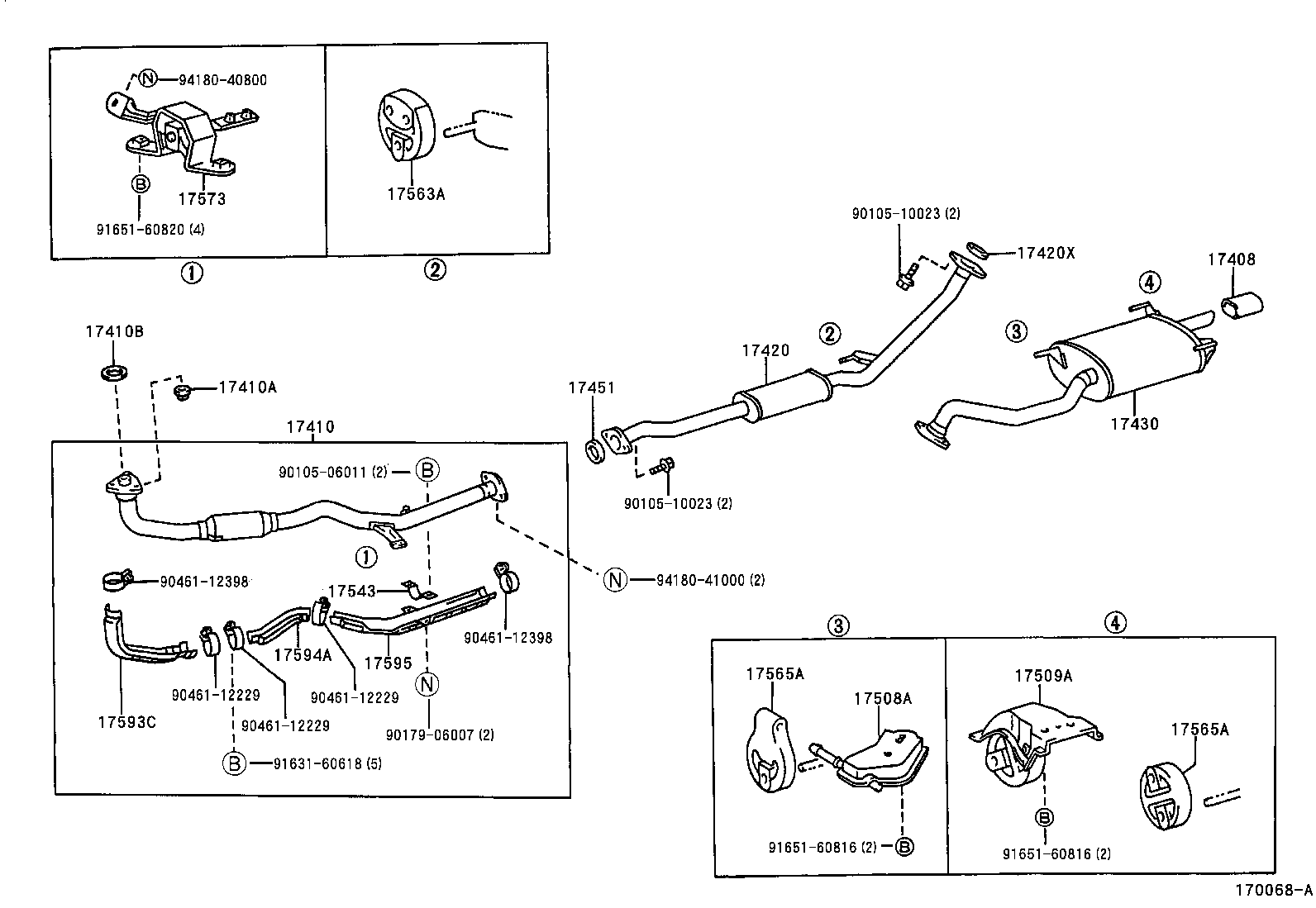

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

39 parts on this figure

Part number	Description	Fitment	Price
17408 — Baffle Sub Assy, Exhaust Tailpipe
17408-74020	Baffle Sub Assy, Exhaust Tailpipe 1993-11 → —	3SFE ST202	—
17408-74030	Baffle Sub Assy, Exhaust Tailpipe 1994-02 → —	3SGTE ST205	—
17408-74060	Baffle Sub Assy, Exhaust Tailpipe 1993-11 → —	5SFE ST204	—
17410 — Pipe Assy, Exhaust, Front
17410-7A230	Pipe Assy, Exhaust, Front 1993-11 → 1994-12 ended	3SFE ST202	—
17410-7A231	Pipe Assy, Exhaust, Front 1994-12 → 1995-04 ended	3SFE ST202	—
17410-7A232	Pipe Assy, Exhaust, Front 1995-04 → —	3SFE ST202	—
17410-7A260	Pipe Assy, Exhaust, Front 1993-11 → —	5SFE ST204	—
17410-7A270	Pipe Assy, Exhaust, Front 1994-02 → 1997-12 ended	3SGTE ST205	—
17410-7A271	Pipe Assy, Exhaust, Front 1997-12 → —	3SGTE ST205	—
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070	Nut, Exhaust Pipe Set Stud Bolt 1993-11 → —	3S#,5SFE ST20#	—
17410B — Gasket, Exhaust Pipe
90917-06061	Gasket, Exhaust Pipe 1993-11 → —	3SFE ST202	—
90917-06066	Gasket, Exhaust Pipe 1993-11 → —	5SFE ST204	—
90917-06068	Gasket, Exhaust Pipe 1994-02 → —	3SGTE ST205	—
17420 — Pipe Assy, Exhaust, Center
17420-74740	Pipe Assy, Exhaust, Center 1993-11 → —	3SFE ST202	—
17420-74760	Pipe Assy, Exhaust, Center 1993-11 → —	5SFE ST204	—
17420-74770	Pipe Assy, Exhaust, Center 1994-02 → —	3SGTE ST205	—
17420X — Gasket, Exhaust Pipe, Center
90917-06039	Gasket, Exhaust Pipe, Center 1993-11 → —	5SFE ST204	—
90917-06045	Gasket, Exhaust Pipe, Center 1993-11 → —	3SFE ST202	—
90917-06054	Gasket, Exhaust Pipe, Center 1994-02 → —	3SGTE ST205	—
17430 — Pipe Assy, Exhaust, Tail
17430-7A320	Pipe Assy, Exhaust, Tail 1993-11 → —	3SFE ST202	—
17430-7A400	Pipe Assy, Exhaust, Tail 1994-02 → —	3SGTE ST205	—
17430-7A450	Pipe Assy, Exhaust, Tail 1993-11 → —	5SFE ST204	—
17451 — Gasket, Exhaust Pipe
90917-06045	Gasket, Exhaust Pipe 1993-11 → —	3SFE,5SFE ST202,204	—
90917-06054	Gasket, Exhaust Pipe 1994-02 → —	3SGTE ST205	—
17508A — Bracket Sub-assy, Exhaust Pipe NO.3 Support
17508-74040	Bracket Sub-assy, Exhaust Pipe NO.3 Support 1994-02 → —	3SGTE ST205	—
17508-74080	Bracket Sub-assy, Exhaust Pipe NO.3 Support 1993-11 → —	3SFE,5SFE ST202,204	—
17509A — Bracket Sub-assy, Exhaust Pipe NO.4 Support
17509-74090	Bracket Sub-assy, Exhaust Pipe NO.4 Support 1994-02 → —	3SGTE ST205	—
17509-74140	Bracket Sub-assy, Exhaust Pipe NO.4 Support 1993-11 → —	3SFE,5SFE ST202,204	—
17543 — Stay, Exhaust Pipe Protector, NO.3
17543-13020	Stay, Exhaust Pipe Protector, NO.3 1993-11 → —	5SFE ST204	—
17563A — Support, Exhaust Pipe, NO.3
17565-63020	Support, Exhaust Pipe, NO.3 1994-02 → —	3SGTE ST205	—
17565-64180	Support, Exhaust Pipe, NO.3 1993-11 → —	3SFE,5SFE ST202,204	—
17565A — Support, Exhaust Pipe, NO.4
17565-16230 note	Support, Exhaust Pipe, NO.4 1993-11 → —	3SFE,5SFE ST202,204	—
17565-74290 note	Support, Exhaust Pipe, NO.4 1993-11 → —	3SFE,5SFE ST202,204	—
17565-74290	Support, Exhaust Pipe, NO.4 1994-02 → —	3SGTE ST205	—
17573 — Bracket, Exhaust Pipe NO.1 Support, Lower
17573-74010	Bracket, Exhaust Pipe NO.1 Support, Lower 1994-02 → —	3SGTE ST205	—
17573-74150	Bracket, Exhaust Pipe NO.1 Support, Lower 1993-11 → —	3SFE,5SFE ST202,204	—
17593C — Protector, Exhaust Pipe, Lower NO.1
17593-74600	Protector, Exhaust Pipe, Lower NO.1 1993-11 → —	5SFE ST204	—
17594A — Protector, Exhaust Pipe, Lower NO.2
17594-74530	Protector, Exhaust Pipe, Lower NO.2 1993-11 → —	5SFE ST204	—
17595 — Protector, Exhaust Pipe, Lower NO.3
17595-74370	Protector, Exhaust Pipe, Lower NO.3 1993-11 → —	5SFE ST204	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
