Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

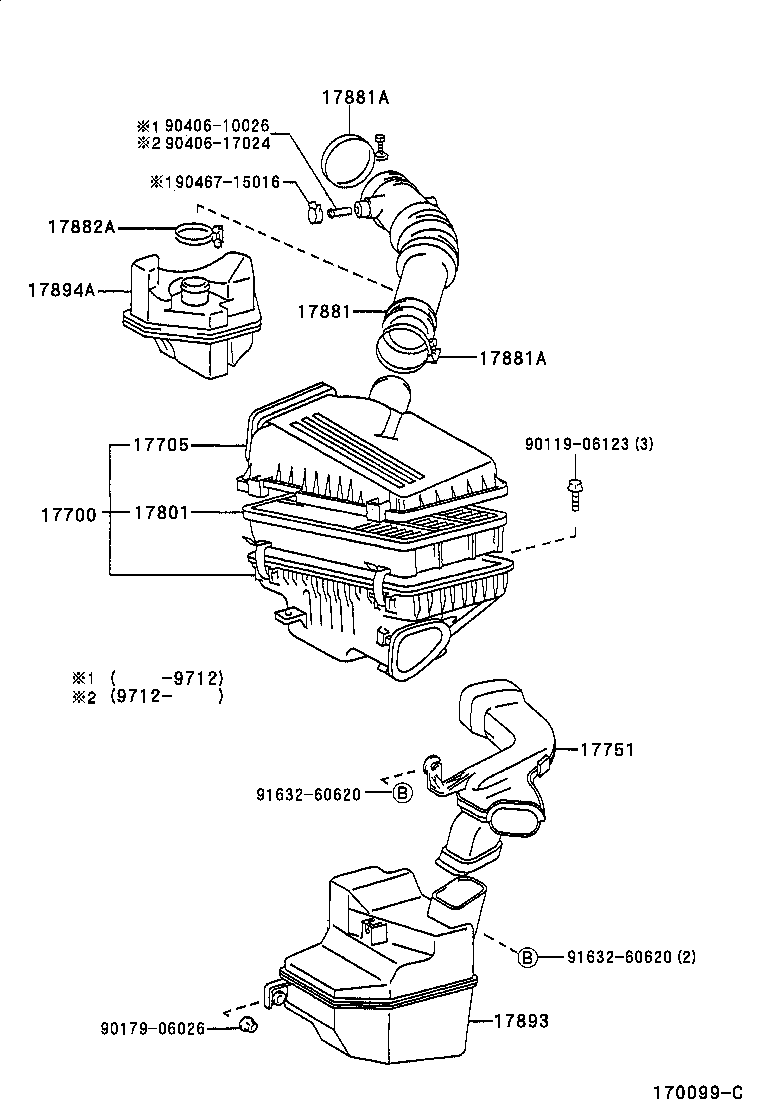

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-74480 |
Cleaner Assy, Air
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 17700-74490 |
Cleaner Assy, Air
1994-02 → —
|
3SGTE ST205 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-74320 |
Cap Sub-assy, Air Cleaner
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 17705-74330 |
Cap Sub-assy, Air Cleaner
1994-02 → —
|
3SGTE ST205 | — | |
| 17751 — Inlet, Air Cleaner, NO.1 | ||||
| 17751-74030 |
Inlet, Air Cleaner, NO.1
1993-11 → 1995-01
ended
|
3S#,5SFE ST20# | — | |
| 17751-74040 |
Inlet, Air Cleaner, NO.1
1995-01 → —
|
3S#,5SFE ST20# | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-74060 |
Element Sub-assy, Air Cleaner Filter
1993-11 → —
|
3S#,5SFE ST20# | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17659-88381 note |
Hose, Air Cleaner, NO.1
1994-02 → —
|
3SGTE ST205 | — | |
| 17881-74520 |
Hose, Air Cleaner, NO.1
1993-11 → 1995-08
ended
|
3SFE,5SFE ST202,204 | — | |
| 17881-74590 note |
Hose, Air Cleaner, NO.1
1994-02 → —
|
3SGTE ST205 | — | |
| 17881-74690 |
Hose, Air Cleaner, NO.1
1995-08 → 1997-12
ended
|
3SFE,5SFE ST202,204 | — | |
| 17881-74691 |
Hose, Air Cleaner, NO.1
1997-12 → —
|
3SFE,5SFE ST202,204 | — | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-67004 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1994-02 → —
|
3SGTE ST205 | — | |
| 90929-01340 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1994-02 → —
|
3SGTE ST205 | — | |
| 96111-10710 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 17882A — Clamp(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10400 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 17893 — Resonator, Intake Air | ||||
| 17893-74290 |
Resonator, Intake Air
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 17893-74300 |
Resonator, Intake Air
1994-02 → —
|
3SGTE ST205 | — | |
| 17894A — Resonator, Intake Air, NO.2 | ||||
| 17894-74040 |
Resonator, Intake Air, NO.2
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
