Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

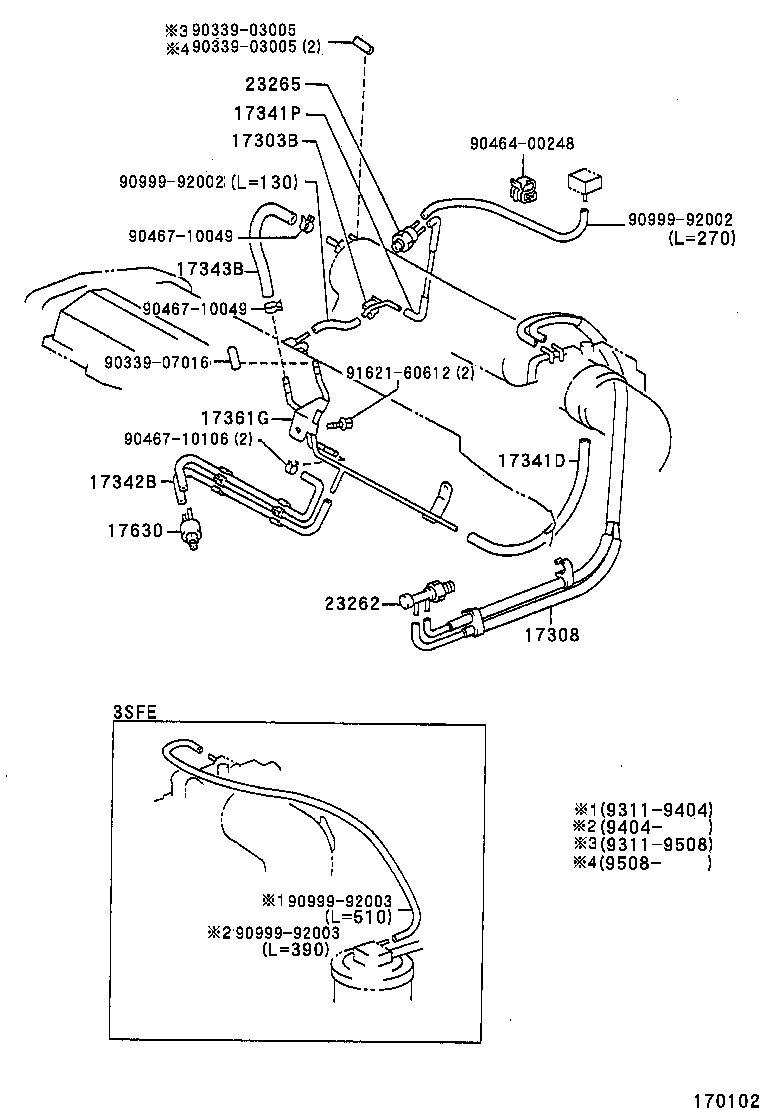

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17303B — Pipe Sub-assy, Air, NO.1 | ||||
| 17303-74040 |
Pipe Sub-assy, Air, NO.1
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 17308 — Hose Sub-assy, Vacuum(FOR IDLE-UP) | ||||
| 17308-74340 |
Hose Sub-assy, Vacuum(FOR IDLE-UP)
1993-11 → 1995-08
ended
|
5SFE ST204 | — | |
| 17308-74510 |
Hose Sub-assy, Vacuum(FOR IDLE-UP)
1997-12 → —
|
5SFE ST204 | — | |
| 17308-74520 |
Hose Sub-assy, Vacuum(FOR IDLE-UP)
1995-08 → 1997-12
ended
|
5SFE ST204 | — | |
| 17341D — Hose, NO.1(FOR IDLE-UP) | ||||
| 17341-74340 |
Hose, NO.1(FOR IDLE-UP)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 17341P — Hose, Air | ||||
| 17341-74350 |
Hose, Air
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 17341-74610 |
Hose, Air
1994-02 → 1994-04
ended
|
3SGTE ST205 | — | |
| 17342B — Hose, NO.2(FOR IDLE-UP) | ||||
| 17342-88480 |
Hose, NO.2(FOR IDLE-UP)
1994-02 → —
|
3SGTE ST205 | — | |
| 17343-74100 |
Hose, NO.2(FOR IDLE-UP)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 17343B — Hose, NO.3(FOR IDLE-UP) | ||||
| 17343-74040 |
Hose, NO.3(FOR IDLE-UP)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 17343-88380 |
Hose, NO.3(FOR IDLE-UP)
1994-02 → —
|
3SGTE ST205 | — | |
| 17361G — Tube, Air(FOR IDLE-UP) | ||||
| 17361-74100 |
Tube, Air(FOR IDLE-UP)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 17361-88480 |
Tube, Air(FOR IDLE-UP)
1994-02 → —
|
3SGTE ST205 | — | |
| 17630 — Valve Assy, Air Control | ||||
| 17630-70020 |
Valve Assy, Air Control
1993-11 → —
|
3S#,5SFE ST20# | — | |
| 23262 — Valve, Bimetal Vacuum Switching, NO.1 | ||||
| 90925-05068 |
Valve, Bimetal Vacuum Switching, NO.1
1993-11 → —
|
3SGTE,5SFE ST204,205 | — | |
| 23265 — Filter, Gas, NO.1 | ||||
| 90917-11023 |
Filter, Gas, NO.1
1993-11 → 1997-04
ended
|
3SFE,5SFE ST202,204 | — | |
| 90917-11031 |
Filter, Gas, NO.1
1994-02 → —
|
3SGTE ST205 | — | |
| 90917-11039 |
Filter, Gas, NO.1
1997-05 → —
|
3SFE,5SFE ST202,204 | — | |
| 90917-11042 |
Filter, Gas, NO.1
1997-04 → 1997-05
ended
|
3SFE,5SFE ST202,204 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
