Toyota Celica

1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General

Discontinued model Data version 2000-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

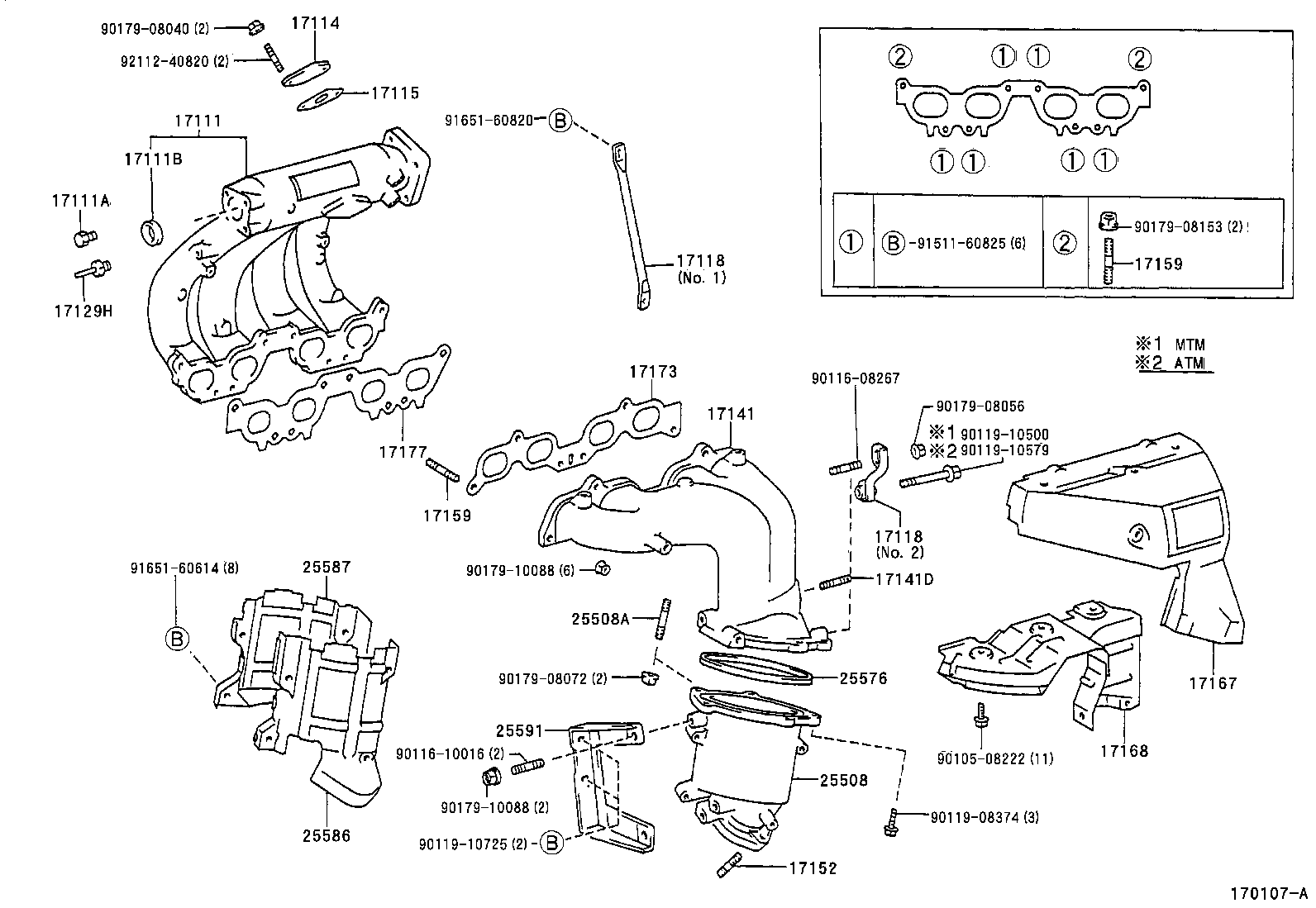

52 parts on this figure

Part number	Description	Fitment	Price
17111 — Manifold, Intake
17101-74180	Manifold, Intake 1993-11 → 1995-08 ended	3SFE,5SFE ST202,204	—
17101-74280	Manifold, Intake 1995-08 → —	3SFE,5SFE ST202,204	—
17101-88482	Manifold, Intake 1994-02 → —	3SGTE ST205	—
17101-88483 note	Manifold, Intake 1994-02 → 1994-04 ended	3SGTE ST205	—
17111A — Plug, NO.1
90345-51006	Plug, NO.1 1993-11 → —	3SFE,5SFE ST202,204	—
17111B — Plug, NO.2
96411-44000	Plug, NO.2 1993-11 → —	3SFE,5SFE ST202,204	—
17114 — Plate, Intake Manifold Hole Cover
25617-74020	Plate, Intake Manifold Hole Cover 1993-11 → 1997-12 ended	3SFE,5SFE ST202,204	—
25617-74020	Plate, Intake Manifold Hole Cover 1997-12 → —	3SFE ST202	—
17115 — Gasket, Intake Manifold Hole Cover
25627-74011	Gasket, Intake Manifold Hole Cover 1993-11 → 1997-12 ended	3SFE,5SFE ST202,204	—
25627-74011	Gasket, Intake Manifold Hole Cover 1997-12 → —	3SFE ST202	—
17118 — Stay, Manifold
17118-74040 note	Stay, Manifold 1993-11 → —	3SFE ST202	—
17118-74180 note	Stay, Manifold 1993-11 → —	3SFE,5SFE ST202,204	—
17118-74300 note	Stay, Manifold 1995-08 → —	5SFE ST204	—
17118-88382	Stay, Manifold 1994-02 → 1994-03 ended	3SGTE ST205	—
17118-88480	Stay, Manifold 1994-03 → —	3SGTE ST205	—
17129H — Union, NO.4
90404-51026	Union, NO.4 1993-11 → —	3SFE,5SFE ST202,204	—
17141 — Manifold, Exhaust
17140-88480	Manifold, Exhaust 1994-02 → —	3SGTE ST205	—
17140-88481 note	Manifold, Exhaust 1994-02 → 1994-04 ended	3SGTE ST205	—
17141-74041	Manifold, Exhaust 1993-11 → —	5SFE ST204	—
17141-74170	Manifold, Exhaust 1993-11 → —	3SFE ST202	—
17141D — Bolt, Stud(FOR OXYGEN SENSOR)
90116-08253	Bolt, Stud(FOR OXYGEN SENSOR) 1993-11 → —	5SFE ST204	—
90116-08326	Bolt, Stud(FOR OXYGEN SENSOR) 1994-02 → —	3SGTE ST205	—
17152 — Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058	Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) 1993-11 → —	3SFE,5SFE ST202,204	—
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90116-08242 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1994-02 → —	3SGTE ST205	—
90116-10063 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1993-11 → —	3SFE,5SFE ST202,204	—
90116-10127 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1994-02 → —	3SGTE ST205	—
90116-10169 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1994-02 → —	3SGTE ST205	—
92122-60822 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1993-11 → —	3SFE,5SFE ST202,204	—
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-74140	Insulator, Exhaust Manifold Heat, NO.1 1993-11 → 1994-03 ended	5SFE ST204	—
17167-74141	Insulator, Exhaust Manifold Heat, NO.1 1994-03 → —	5SFE ST204	—
17167-74210	Insulator, Exhaust Manifold Heat, NO.1 1993-11 → 1994-03 ended	3SFE ST202	—
17167-74211	Insulator, Exhaust Manifold Heat, NO.1 1994-03 → —	3SFE ST202	—
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-74020	Insulator, Exhaust Manifold Heat, NO.2 1993-11 → —	5SFE ST204	—
17168-74110	Insulator, Exhaust Manifold Heat, NO.2 1993-11 → —	3SFE ST202	—
17168-88480	Insulator, Exhaust Manifold Heat, NO.2 1994-02 → —	3SGTE ST205	—
17173 — Gasket, Exhaust Manifold TO Head
17173-74040	Gasket, Exhaust Manifold TO Head 1993-11 → —	3SFE,5SFE ST202,204	—
17173-88480	Gasket, Exhaust Manifold TO Head 1994-02 → 1997-04 ended	3SGTE ST205	—
17173-88580	Gasket, Exhaust Manifold TO Head 1997-04 → —	3SGTE ST205	—
17177 — Gasket, Intake Manifold TO Head, NO.1
17177-74070	Gasket, Intake Manifold TO Head, NO.1 1993-11 → —	3SFE,5SFE ST202,204	—
17177-88460	Gasket, Intake Manifold TO Head, NO.1 1994-02 → —	3SGTE ST205	—
25508 — Converter Sub-assy, Manifold
25051-74040	Converter Sub-assy, Manifold 1994-02 → —	3SGTE ST205	—
25508-74090	Converter Sub-assy, Manifold 1993-11 → 1995-08 ended	5SFE ST204	—
25508-74230	Converter Sub-assy, Manifold 1995-08 → —	5SFE ST204	—
25508A — Bolt, Stud(FOR MANIFOLD CONVERTER)
90116-08171	Bolt, Stud(FOR MANIFOLD CONVERTER) 1993-11 → —	3SGTE,5SFE ST204,205	—
25576 — Gasket, Manifold Converter
25576-74030	Gasket, Manifold Converter 1993-11 → —	3SGTE,5SFE ST204,205	—
25586 — Insulator, Manifold Converter, NO.1
25586-74011	Insulator, Manifold Converter, NO.1 1993-11 → 1997-09 ended	5SFE ST204	—
25586-74040	Insulator, Manifold Converter, NO.1 1994-02 → —	3SGTE ST205	—
25586-74060	Insulator, Manifold Converter, NO.1 1997-09 → —	5SFE ST204	—
25587 — Insulator, Manifold Converter, NO.2
25587-74011	Insulator, Manifold Converter, NO.2 1993-11 → 1997-09 ended	5SFE ST204	—
25587-74040	Insulator, Manifold Converter, NO.2 1994-02 → —	3SGTE ST205	—
25587-74060	Insulator, Manifold Converter, NO.2 1997-09 → —	5SFE ST204	—
25591 — Bracket, Manifold Support
25591-74011	Bracket, Manifold Support 1993-11 → —	5SFE ST204	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
