Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

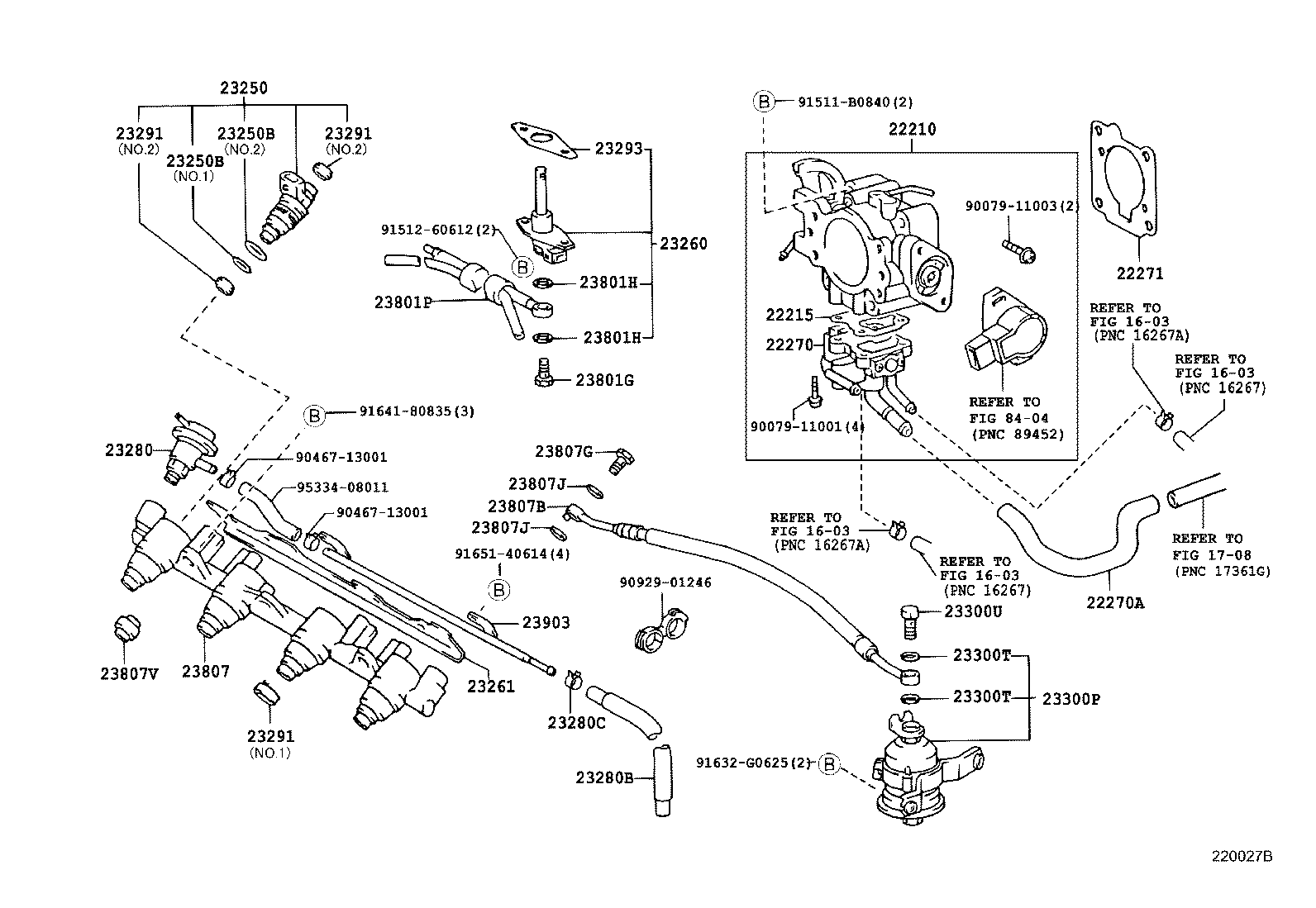

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 22210 — Body Assy, Throttle | ||||
| 22210-7A090 |
Body Assy, Throttle
1994-02 → —
|
3SGTE ST205 | — | |
| 22210-7A120 |
Body Assy, Throttle
1993-11 → 1994-04
ended
|
3SFE ST202 MTM | — | |
| 22210-7A121 |
Body Assy, Throttle
1994-04 → 1995-08
ended
|
3SFE ST202 MTM | — | |
| 22210-7A130 |
Body Assy, Throttle
1993-11 → 1994-04
ended
|
3SFE ST202 ATM | — | |
| 22210-7A131 |
Body Assy, Throttle
1994-04 → 1995-08
ended
|
3SFE ST202 ATM | — | |
| 22210-7A140 |
Body Assy, Throttle
1993-11 → 1995-08
ended
|
5SFE ST204 MTM | — | |
| 22210-7A150 |
Body Assy, Throttle
1993-11 → 1995-08
ended
|
5SFE ST204 ATM | — | |
| 22210-7A310 |
Body Assy, Throttle
1996-01 → —
|
3SFE ST202 MTM | — | |
| 22210-7A450 |
Body Assy, Throttle
1995-08 → 1996-01
ended
|
3SFE ST202 MTM | — | |
| 22210-7A460 |
Body Assy, Throttle
1995-08 → —
|
3SFE ST202 ATM | — | |
| 22210-7A470 |
Body Assy, Throttle
1995-08 → —
|
5SFE ST204 MTM | — | |
| 22210-7A480 |
Body Assy, Throttle
1995-08 → —
|
5SFE ST204 ATM | — | |
| 22215 — Gasket, Throttle Body Cover | ||||
| 22215-74380 |
Gasket, Throttle Body Cover
1994-02 → —
|
3SGTE ST205 | — | |
| 22215-74400 |
Gasket, Throttle Body Cover
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 22270 — Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) | ||||
| 22270-74140 |
Valve Assy, Idle Speed Control(FOR THLOTTLE BODY)
1996-01 → —
|
3SFE ST202 MTM | — | |
| 22270-74190 |
Valve Assy, Idle Speed Control(FOR THLOTTLE BODY)
1993-11 → —
|
5SFE ST204 ATM | — | |
| 22270-74200 |
Valve Assy, Idle Speed Control(FOR THLOTTLE BODY)
1993-11 → —
|
5SFE ST204 MTM | — | |
| 22270-74230 |
Valve Assy, Idle Speed Control(FOR THLOTTLE BODY)
1994-02 → —
|
3SGTE ST205 | — | |
| 22270-74240 |
Valve Assy, Idle Speed Control(FOR THLOTTLE BODY)
1993-11 → 1996-01
ended
|
3SFE ST202 MTM | — | |
| 22270-74250 |
Valve Assy, Idle Speed Control(FOR THLOTTLE BODY)
1993-11 → —
|
3SFE ST202 ATM | — | |
| 22270A — Hose, Air, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 17341-88480 |
Hose, Air, NO.1(FOR IDLE SPEED CONTROL VALVE)
1994-02 → —
|
3SGTE ST205 | — | |
| 22271 — Gasket, Throttle Body | ||||
| 22271-74022 |
Gasket, Throttle Body
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 22271-88480 |
Gasket, Throttle Body
1994-02 → —
|
3SGTE ST205 | — | |
| 23250 — Injector Assy, Fuel | ||||
| 23209-74100 |
Injector Assy, Fuel
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 23209-79065 |
Injector Assy, Fuel
1994-02 → —
|
3SGTE ST205 | — | |
| 23250B — Ring, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
Ring, O(FOR FUEL INJECTOR)
1993-11 → 1998-12
ended
|
3SFE,5SFE ST202,204 | — | |
| 90301-07024 |
Ring, O(FOR FUEL INJECTOR)
1998-12 → —
|
3SFE,5SFE ST202,204 | — | |
| 90301-14006 note |
Ring, O(FOR FUEL INJECTOR)
1994-02 → —
|
3SGTE ST205 | — | |
| 90301-17007 note |
Ring, O(FOR FUEL INJECTOR)
1994-02 → —
|
3SGTE ST205 | — | |
| 23260 — Injector Assy, Cold Start Fuel | ||||
| 23260-79175 |
Injector Assy, Cold Start Fuel
1994-02 → 1995-08
ended
|
3SGTE ST205 | — | |
| 23261 — Cover, Injector | ||||
| 23261-88480 |
Cover, Injector
1994-02 → —
|
3SGTE ST205 | — | |
| 23280 — Regulator Assy, Fuel Pressure | ||||
| 23280-74100 |
Regulator Assy, Fuel Pressure
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 23280-74130 |
Regulator Assy, Fuel Pressure
1994-02 → —
|
3SGTE ST205 | — | |
| 23280B — Hose, Fuel Pressure Regulator Return | ||||
| 90447-12146 |
Hose, Fuel Pressure Regulator Return
1994-02 → —
|
3SGTE ST205 | — | |
| 23280C — Clamp OR Clip(FOR FUEL PRESSURE REGULATOR RETURN HOSE) | ||||
| 90467-11065 |
Clamp OR Clip(FOR FUEL PRESSURE REGULATOR RETURN HOSE)
1994-02 → —
|
3SGTE ST205 | — | |
| 23291 — Insulator, Injector Vibration | ||||
| 23291-41010 |
Insulator, Injector Vibration
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 23291-75010 note |
Insulator, Injector Vibration
1994-02 → —
|
3SGTE ST205 | — | |
| 23291-88480 note |
Insulator, Injector Vibration
1994-02 → —
|
3SGTE ST205 | — | |
| 23293 — Gasket, Cold Start Injector | ||||
| 23293-88381 |
Gasket, Cold Start Injector
1994-02 → 1994-04
ended
|
3SGTE ST205 | — | |
| 23300P — Filter, Fuel(FOR EFI) | ||||
| 23300-79425 |
Filter, Fuel(FOR EFI)
1993-11 → —
|
3SGTE,5SFE ST204,205 | — | |
| 23300-79435 |
Filter, Fuel(FOR EFI)
1993-11 → —
|
3SFE ST202 | — | |
| 23300T — Gasket(FOR FUEL FILTER) | ||||
| 90430-12026 |
Gasket(FOR FUEL FILTER)
1993-11 → —
|
3S#,5SFE ST20# | — | |
| 23300U — Bolt, Union(FOR FUEL FILTER) | ||||
| 90401-12097 |
Bolt, Union(FOR FUEL FILTER)
1993-11 → 1996-02
ended
|
3S#,5SFE ST20# | — | |
| 96341-11200 |
Bolt, Union(FOR FUEL FILTER)
1996-02 → —
|
3S#,5SFE ST20# | — | |
| 23801G — Bolt, Union(FOR FUEL PIPE) | ||||
| 90401-08003 |
Bolt, Union(FOR FUEL PIPE)
1994-02 → 1994-04
ended
|
3SGTE ST205 | — | |
| 90401-08004 |
Bolt, Union(FOR FUEL PIPE)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 23801H — Gasket(FOR FUEL PIPE) | ||||
| 90430-08012 |
Gasket(FOR FUEL PIPE)
1994-02 → 1994-04
ended
|
3SGTE ST205 | — | |
| 90430-08014 |
Gasket(FOR FUEL PIPE)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 23801P — Pipe Sub-assy, Fuel, NO.1 | ||||
| 23801-88480 |
Pipe Sub-assy, Fuel, NO.1
1994-02 → 1994-04
ended
|
3SGTE ST205 | — | |
| 23807 — Pipe Sub-assy, Fuel Delivery | ||||
| 23807-74060 |
Pipe Sub-assy, Fuel Delivery
1993-11 → 1995-08
ended
|
3SFE,5SFE ST202,204 | — | |
| 23807-88480 |
Pipe Sub-assy, Fuel Delivery
1994-02 → —
|
3SGTE ST205 | — | |
| 23814-74110 |
Pipe Sub-assy, Fuel Delivery
1995-08 → —
|
3SFE,5SFE ST202,204 | — | |
| 23807B — Hose, Fuel Delivery Pipe | ||||
| 23271-74450 |
Hose, Fuel Delivery Pipe
1993-11 → 1995-08
ended
|
3SFE,5SFE ST202,204 | — | |
| 23271-74550 |
Hose, Fuel Delivery Pipe
1995-08 → —
|
3SFE,5SFE ST202,204 | — | |
| 90923-01404 |
Hose, Fuel Delivery Pipe
1994-02 → —
|
3SGTE ST205 | — | |
| 23807G — Bolt, Union Pipe Fuel Delivary Inlet | ||||
| 90401-12097 |
Bolt, Union Pipe Fuel Delivary Inlet
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 96341-11200 |
Bolt, Union Pipe Fuel Delivary Inlet
1996-06 → —
|
3SGTE ST205 | — | |
| 23807J — Gasket, Pipe Fuel Delivary Inlet | ||||
| 90430-12026 |
Gasket, Pipe Fuel Delivary Inlet
1994-02 → —
|
3SGTE ST205 | — | |
| 23807V — Spacer, NO.1(FOR DELIVERY PIPE) | ||||
| 90560-11020 |
Spacer, NO.1(FOR DELIVERY PIPE)
1993-11 → 1995-08
ended
|
3SFE,5SFE ST202,204 | — | |
| 90561-08050 |
Spacer, NO.1(FOR DELIVERY PIPE)
1994-02 → —
|
3SGTE ST205 | — | |
| 90561-08053 |
Spacer, NO.1(FOR DELIVERY PIPE)
1995-08 → —
|
3SFE,5SFE ST202,204 | — | |
| 23903 — Tube Sub-assy, Fuel, NO.3 | ||||
| 23903-88480 |
Tube Sub-assy, Fuel, NO.3
1994-02 → —
|
3SGTE ST205 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
