Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

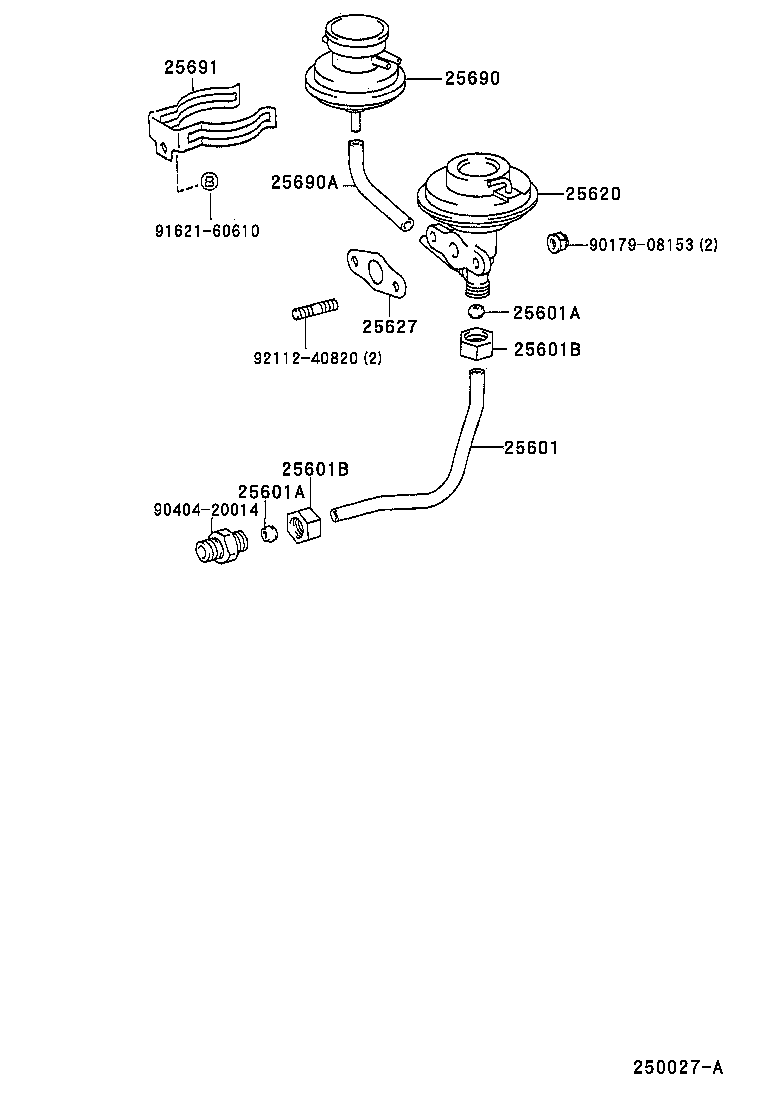

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 25601 — Pipe Sub-assy, Egr, NO.1 | ||||
| 25601-88480 |
Pipe Sub-assy, Egr, NO.1
1994-02 → —
|
3SGTE ST205 | — | |
| 25611-74030 |
Pipe Sub-assy, Egr, NO.1
1997-12 → —
|
5SFE ST204 | — | |
| 25601A — Sleeve, Ball, Egr Pipe, NO.1 | ||||
| 90410-12042 |
Sleeve, Ball, Egr Pipe, NO.1
1994-02 → —
|
3SGTE ST205 | — | |
| 90410-12042 |
Sleeve, Ball, Egr Pipe, NO.1
1997-12 → —
|
5SFE ST204 | — | |
| 25601B — Nut, Union, Egr Pipe, NO.1 | ||||
| 90402-20009 |
Nut, Union, Egr Pipe, NO.1
1994-02 → —
|
3SGTE ST205 | — | |
| 90402-20009 note |
Nut, Union, Egr Pipe, NO.1
1997-12 → —
|
5SFE ST204 | — | |
| 90402-20073 note |
Nut, Union, Egr Pipe, NO.1
1997-12 → —
|
5SFE ST204 | — | |
| 25620 — Valve Assy, Egr | ||||
| 25620-74270 |
Valve Assy, Egr
1994-02 → —
|
3SGTE ST205 | — | |
| 25620-74300 |
Valve Assy, Egr
1997-12 → —
|
5SFE ST204 MTM | — | |
| 25620-74310 |
Valve Assy, Egr
1997-12 → —
|
5SFE ST204 ATM | — | |
| 25627 — Gasket, Egr Valve | ||||
| 25627-74011 |
Gasket, Egr Valve
1997-12 → —
|
5SFE ST204 | — | |
| 25627-74060 |
Gasket, Egr Valve
1994-02 → —
|
3SGTE ST205 | — | |
| 25690 — Modulator Assy, Egr Vacuum | ||||
| 25690-88480 |
Modulator Assy, Egr Vacuum
1994-02 → —
|
3SGTE ST205 | — | |
| 25870-74090 |
Modulator Assy, Egr Vacuum
1997-12 → —
|
5SFE ST204 | — | |
| 25690A — Hose(FOR EGR VACUUM MODULATOR) | ||||
| 25695-88480 |
Hose(FOR EGR VACUUM MODULATOR)
1994-02 → —
|
3SGTE ST205 | — | |
| 90445-11065 |
Hose(FOR EGR VACUUM MODULATOR)
1997-12 → —
|
5SFE ST204 | — | |
| 25691 — Bracket, Egr Vacuum Modulator | ||||
| 25691-74080 |
Bracket, Egr Vacuum Modulator
1997-12 → —
|
5SFE ST204 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
